Manual Transmission/Transaxle

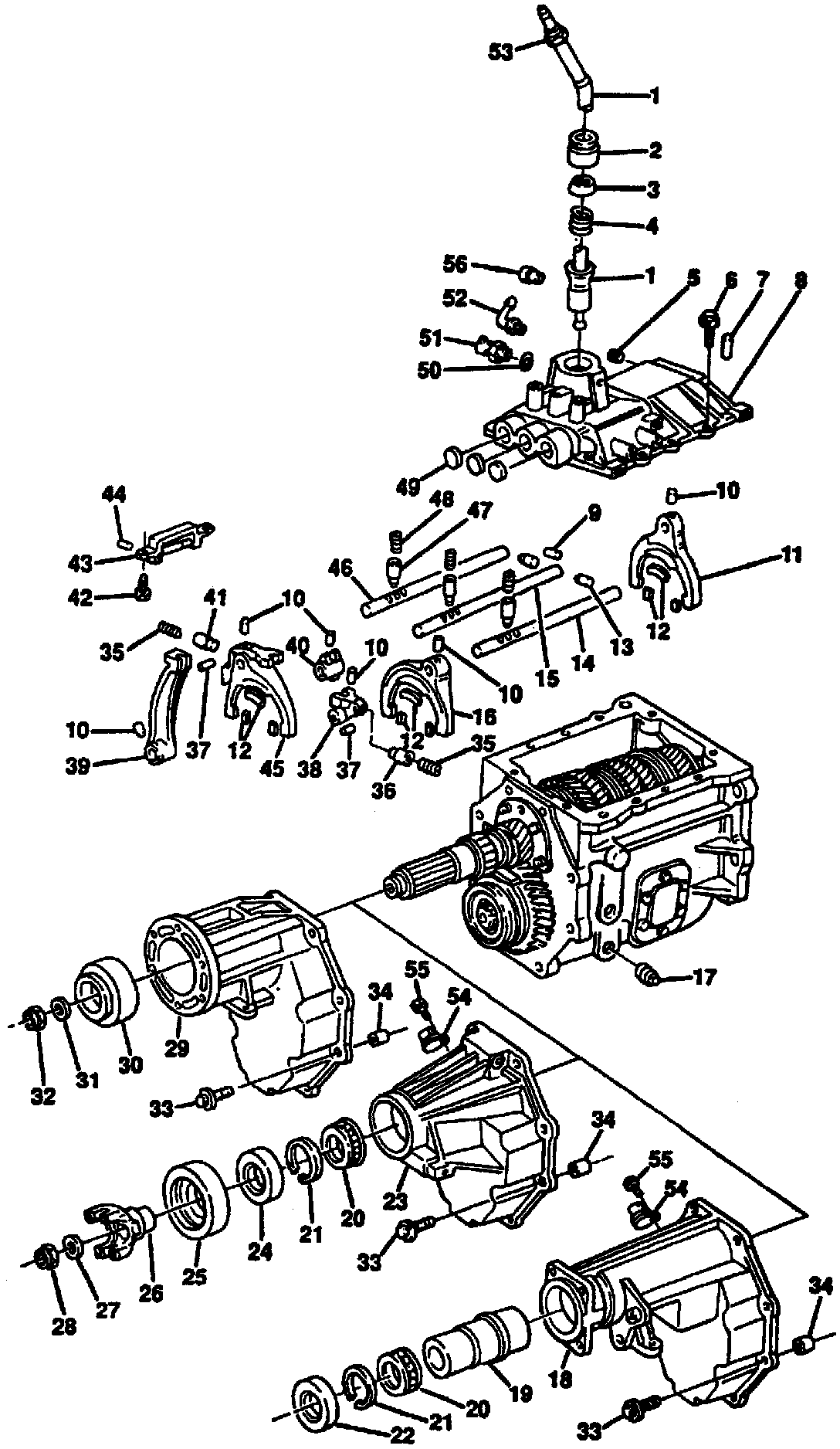

Fig. 1 (part 1 Of 2):

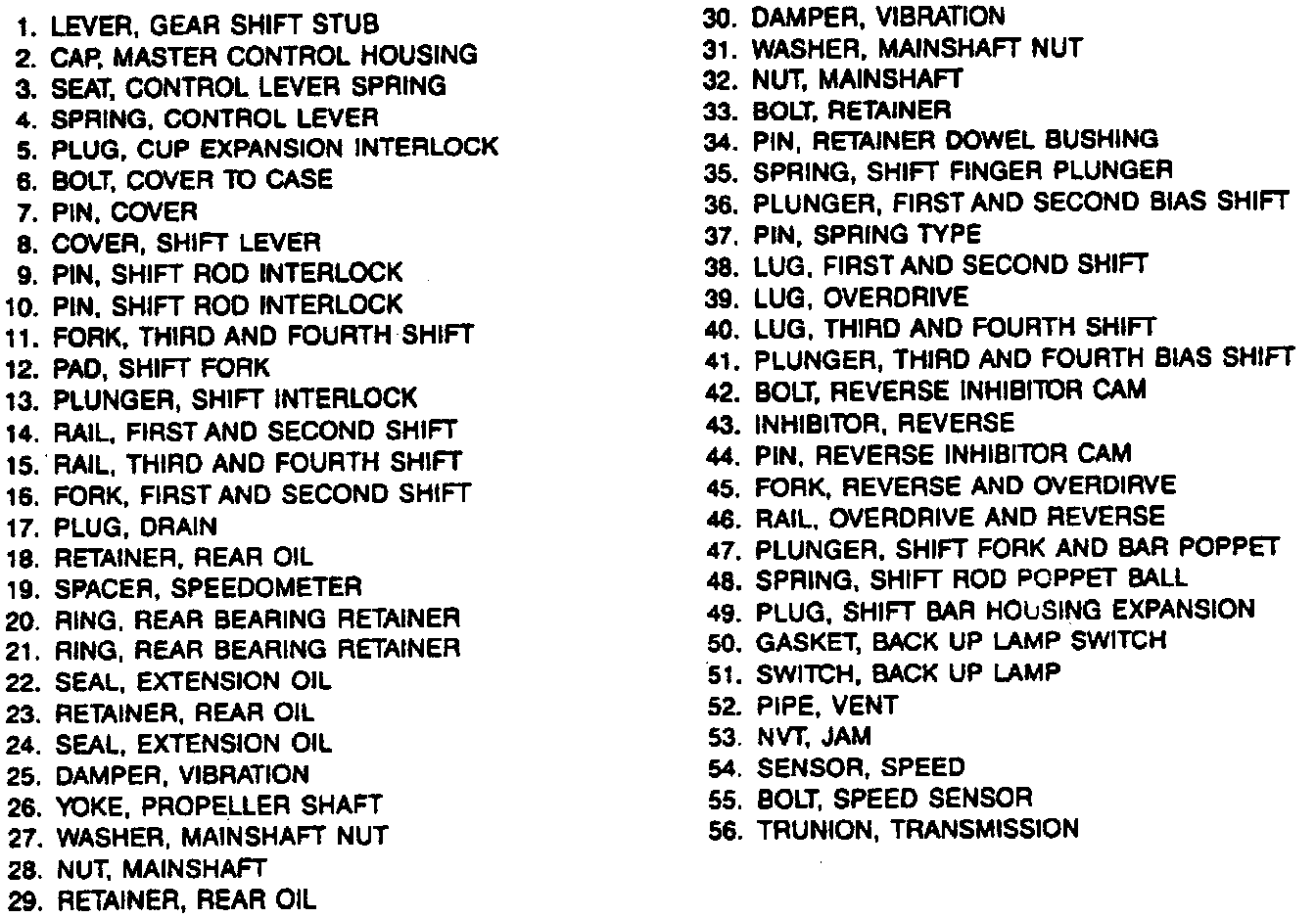

Fig. 1 (part 2 Of 2):

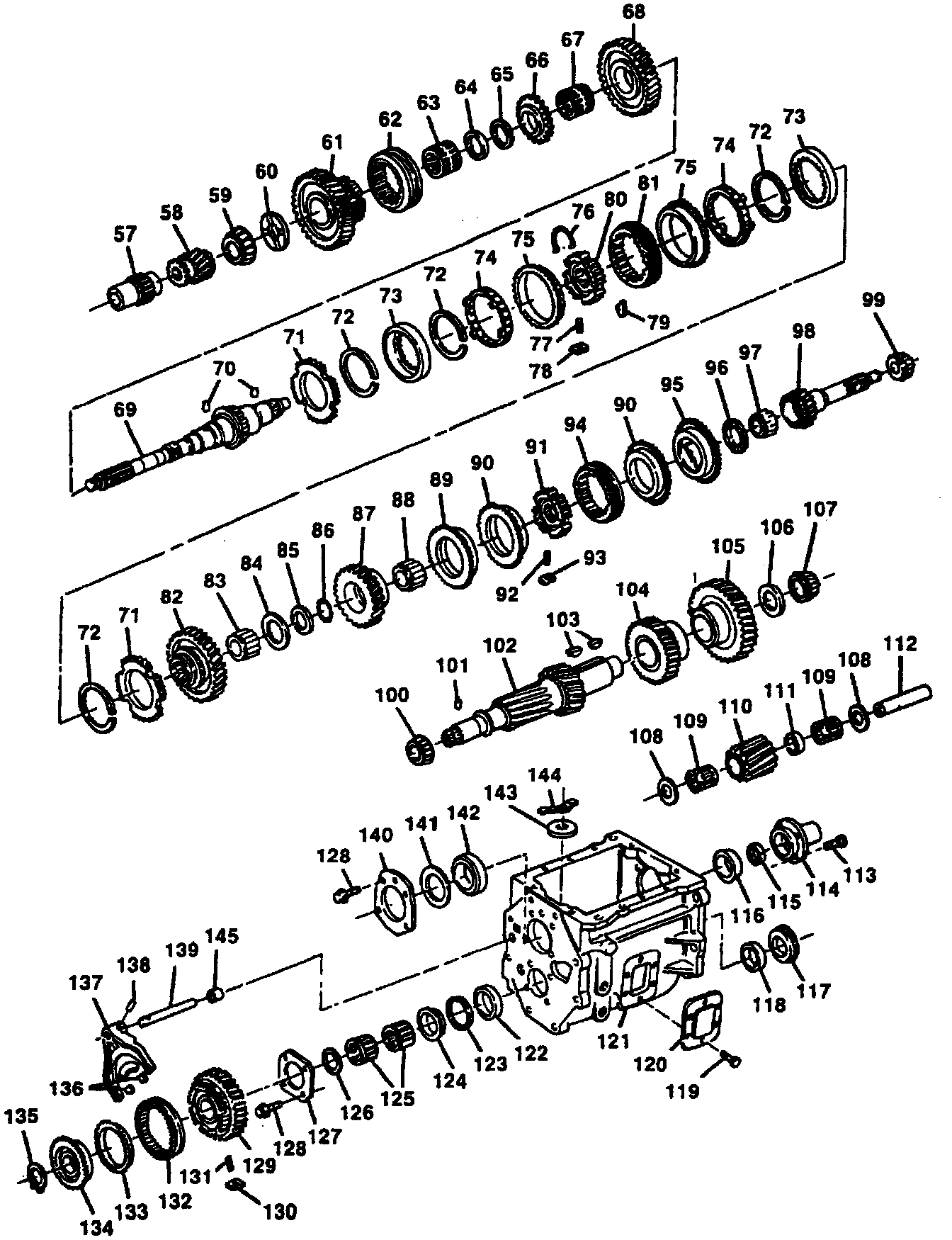

Fig. 2 (part 1 Of 2):

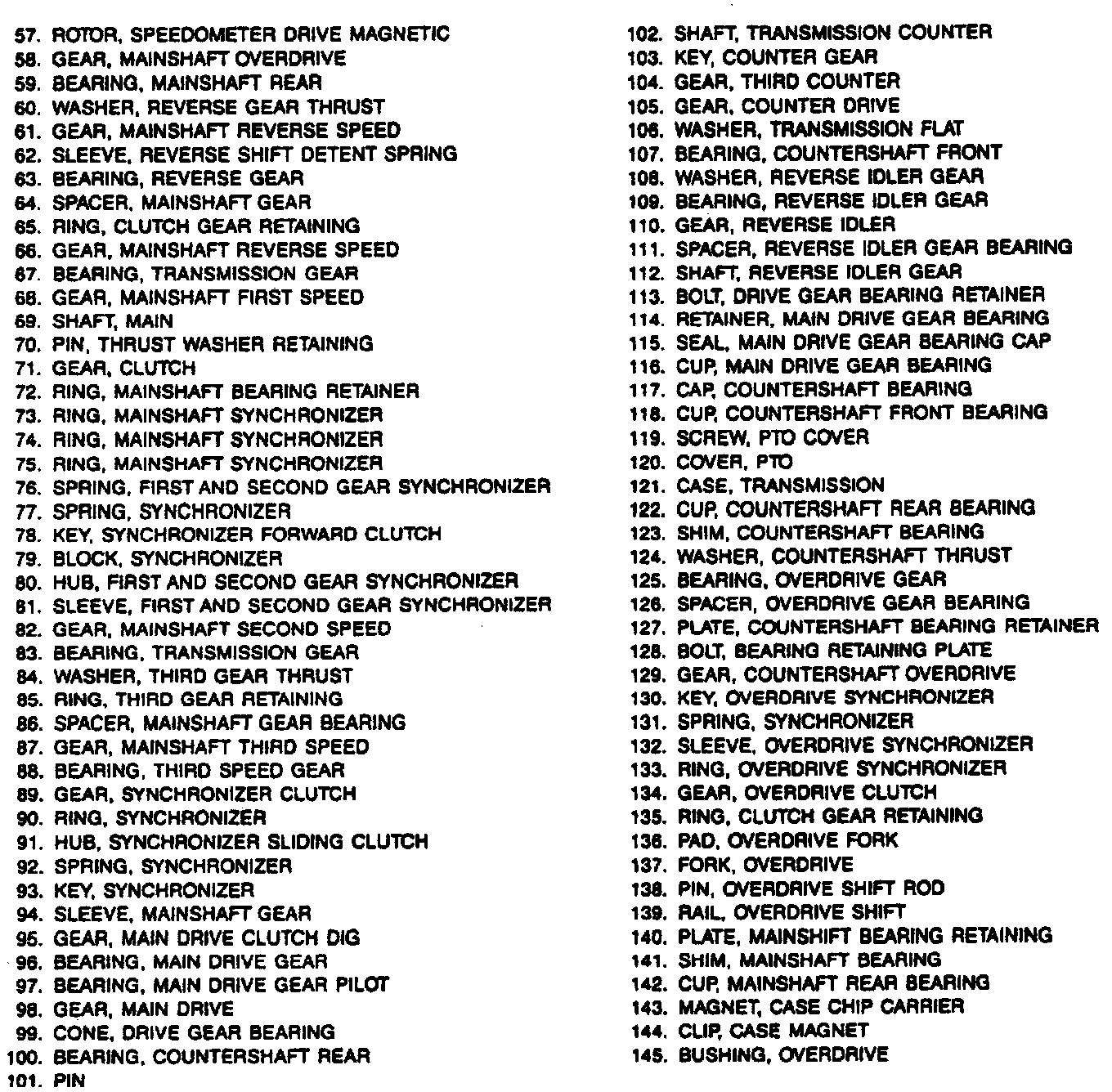

Fig. 2 (part 2 Of 2):
