Test Description

WARNING: This page is about a different variant/trim than selected.
NOTE: Test numbers refer to numbers on diagnostic chart.
  1. Determines if conditions necessary to set Code P0118 exist.
  2. Determines if sensor signal circuit is shorted to ground.
Fig 1: Code P0118 Schematic (Corvette) Coolant Temperature Sensor Low Temperature Indicated
G95D13808

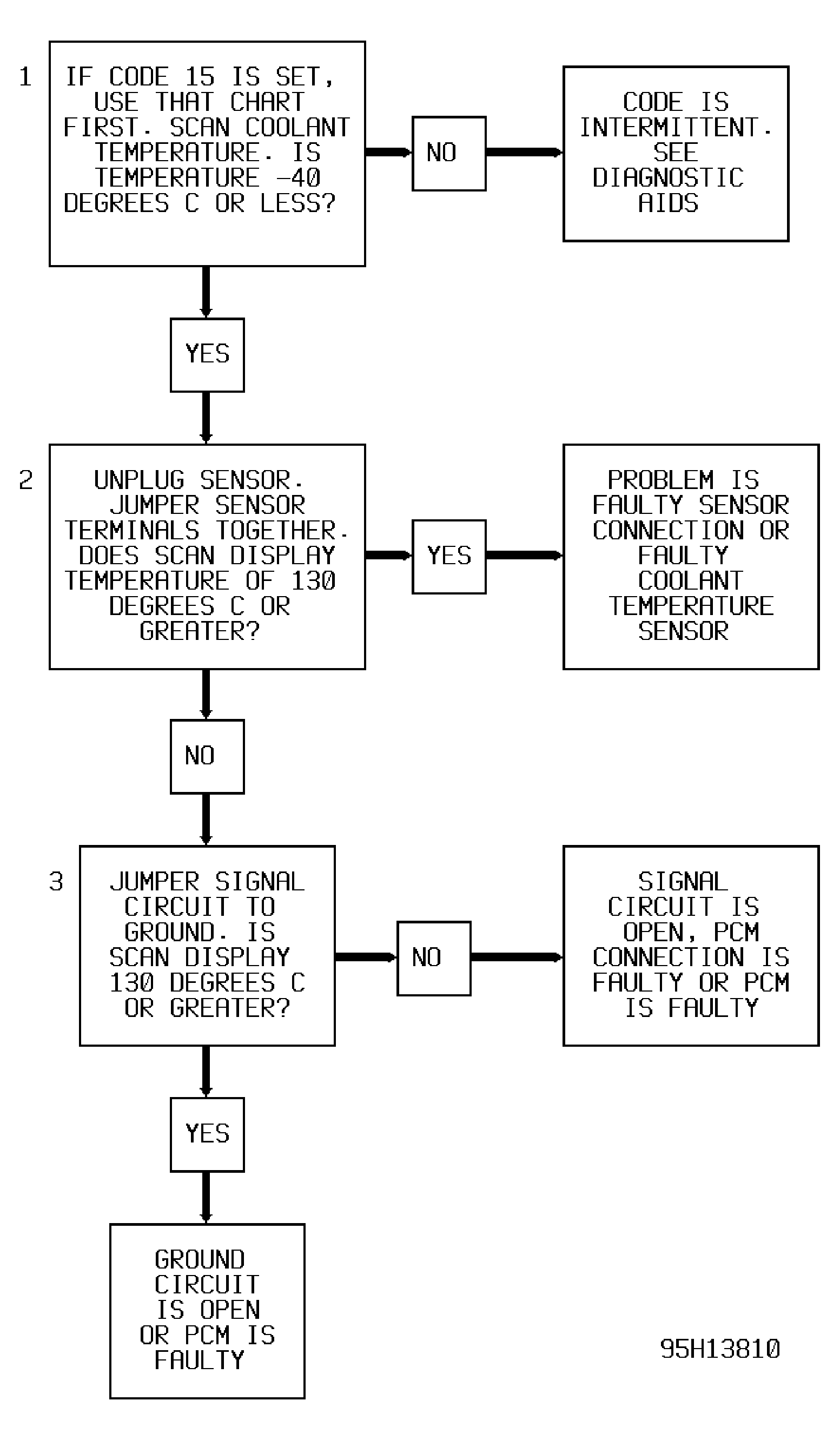

Fig 2: Code P0118 Flow Chart (Corvette) Coolant Temperature Sensor Low Temperature Indicated
G95H13810
