Connector Identification

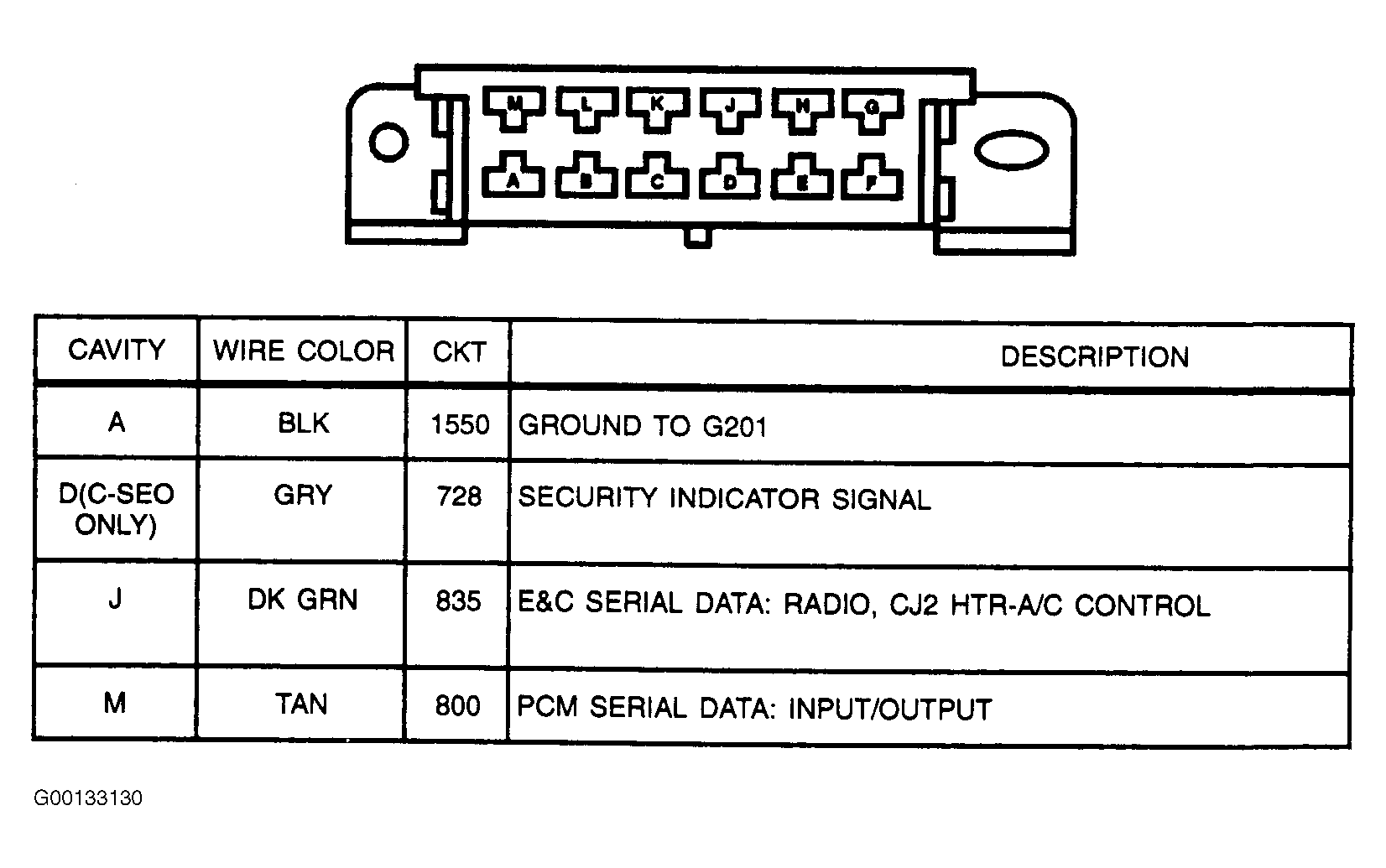

To identify Data Link Connector (DLC) terminals, see Fig 1 .

Fig 1: Identifying DLC Terminals
G00133130Courtesy of GENERAL MOTORS CORP.
