Theft Deterrent Module Assembly

Theft deterrent module assembly contains PASS-Key II(R) logic. Module assembly has inputs from ignition circuit and resistor assembly. Theft deterrent module assembly has outputs to starter enable circuit, fuel enable circuit, and security light circuit. See Fig 1.

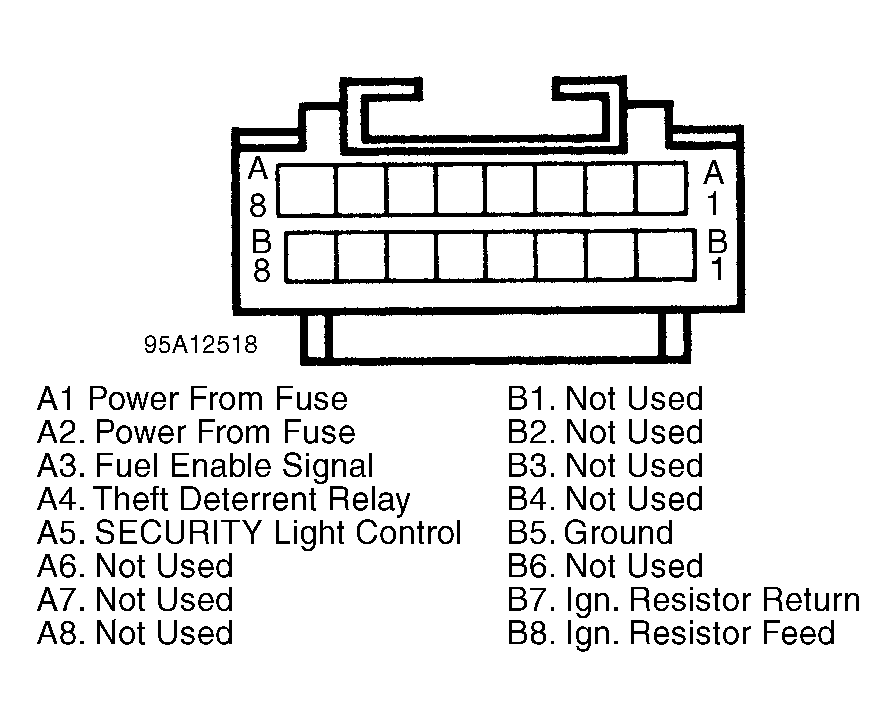

Fig 1: Identifying Theft Deterrent Module Connector Terminals

Courtesy of GENERAL MOTORS CORP.
