Terminal Identification

NOTE: To identify Electronic Brake Control Module (EBCM) connector terminals, see appropriate illustration. SeeFig 1 -Figure .

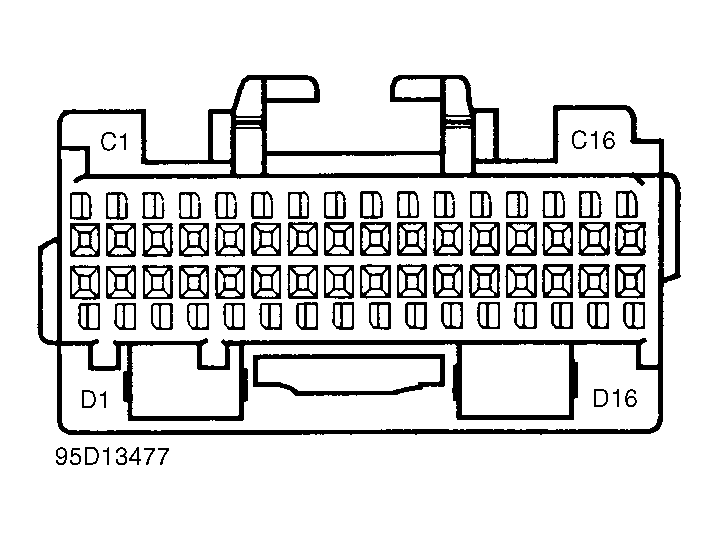

Fig 1: EBCM 32-Pin Connector Terminal ID
G95D13477Courtesy of GENERAL MOTORS CORP.
Fig 2: EBCM 8-Pin Connector Terminal ID
G95E13478Courtesy of GENERAL MOTORS CORP.
