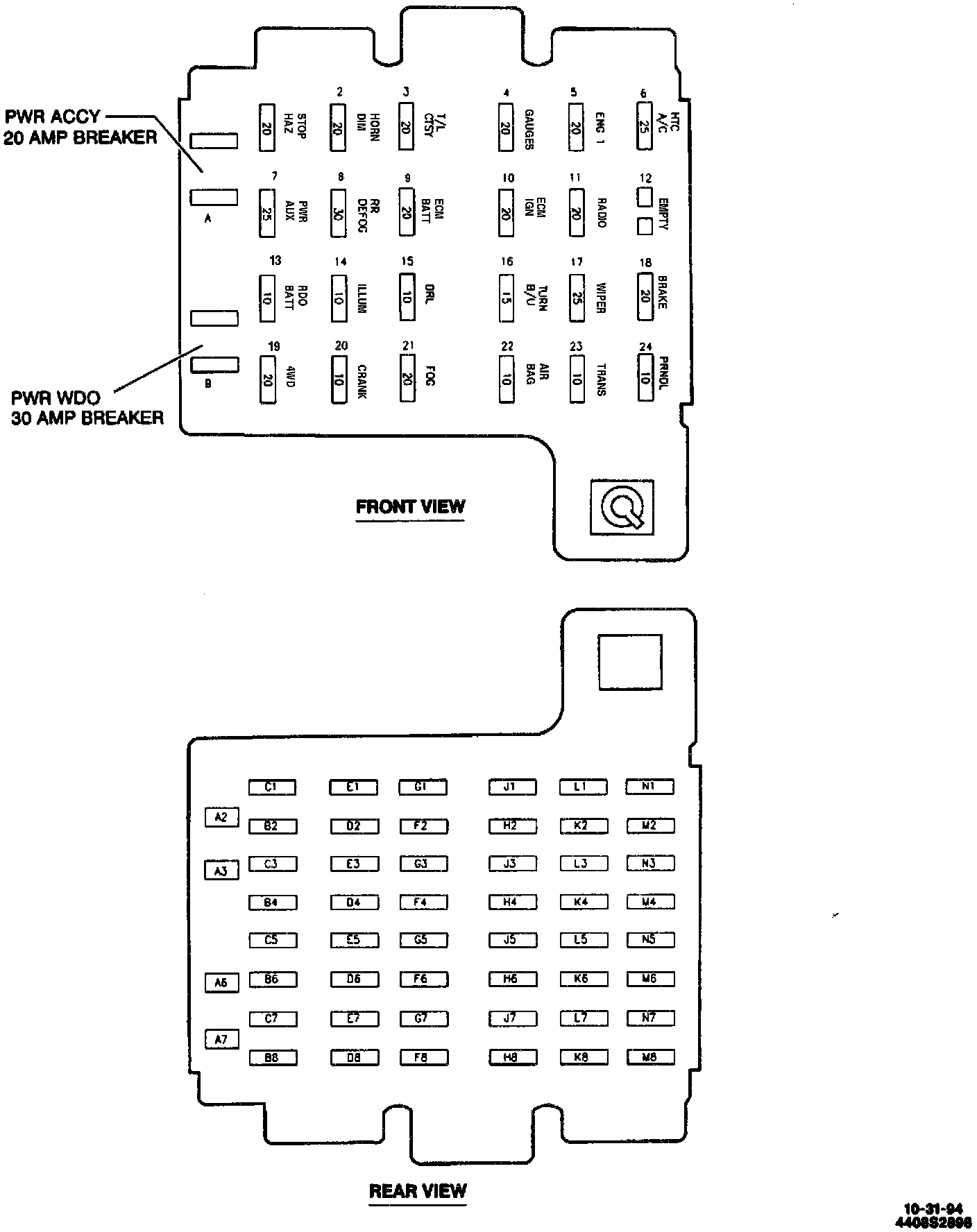

Fuse Block



Rear Of I/P - I/P Harness And Connectors:






LH end of I/P, near door

Fuse Block Details:






Details

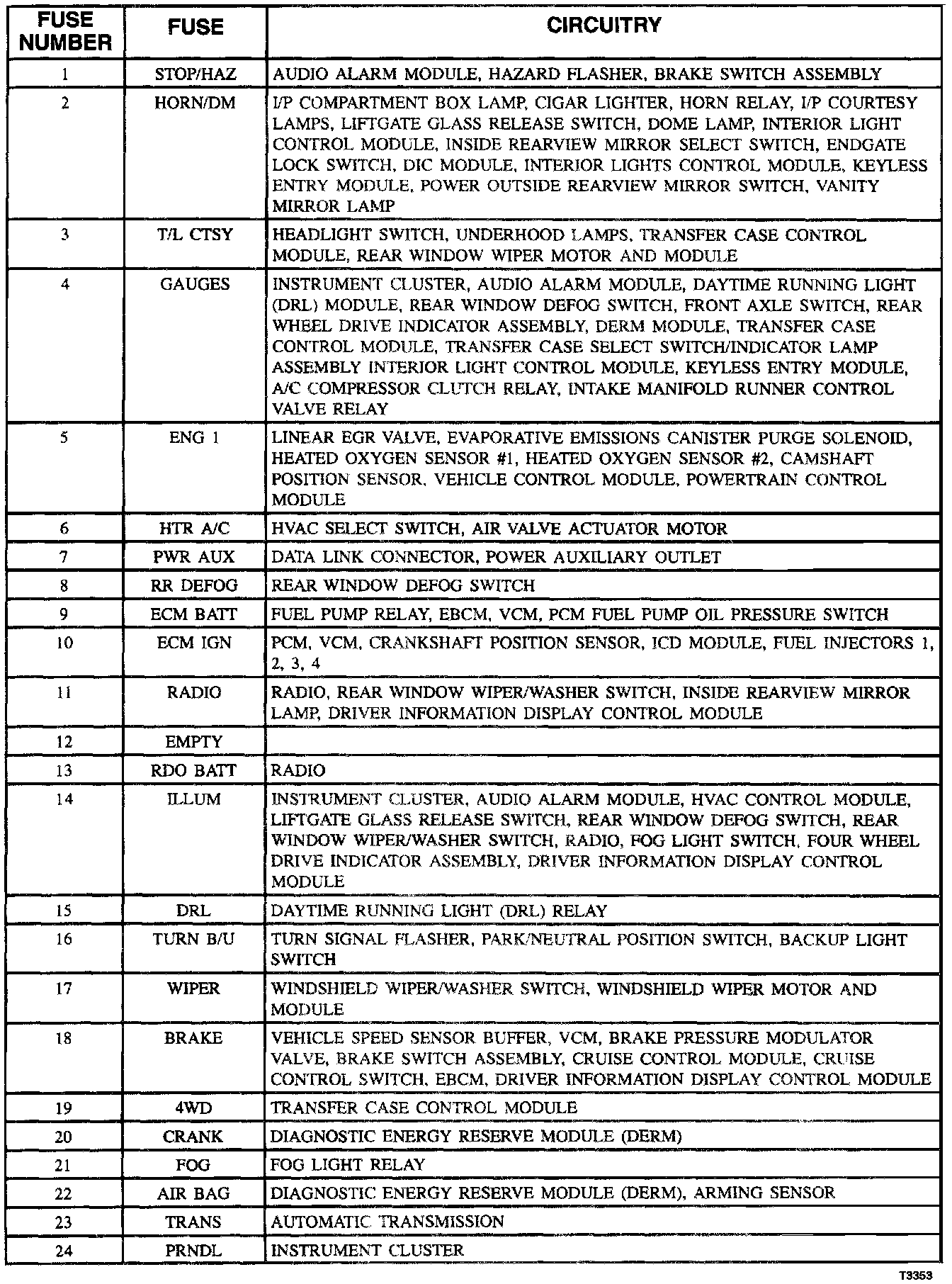

Fuse Block Details:






Identification
