Removal & Installation
- EBCM is mounted to Brake Pressure Modulator (BPM) located on left side of engine compartment, left of alternator. Disconnect negative battery cable. Remove air intake duct and resonator.
- Unlock tab and disconnect EBCM connector. Disconnect EBCM ground wire. Remove EBCM/BPM assembly-to-bracket nuts. Remove brakeline clip bolt, downstream of EBCM/BPM valve. Raise and support EBCM/BPM valve with wood block.

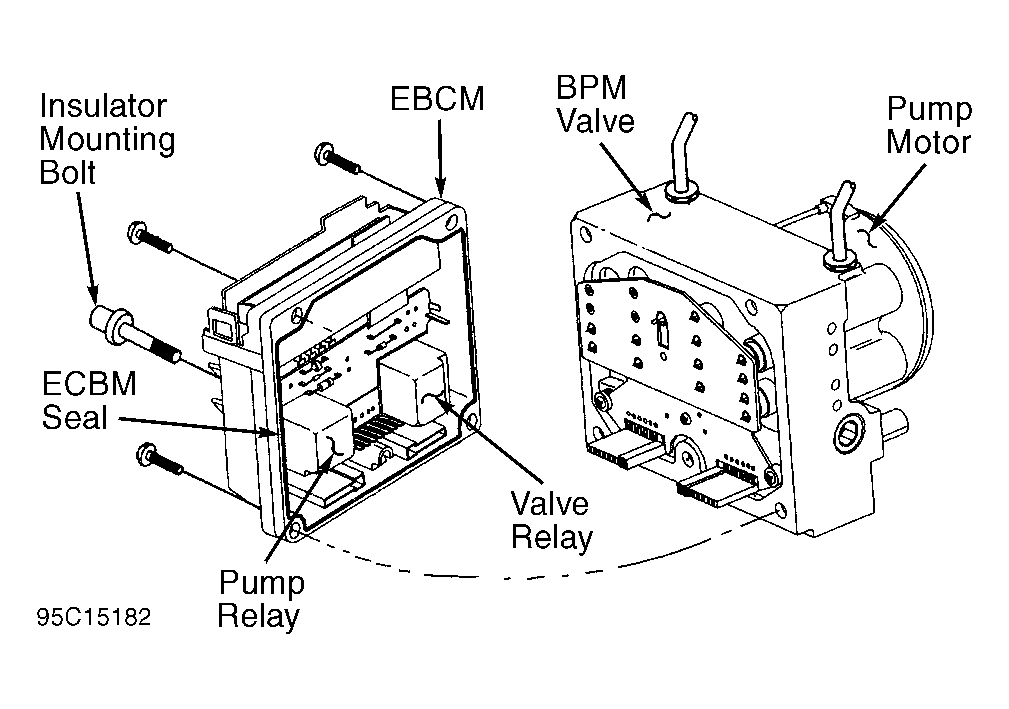

- Remove EBCM-to-BPM bolts. Remove EBCM front mounting insulator bolt. Carefully separate EBCM from BPM valve. DO NOT pry EBCM from BPM, if seal is damaged EBCM must be replaced.
- To install, reverse removal procedure. Tighten bolts and nuts to specification. See TORQUE SPECIFICATIONS . Ensure EBCM connector is fully seated and tab is locked. Perform ABS functional check. See Figure.
