Turn Signal Switch

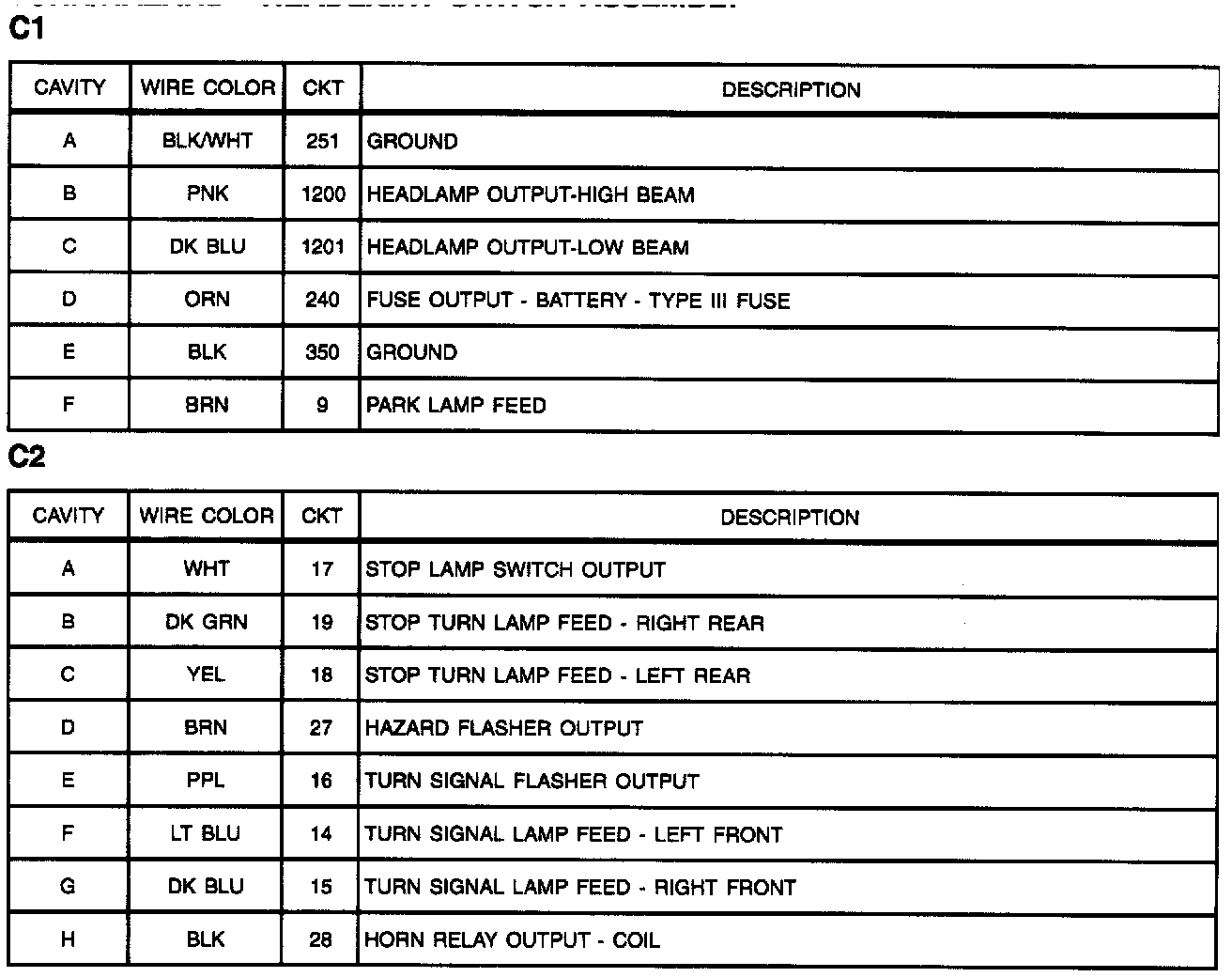

Turn/Hazard - Headlight Switch Assembly: C1 And C2:
Turn/Hazard - Headlight Switch Assembly: C1 And C2:
