On-Vehicle Service

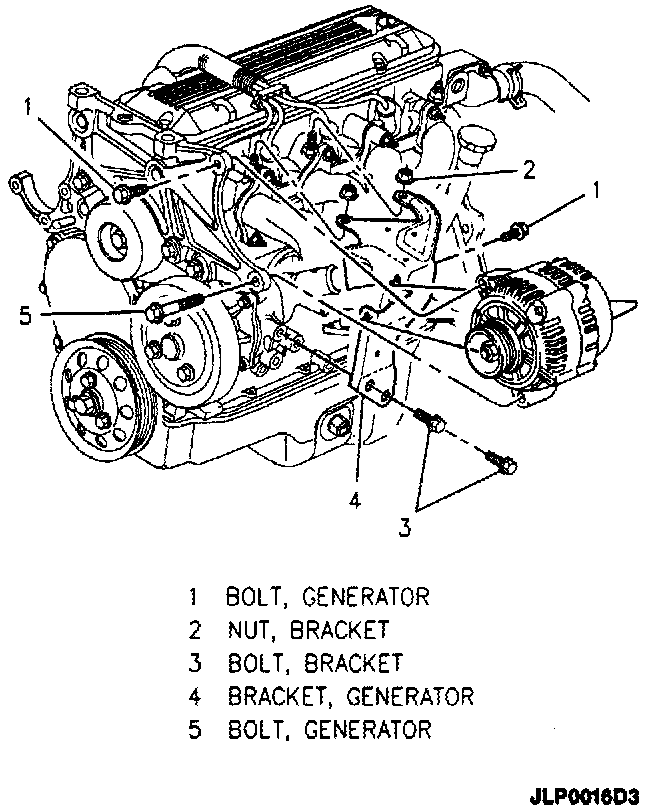

Generator Mounting:

REMOVE OR DISCONNECT
1. Negative battery cable at battery.
2. Generator electrical connections.
3. Generator drive belt.
4. Through bolts which retain generator
5. Generator.

INSTALL OR CONNECT
1. Generator to mounting bracket with bolts, washers and nuts.
2. Generator drive belt.
3. Generator electrical connections.
4. Negative battery cable at battery.
