Component Locations

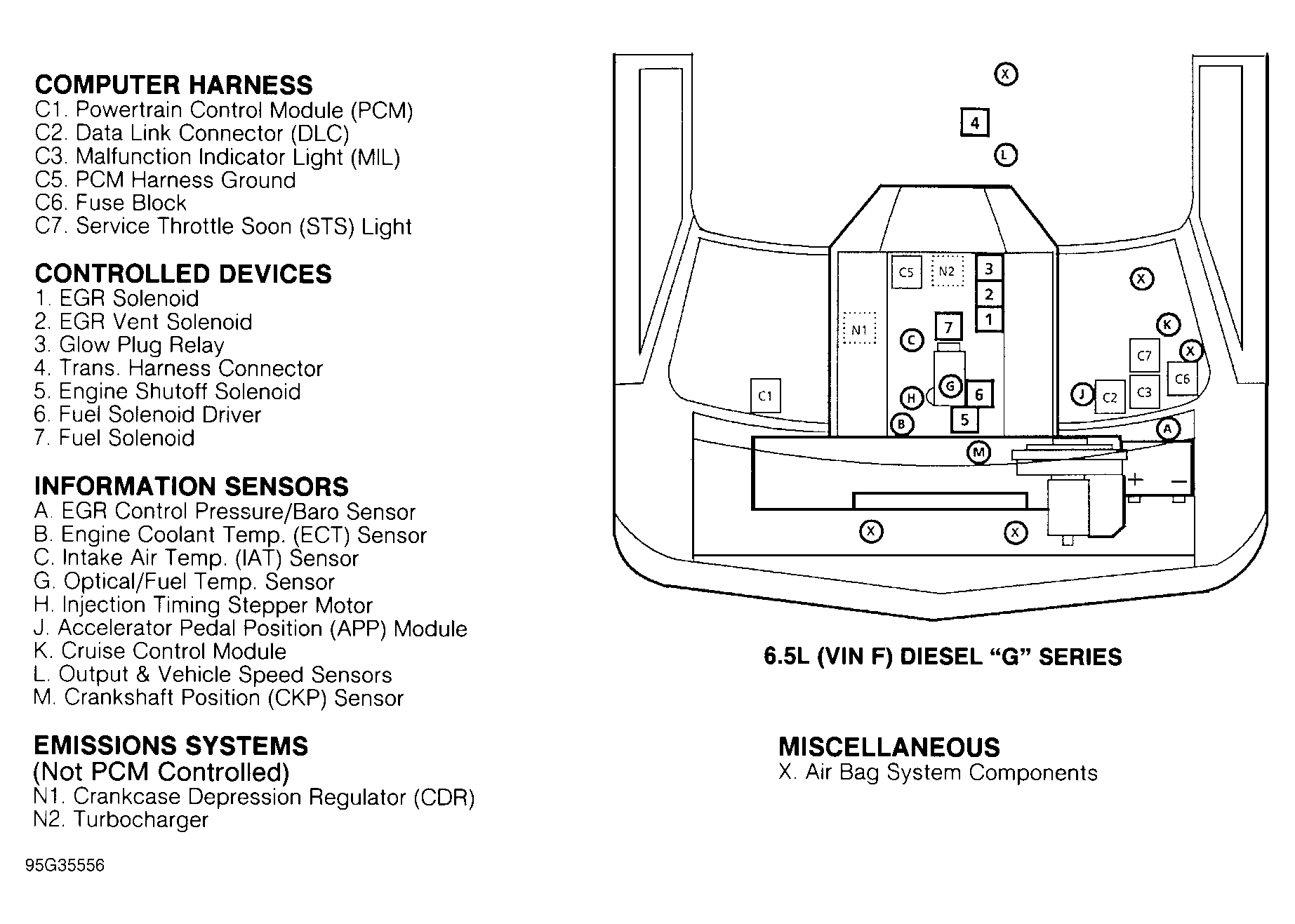

Fig 1: Component Locations - 6.5L (VIN F) Diesel "G" Series
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
