Keyless Entry Receiver

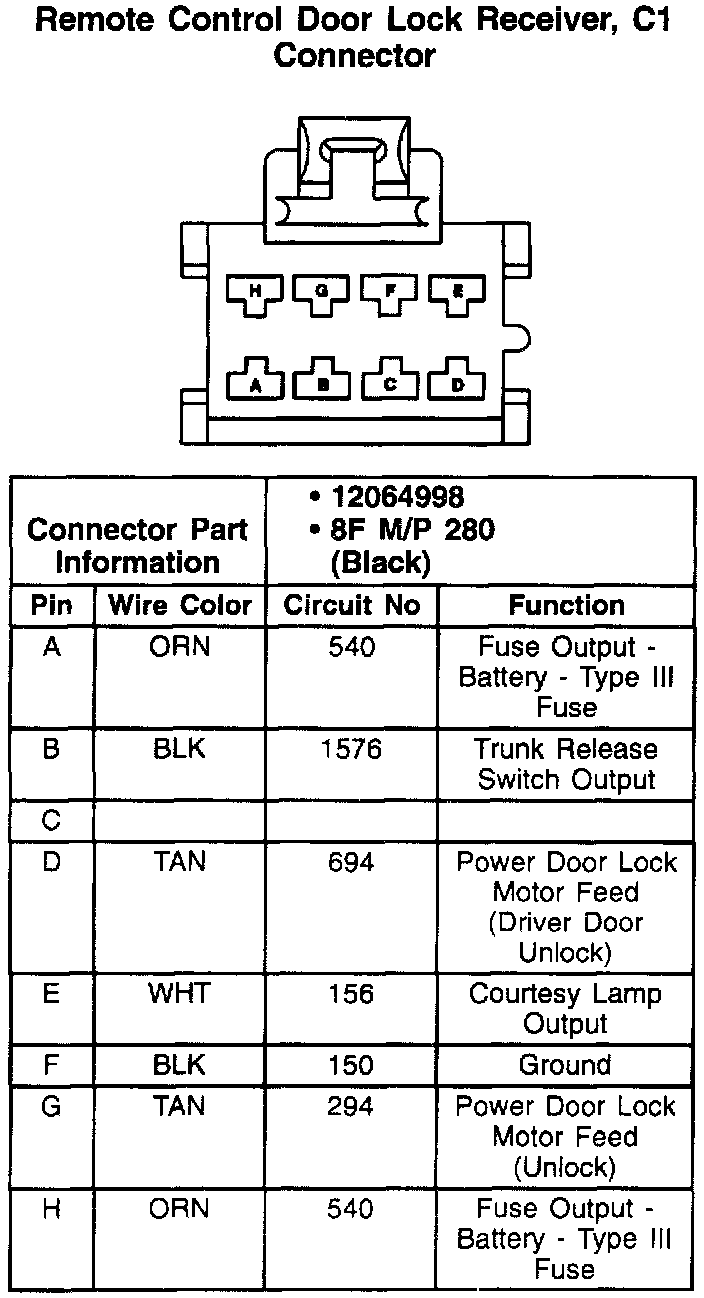

Remote Control Door Lock Receiver, C1 Connector:



Remote Control Door Lock Receiver, C2 Connector:
