Fastener Tightening Specifications - Engine

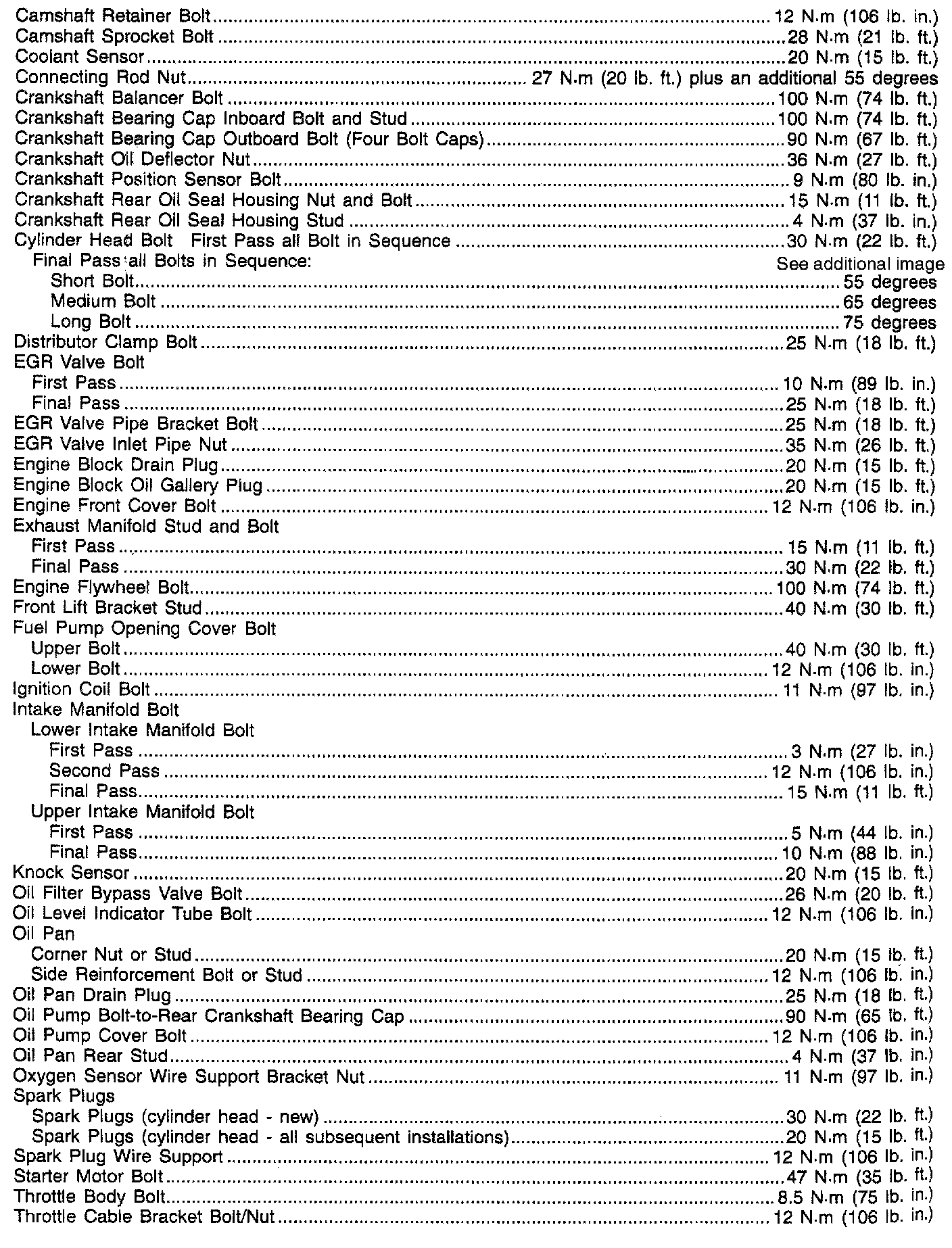

5.0L And 5.7L - Torque Specifications:



5.0L And 5.7L - Torque Specifications:
