Connector C2

NOTE: For terminal identification, see Figure.

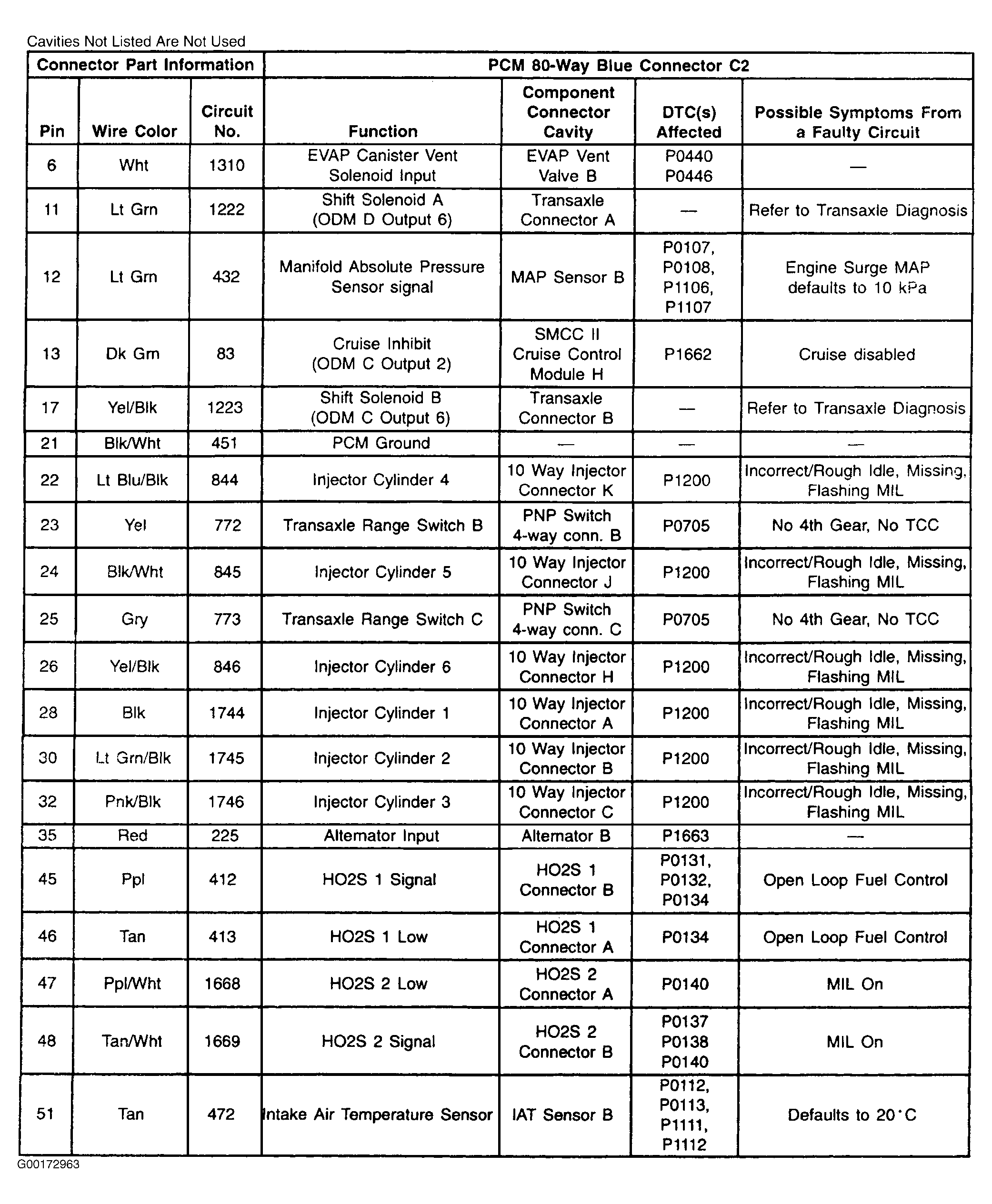

Fig 1: PCM 80-Pin Connector C2 (Blue) - Legend (Regal) - (1 Of 2)
G00172963Courtesy of GENERAL MOTORS CORP.

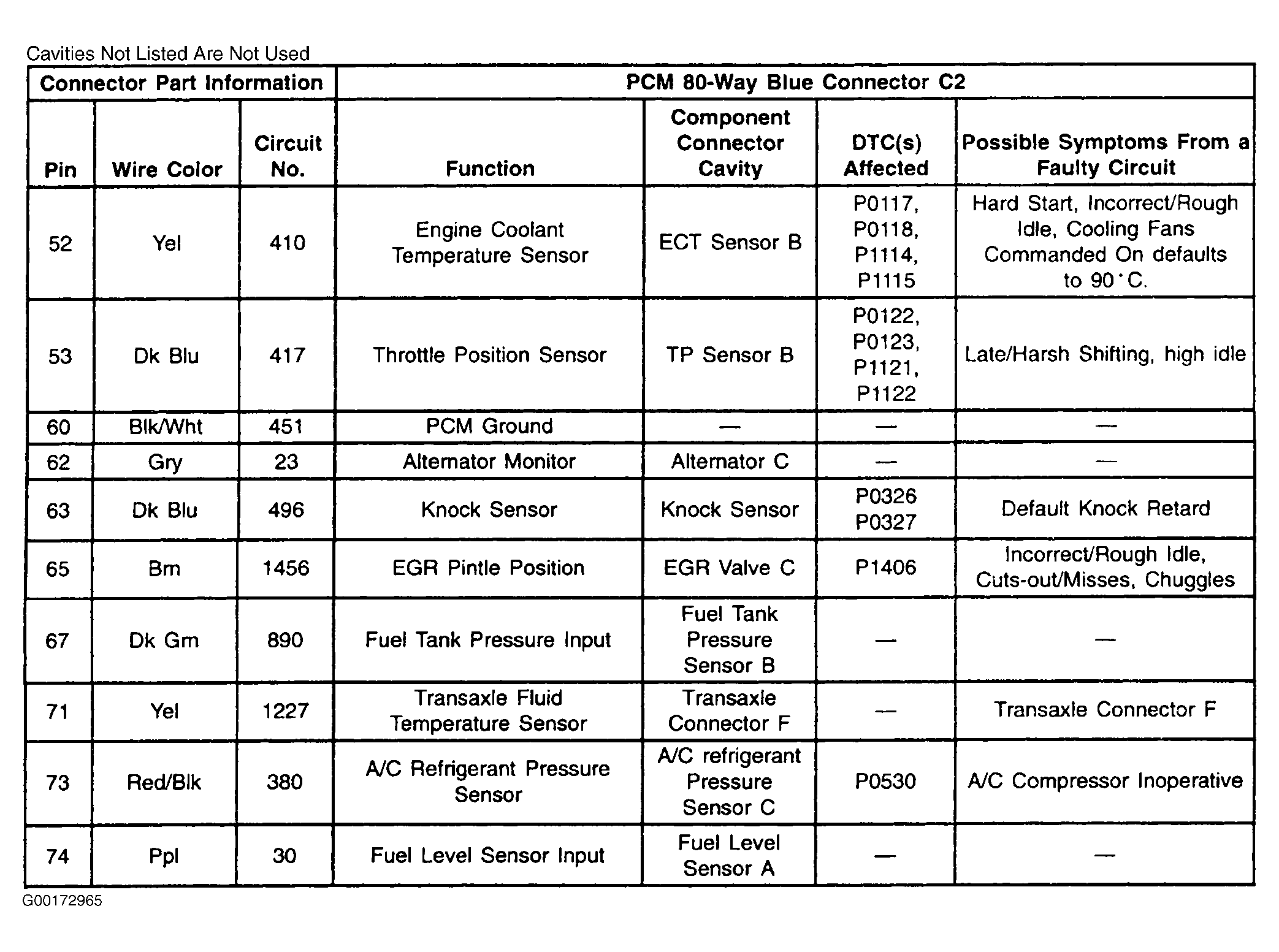

Fig 2: PCM 80-Pin Connector C2 (Blue) - Legend (Regal) - (2 Of 2)
G00172965Courtesy of GENERAL MOTORS CORP.
