Powertrain Control Module Vent Hose
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Powertrain Control Module Vent Hose

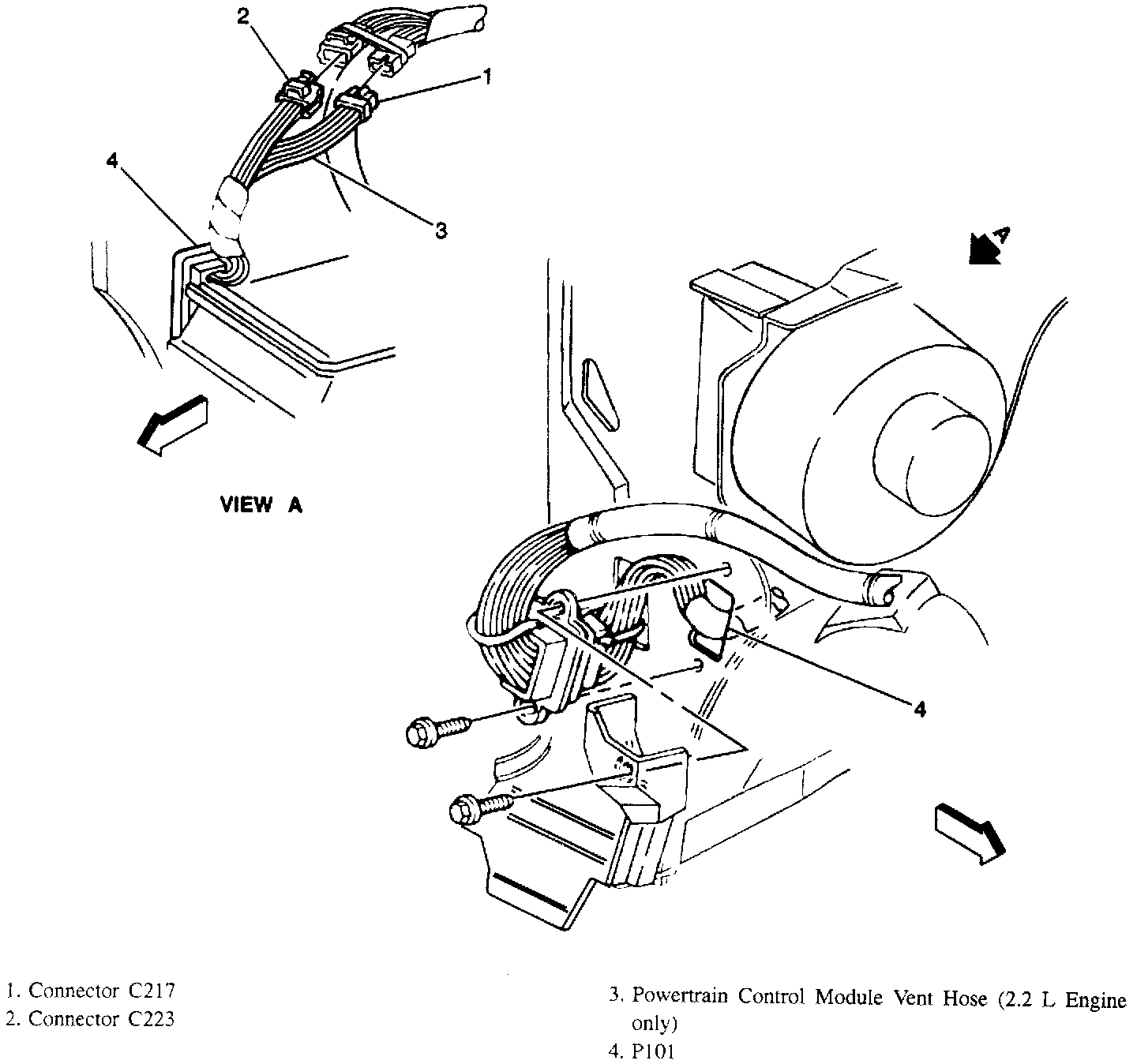

Engine Compartment Wiring At Grommet P101:
