Connectors C100 To C301: C102

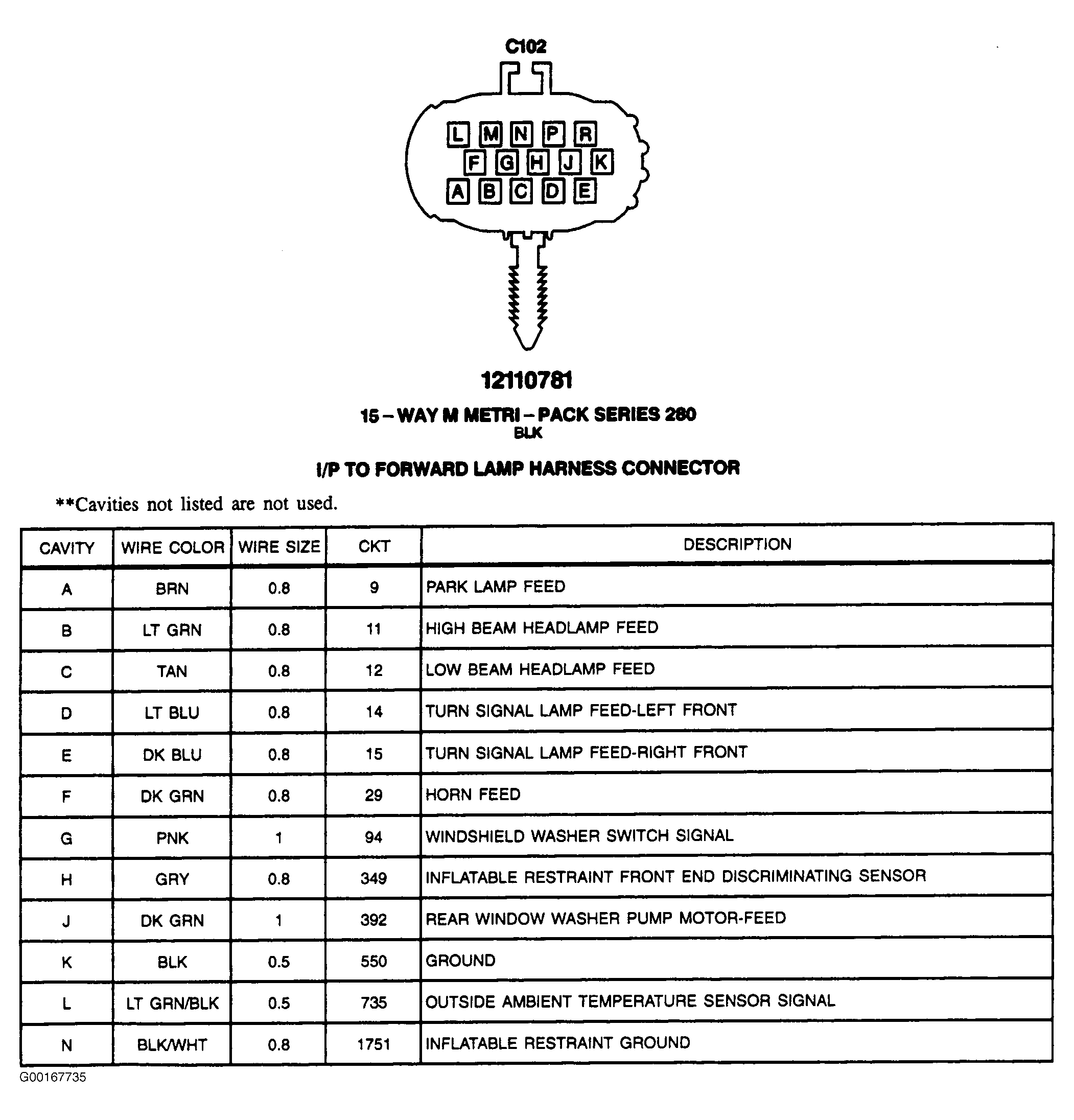

Fig 1: C102 - 15-Pin Connector, Black

G00167735

Courtesy of GENERAL MOTORS CORP.
