Connectors C100 To C301: C201

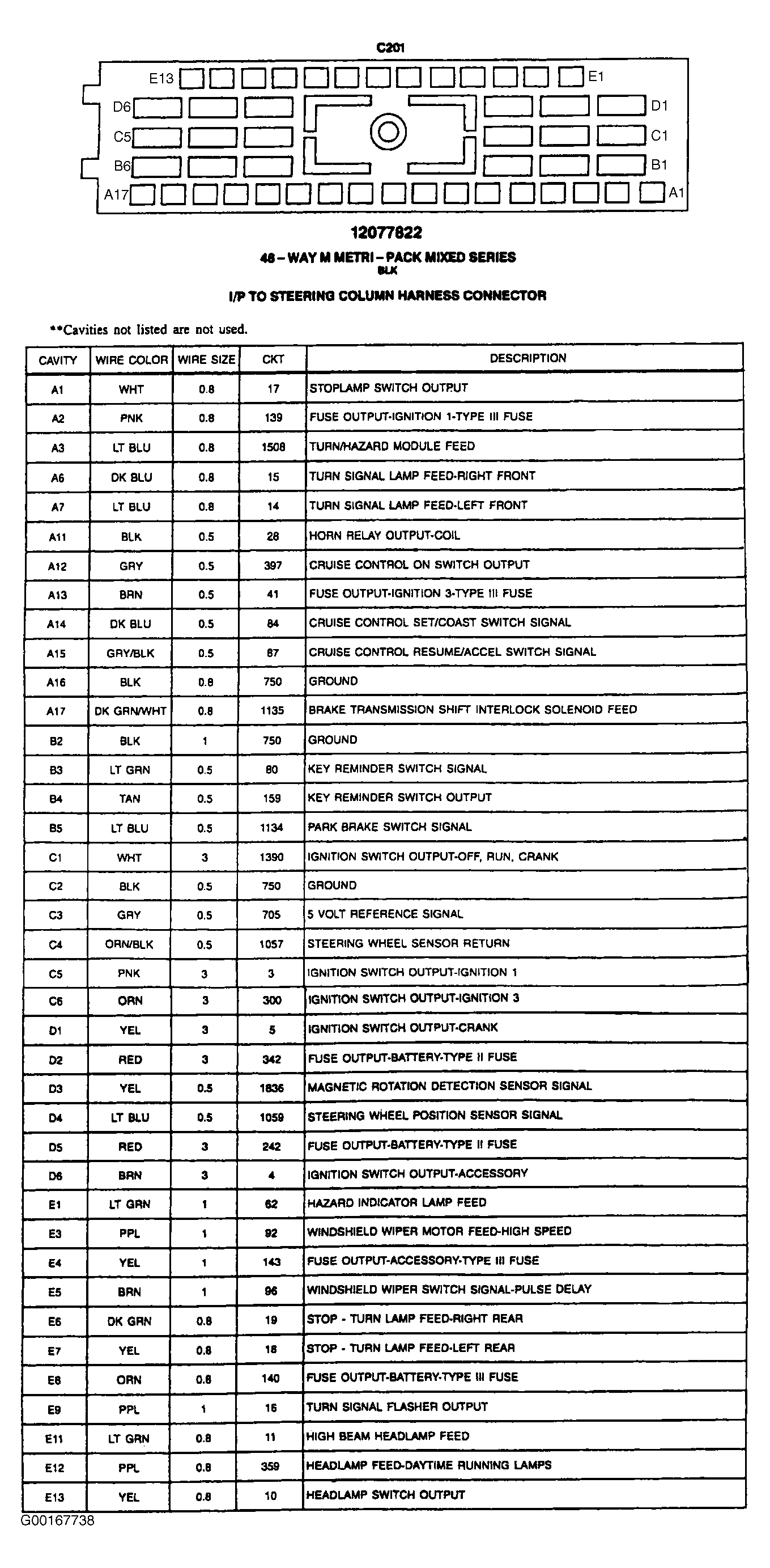

Fig 1: C201 - 48-Pin Connector, Black

G00167738

Courtesy of GENERAL MOTORS CORP.
