Connectors C100 To C301: C301

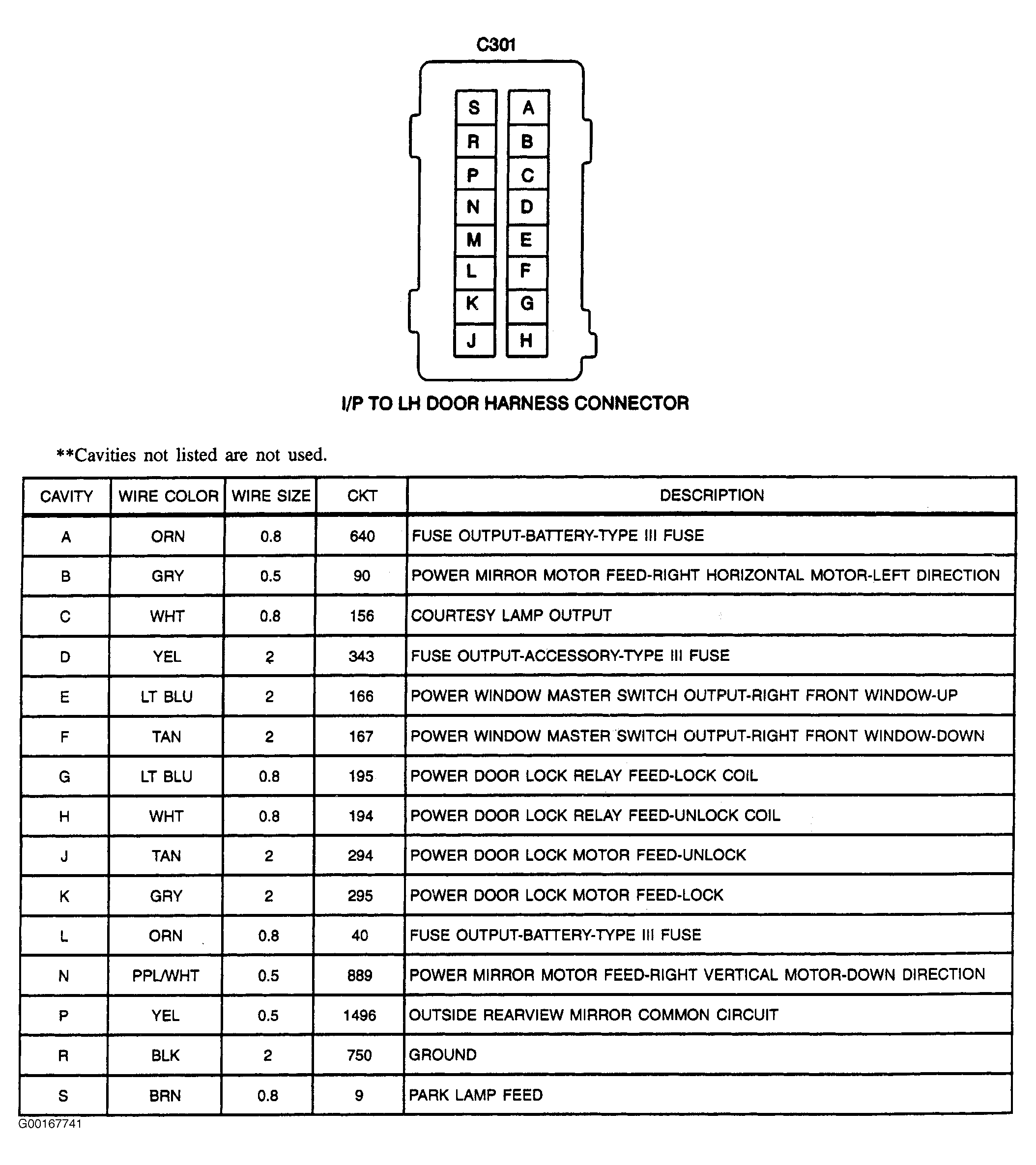

Fig 1: C301 - 16-Pin Connector

G00167741

Courtesy of GENERAL MOTORS CORP.
