Connector Terminal Identification
>>
Cruise Control Module
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Cruise Control Module

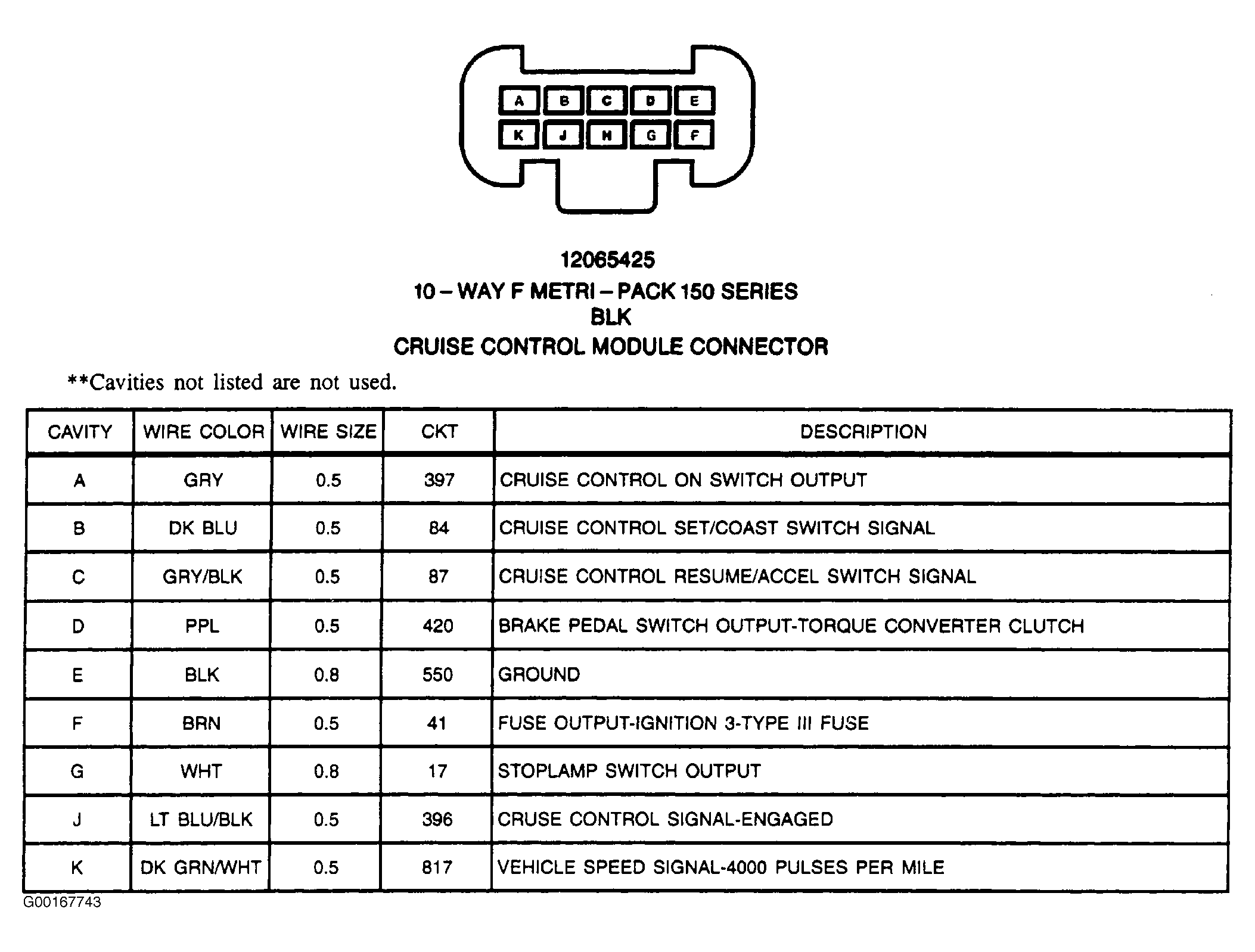

Fig 1: Cruise Control Module - 10-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
