Brake Switch (Cruise Control): Service and Repair

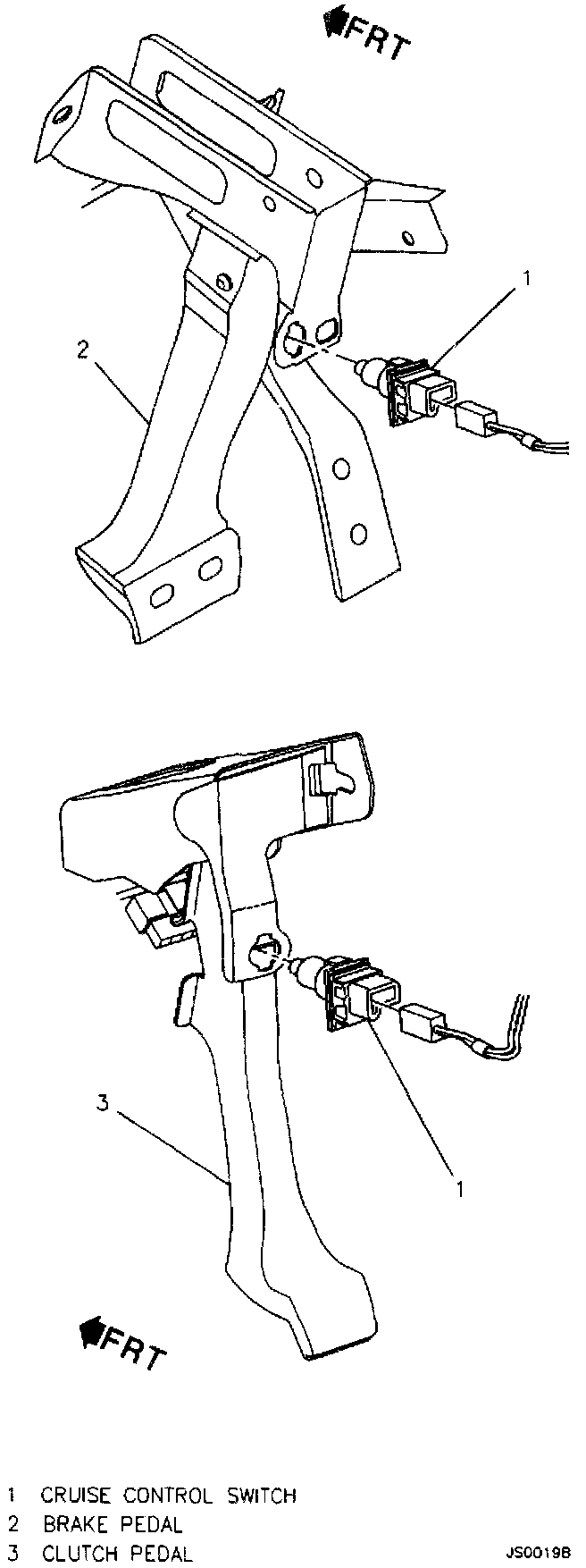

Cruise Control Switches:

Remove or Disconnect
1. Left sound insulator.
2. Wiring harness connector(s).
3. Pull switch rearward to remove from retainer in bracket.

Install or Connect
1. Retainer into bracket (from forward side).
2. With brake or clutch pedal depressed, insert switch into retainer until switch seats on retainer. Audible "clicks" can be heard as ribbed portion of switch is pushed forward through the retainer.
3. Wiring harness connector(s).

Adjust
a. Pull brake or clutch pedal fully rearward against pedal stop until audible "clicks" can not be heard. Switch will be moved in retainer providing adjustment.
b. Release brake or clutch pedal and repeat Step A to assure that switch is properly adjusted.
4. Sound insulator.
