Home >> Chevrolet >> 1997 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> 4T40-E Automatic Transaxle >> Control Valve Body Assembly
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

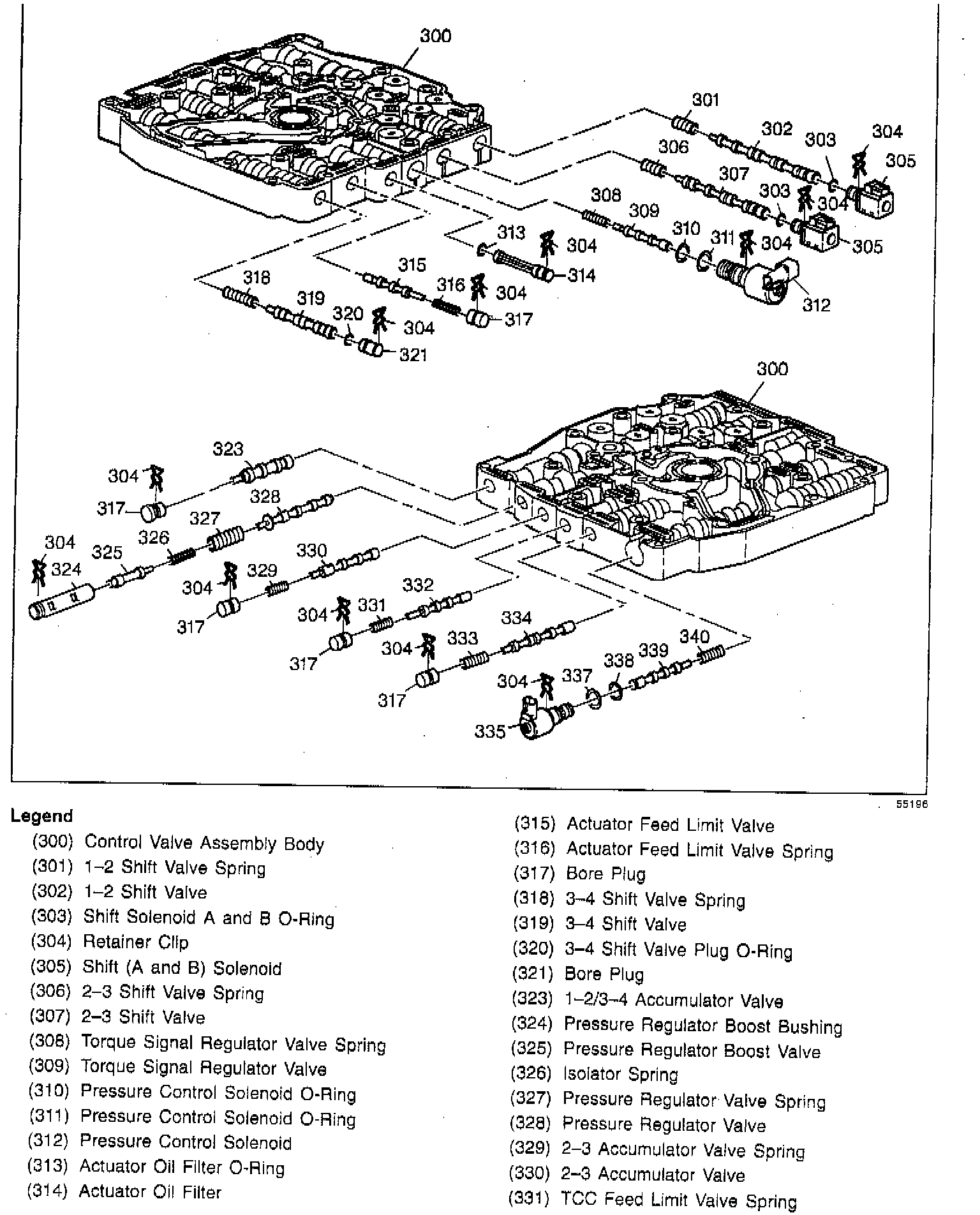

Control Valve Body Assembly
