Lamp Control Module: Service and Repair

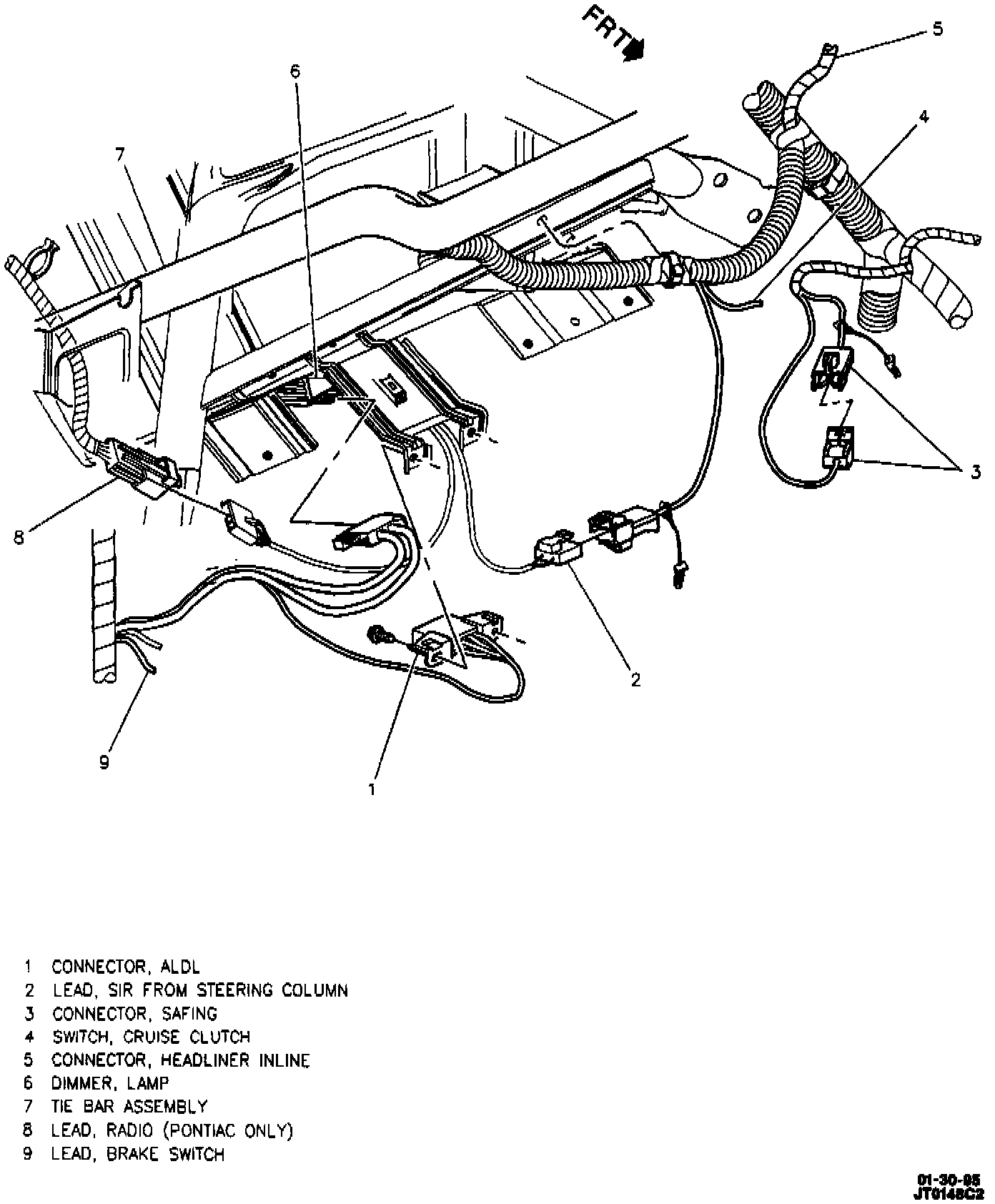

Description:

Remove or Disconnect
1. Disable SIR system.
2. Left sound insulator.
3. Electrical connector.
4. Screws to dimmer module.

Install or Connect
1. Screws to dimmer module.
2. Electrical connector.
3. Left sound insulator.
4. Enable SIR system.
