Chevy Express G1500, Van Cargo
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification (G Series)
>>
Ignition Control Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Ignition Control Module

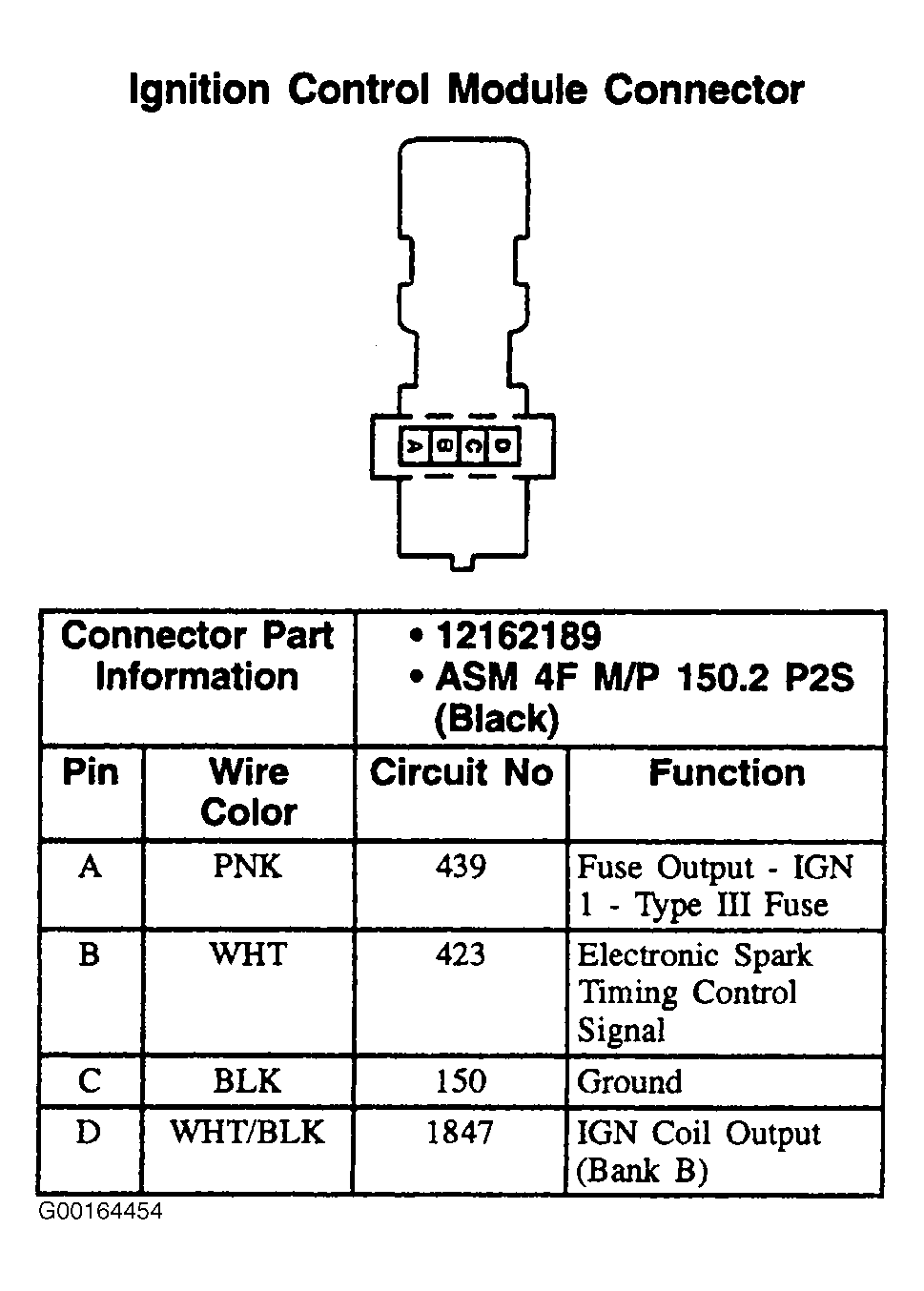

Fig 1: Ignition Control Module - 4-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
