Connector Terminal Identification (G Series)
>>
Inflatable Restraint Sensing & Diagnostic Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Inflatable Restraint Sensing & Diagnostic Module

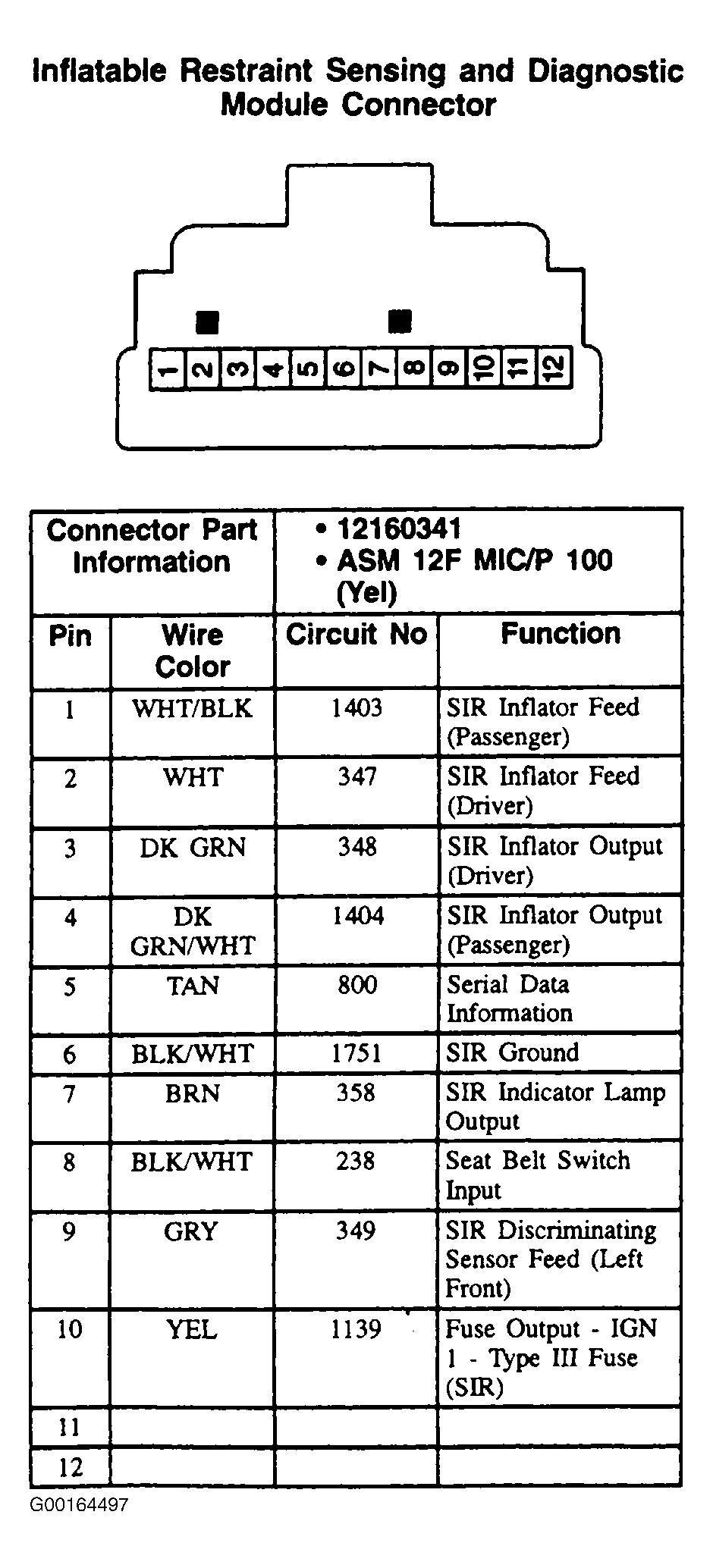

Fig 1: Inflatable Restraint Sensing & Diagnostic Module - 12-Pin Connector, Yellow
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
