Multi-Function Alarm Module

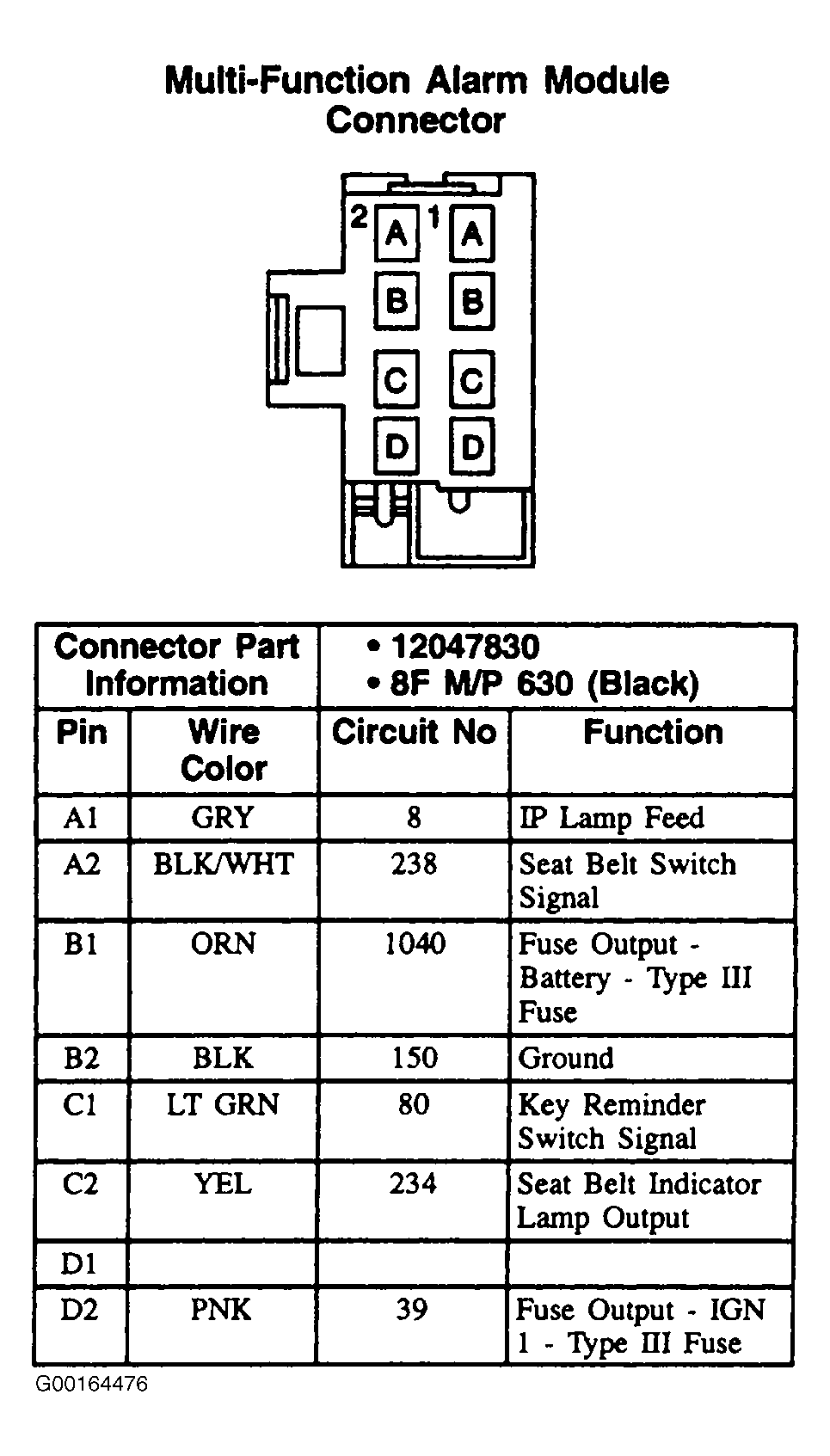

Fig 1: Multi-Function Alarm Module - 8-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
