Power Door Lock Control Module

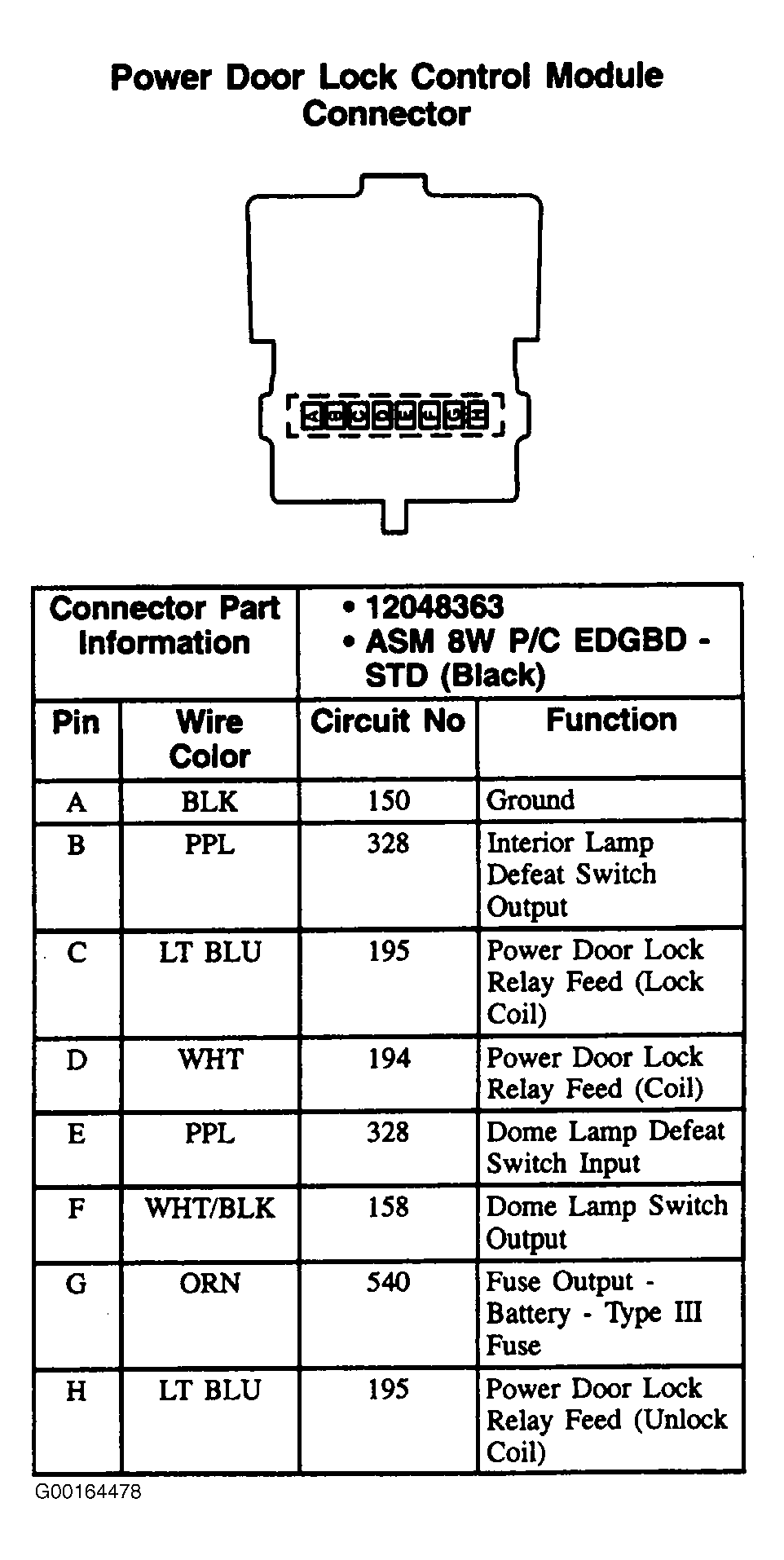

Fig 1: Power Door Lock Control Module - 8-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
