Door Key Switch (LH & RH)

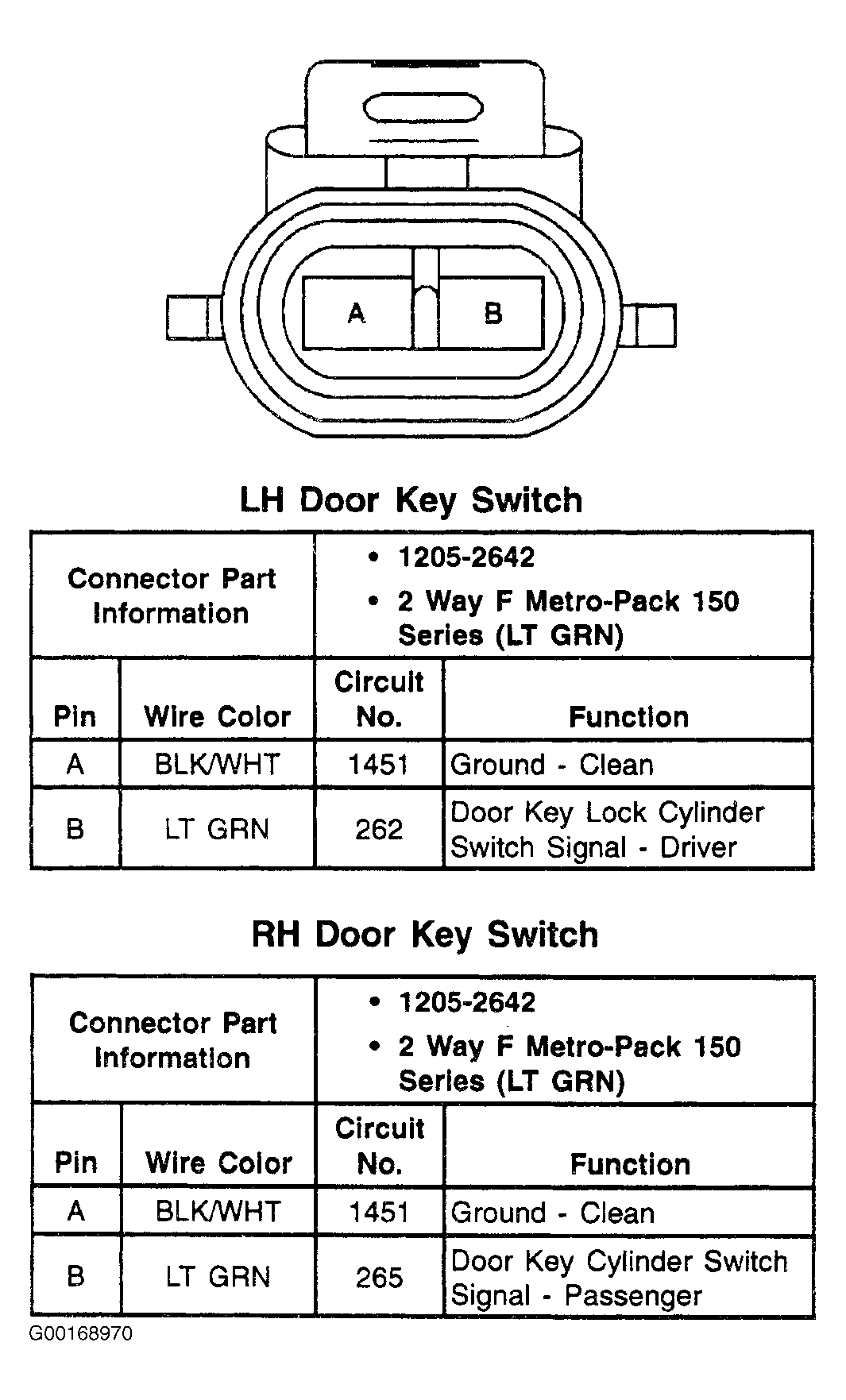

Fig 1: Door Key Switch (LH & RH) - 2-Pin Connector (Light Green)
Courtesy of GENERAL MOTORS CORP.
