Auxiliary Temperature Valve Actuator

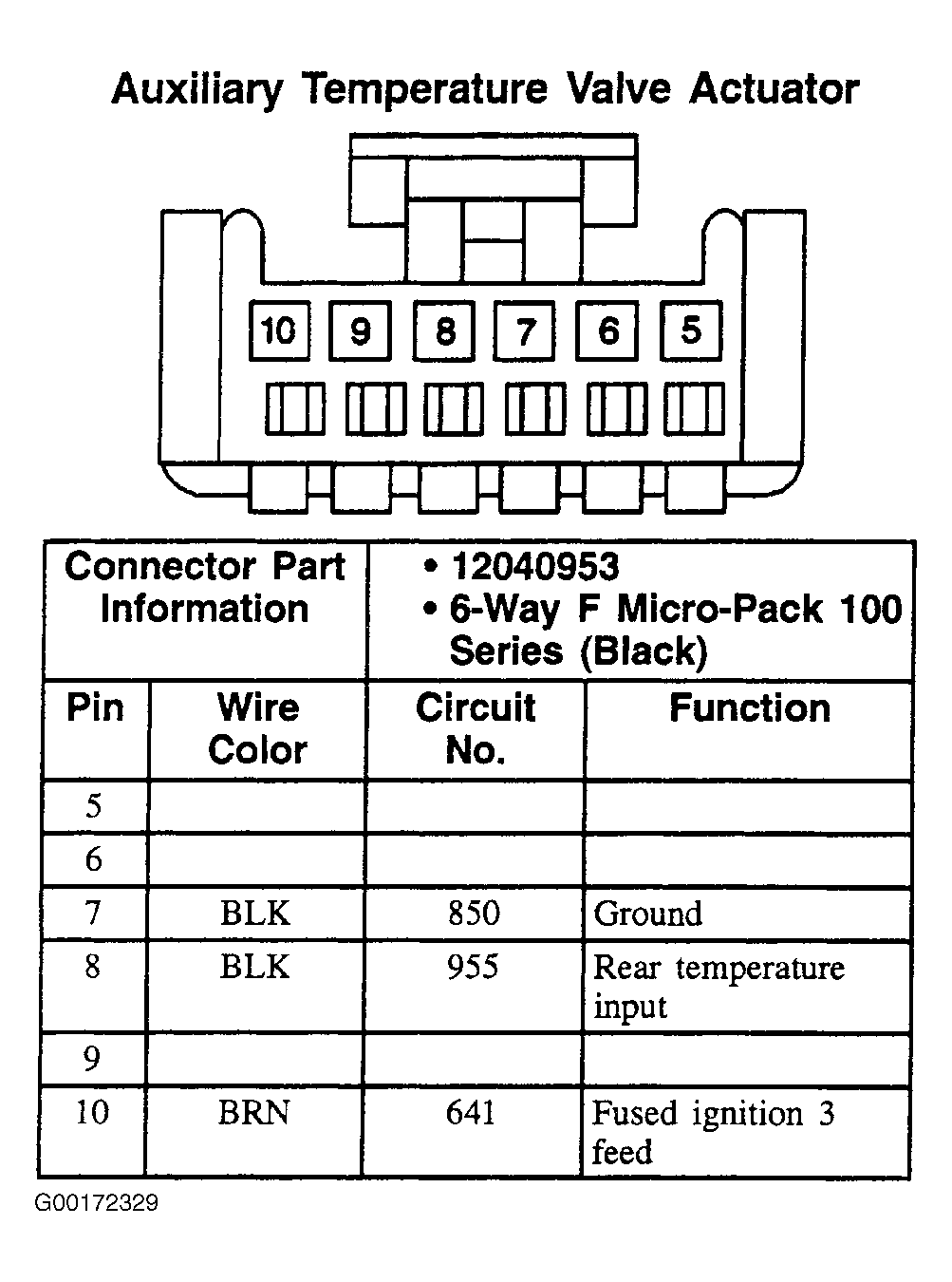

Fig 1: Auxiliary Temperature Valve Actuator - 6-Pin Connector (Black)
G00172329Courtesy of GENERAL MOTORS CORP.
