Connectors C101 To C407: C205

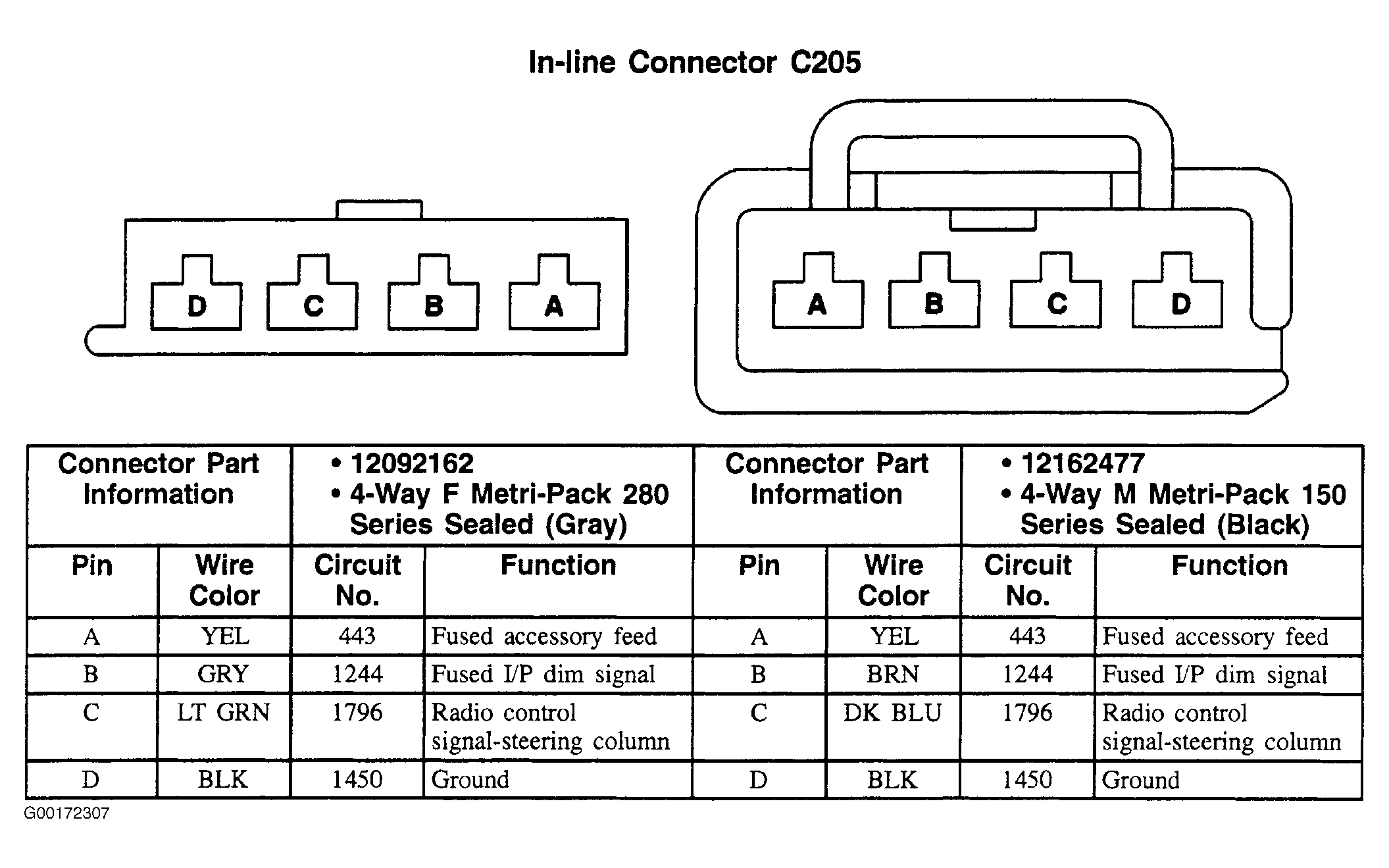

Fig 1: C205 - 4-Pin Connector (Gray/Black)

G00172307

Courtesy of GENERAL MOTORS CORP.
