Connectors C101 To C407: C302

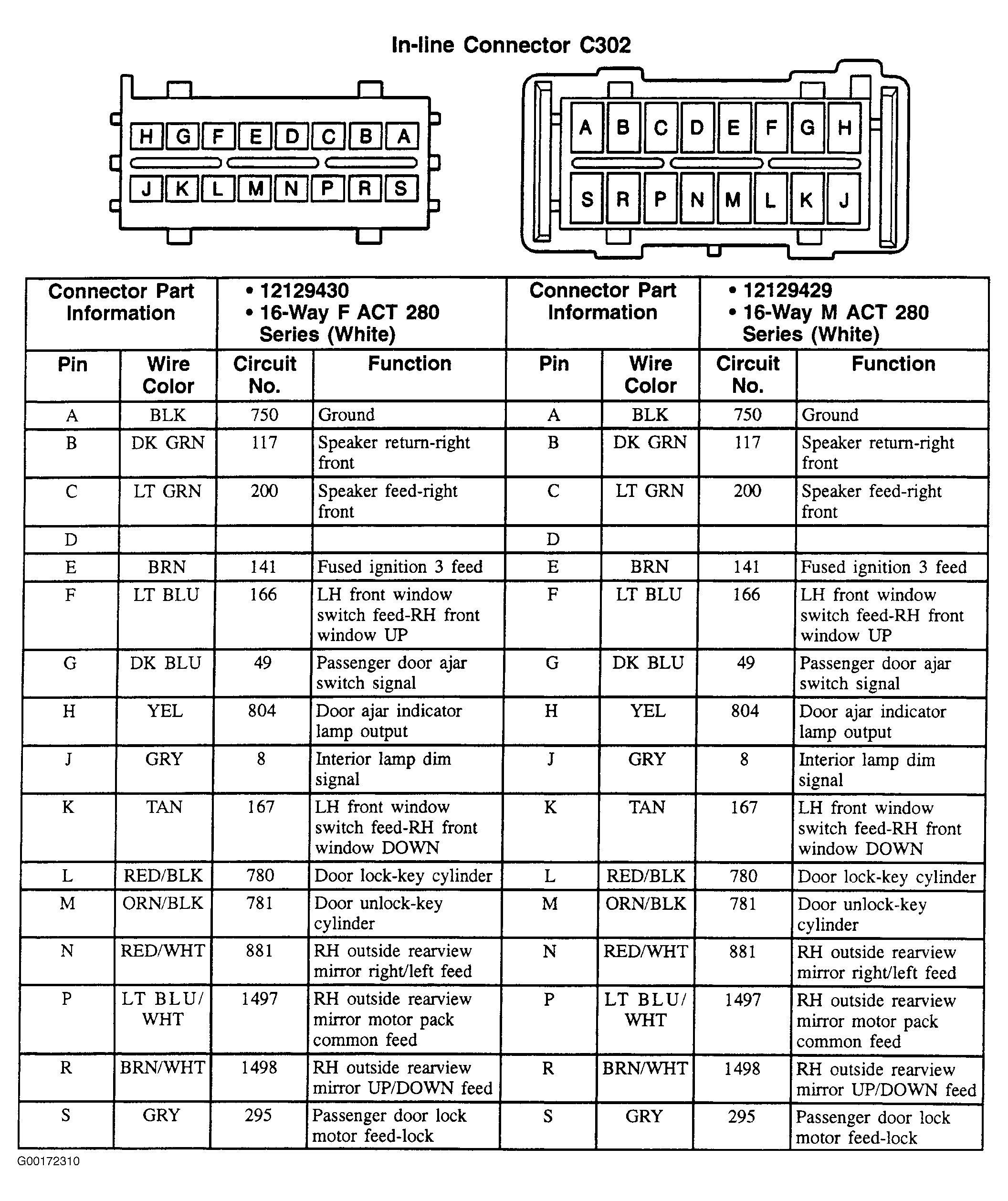

Fig 1: C302 - 16-Pin Connector (White)

G00172310

Courtesy of GENERAL MOTORS CORP.
