Connectors C101 To C407: C303

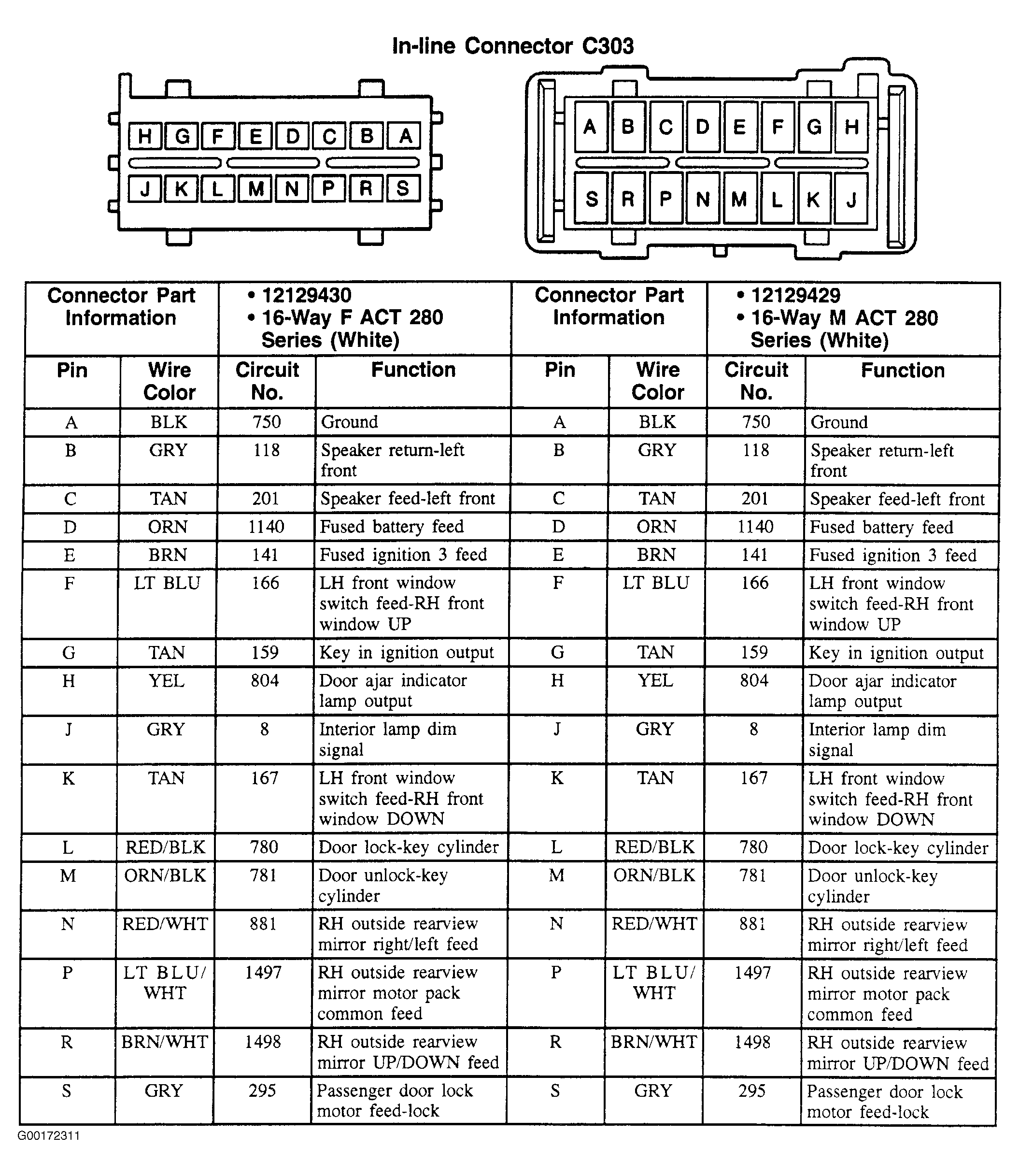

Fig 1: C303 - 16-Pin Connector (White)

G00172311

Courtesy of GENERAL MOTORS CORP.
