Connectors C101 To C407: C400

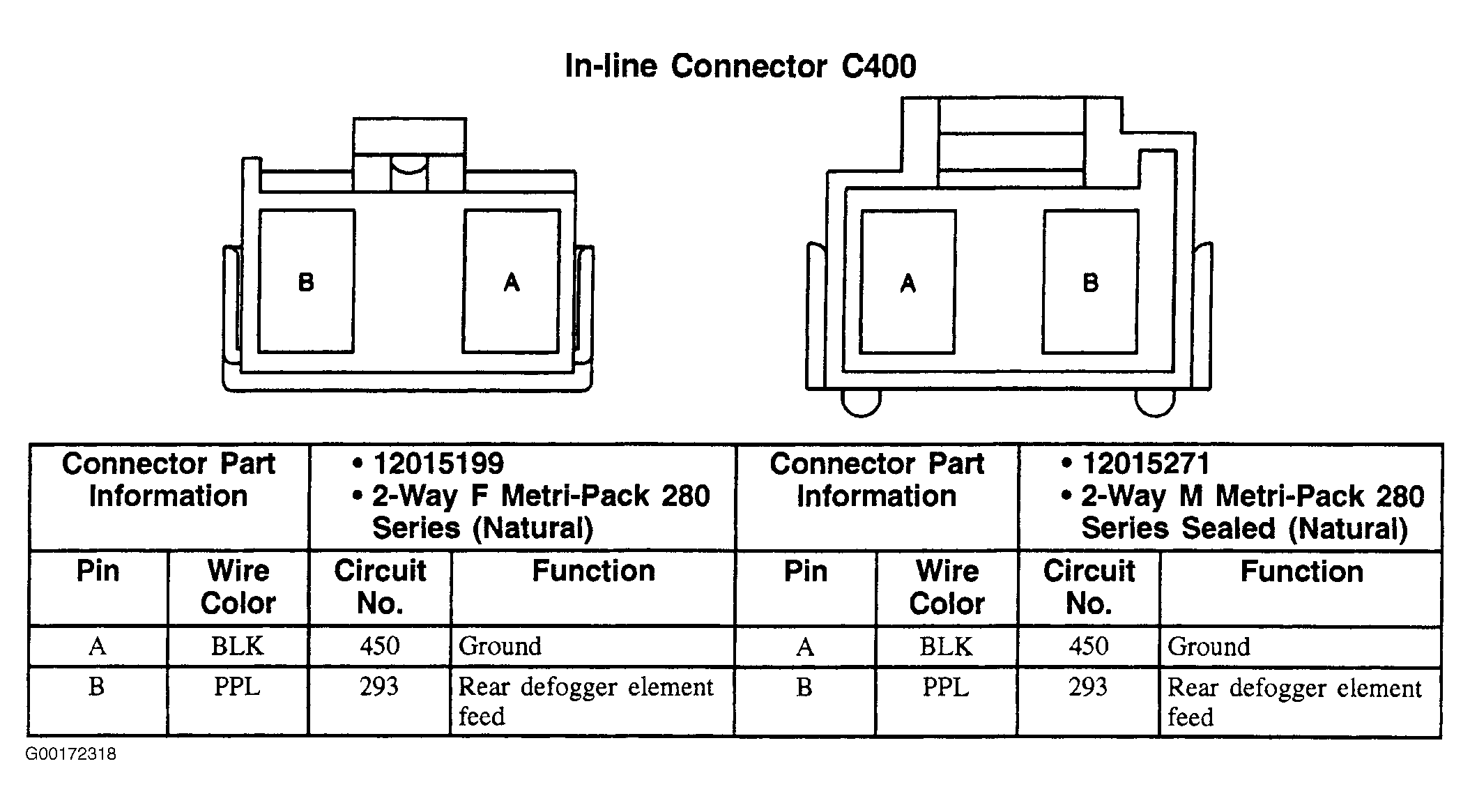

Fig 1: C400 - 2-Pin Connector (Natural)

G00172318

Courtesy of GENERAL MOTORS CORP.
