Connectors C101 To C407: C407

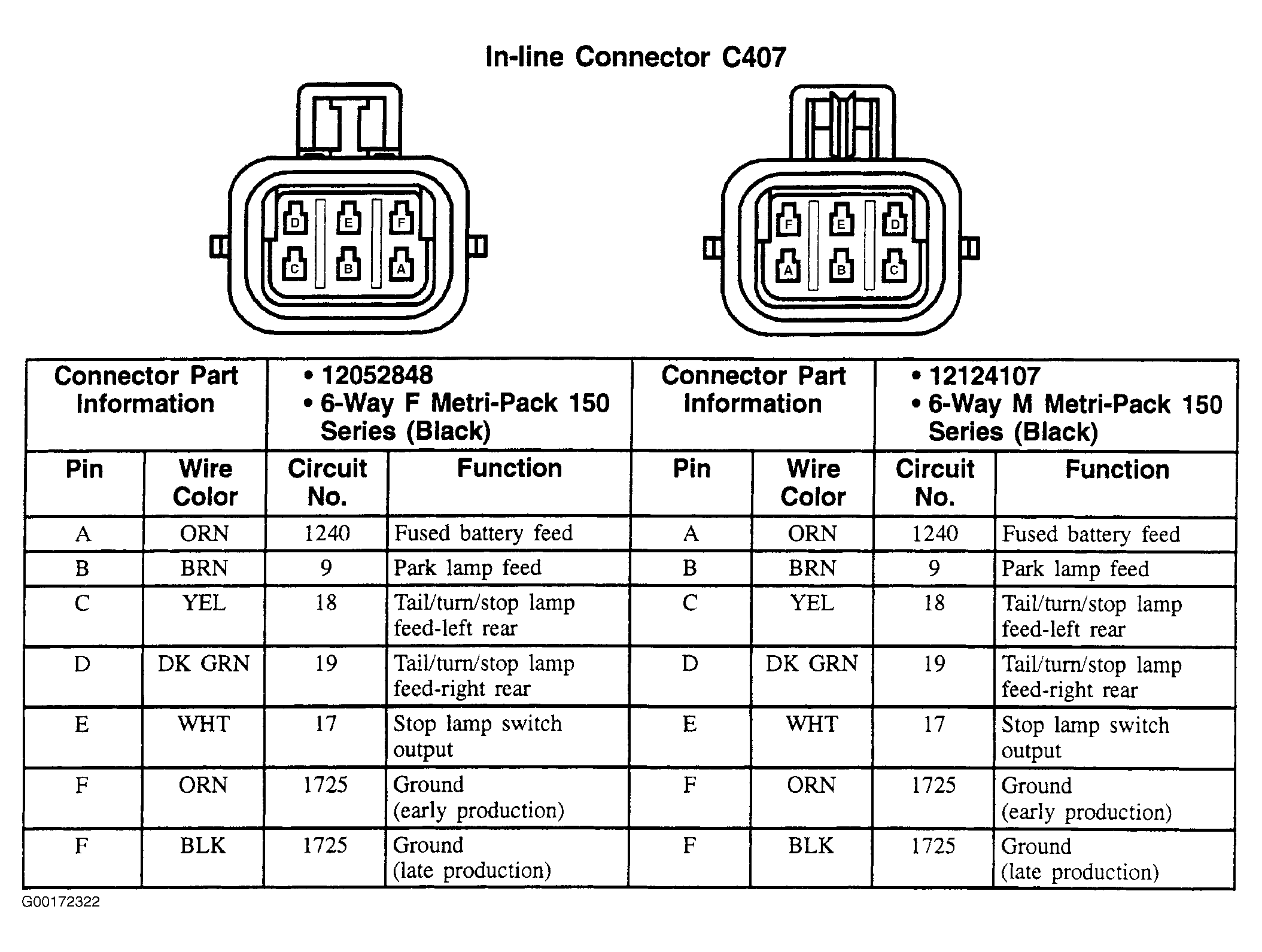

Fig 1: C407 - 6-Pin Connector (Black)

G00172322

Courtesy of GENERAL MOTORS CORP.
