Door Lock Switch Plate (LH & RH)

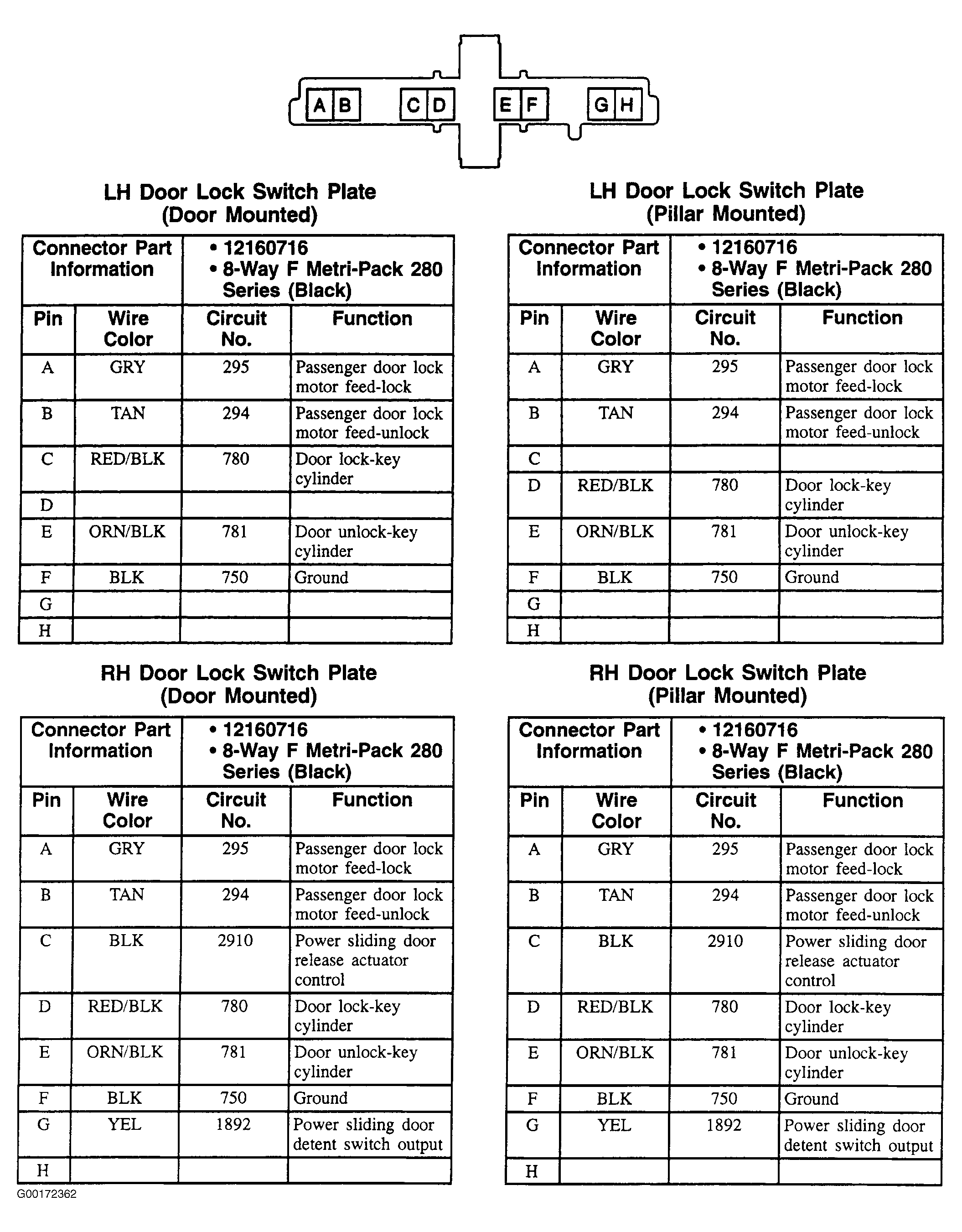

Fig 1: Door Lock Switch Plate (LH & RH) - 8-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
