Connector Terminal Identification
>>
Mirror Motor Pack (LH & RH)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Mirror Motor Pack (LH & RH)

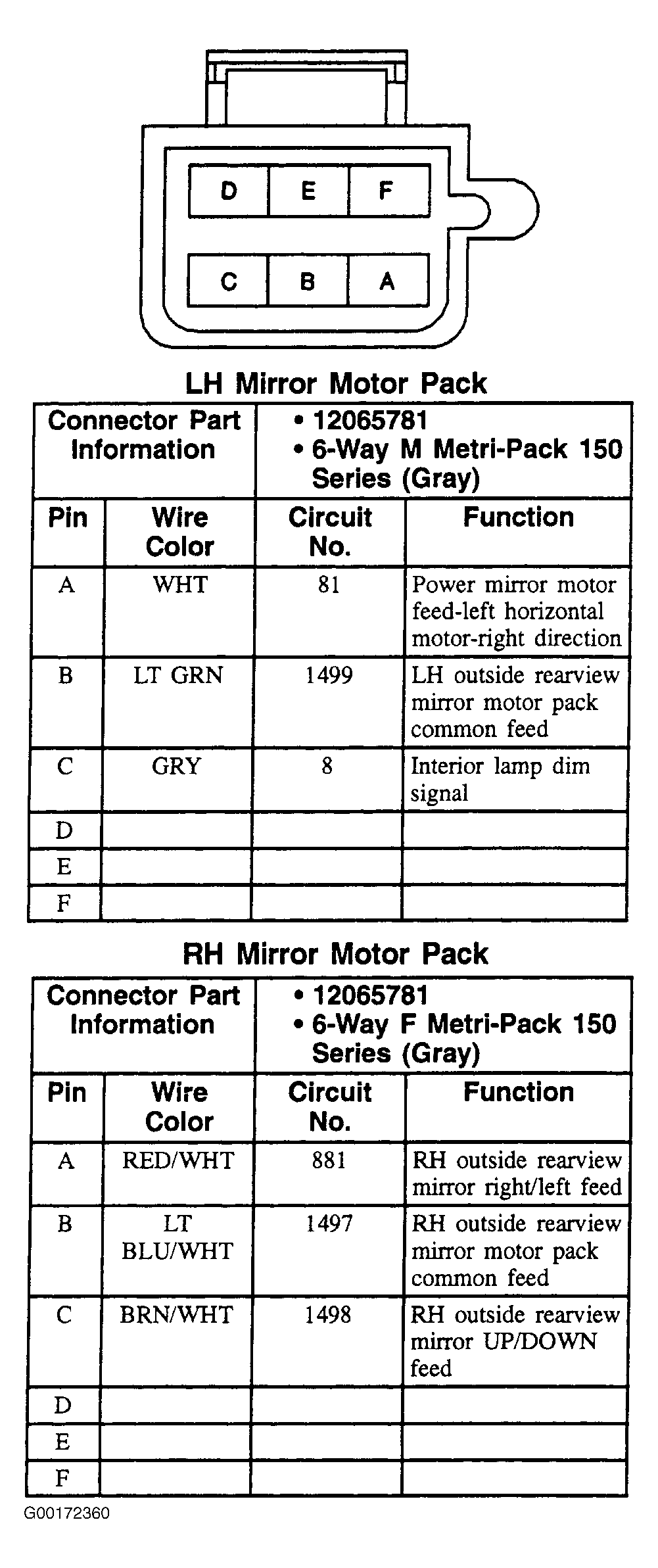

Fig 1: Mirror Motor Pack (LH & RH) - 6-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
