TAILLAMP (LH & RH)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
TAILLAMP (LH & RH)

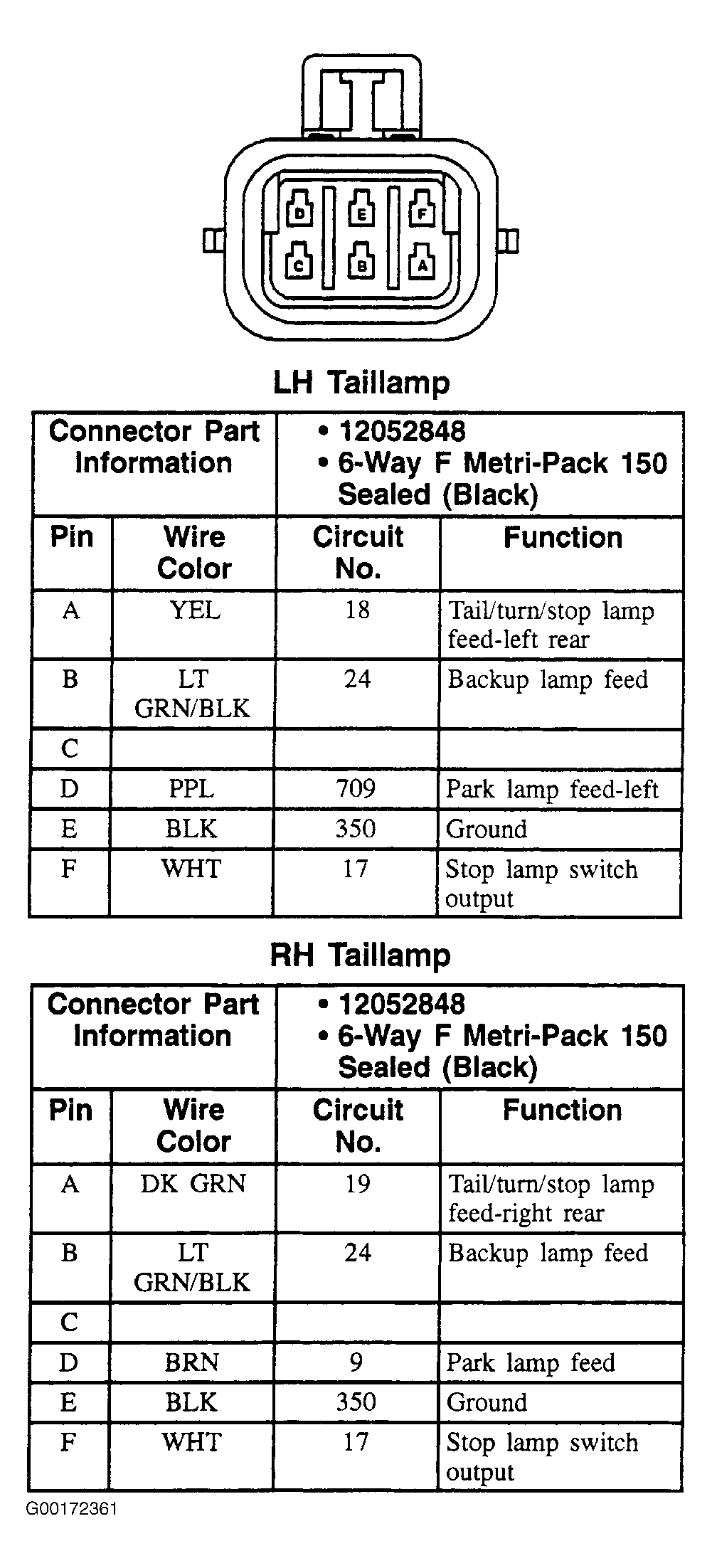

Fig 1: Taillamp (LH & RH) - 6-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
