Installation Procedure

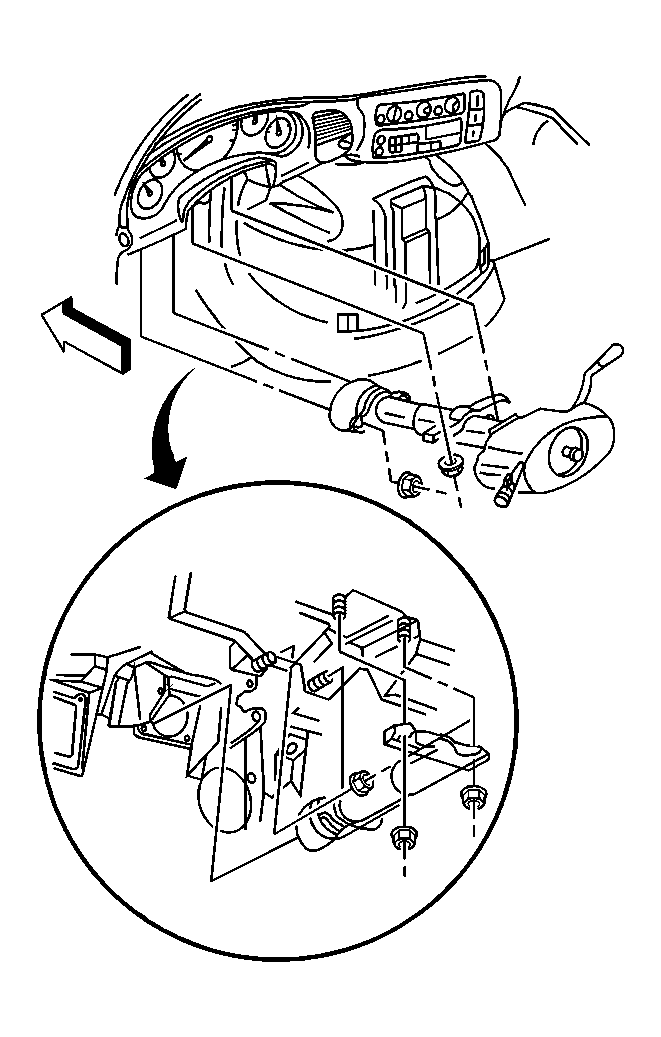

    Fig 1: Locating Lower/Upper Lower Steering Column Mounting Nuts
    GM284414Courtesy of GENERAL MOTORS CORP.
  1. Install the steering column through the cowl opening and onto the 2 lower studs.
  2. Raise the steering column into place.
  3. Loosely install the upper column mounting nuts. Do not tighten the nuts.
  4. Connect the auto trans shift lock control connector.
    CAUTION:

      In order to ensure the intended function of the steering column in a vehicle during a crash and in order to avoid personal injury to the driver, perform the following:

    • Tighten the steering column lower fasteners before you tighten the steering column upper fasteners. Failure to do this can damage the steering column.
    • Tighten the steering column fasteners to the specified torque. Overtightening the upper steering column fasteners could affect the steering column collapse.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  5. Install the lower column mounting nuts .

    Tighten

    • Tighten the lower column mounting nuts to 30 N.m (22 lb ft).
    • Tighten the upper column mounting nuts to 30 N.m (22 lb ft).
  6. Install the intermediate shaft to the steering column shaft. Refer to Intermediate Steering Shaft Replacement  .
  7. Install the transmission control linkage to the column shift lever. Refer to SHIFT LINKAGE .
  8. Install the steering wheel. Refer to Steering Wheel Replacement (With RPO CTF)  or Steering Wheel Replacement (Without RPO CTF)  .
    9. Fig 2: Identifying 48-way Connector Wiring Harness
    GM284413Courtesy of GENERAL MOTORS CORP.
  9. Connect the 48-way steering column wire harness to the instrument panel wire harness.

    Tighten  Tighten the wire harness connector bolt to 6 N.m (53 lb in).

  10. Install the driver's knee bolster deflector.
  11. Install the driver's knee bolster.
    12. Fig 3: Identifying J 42640
    GM333146Courtesy of GENERAL MOTORS CORP.
  12. Remove the J 42640 .
  13. Enable the SIR system. Refer to ACTIVATING SYSTEM in SIR.
  14. Connect the battery negative cable.
