Front Impact Bar

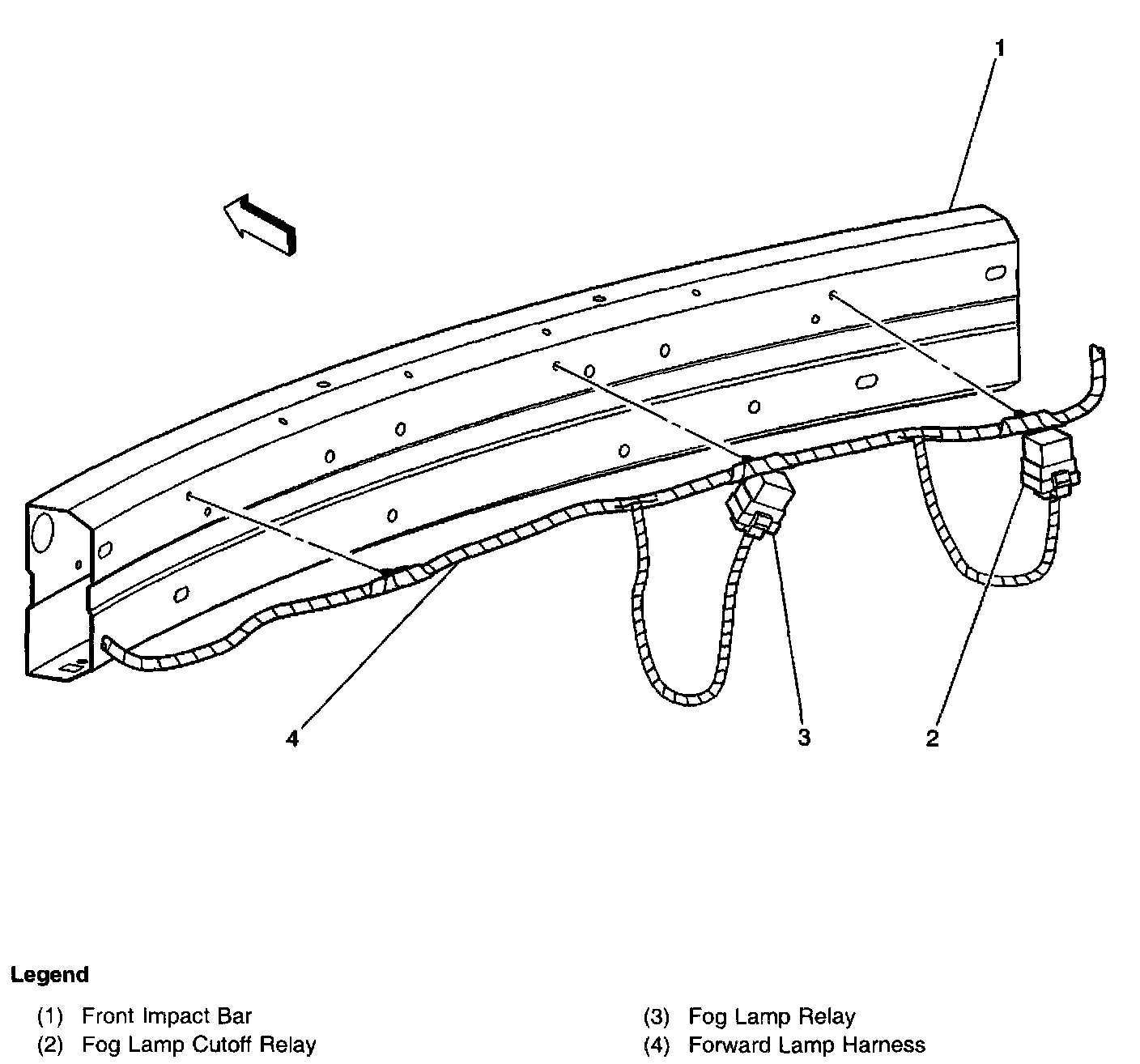

Fog Lamp Relays:

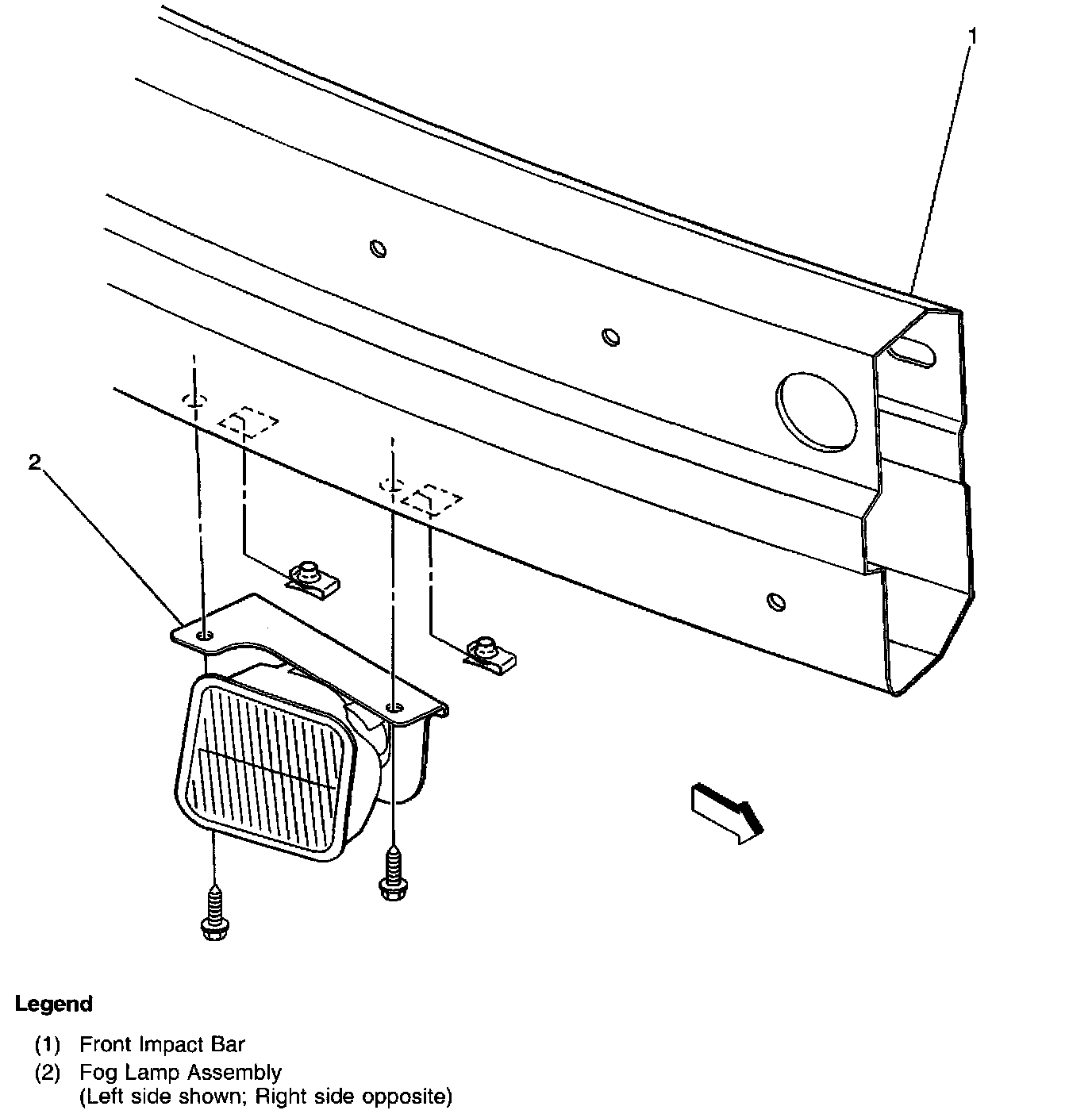

Fog Lamp Assembly:

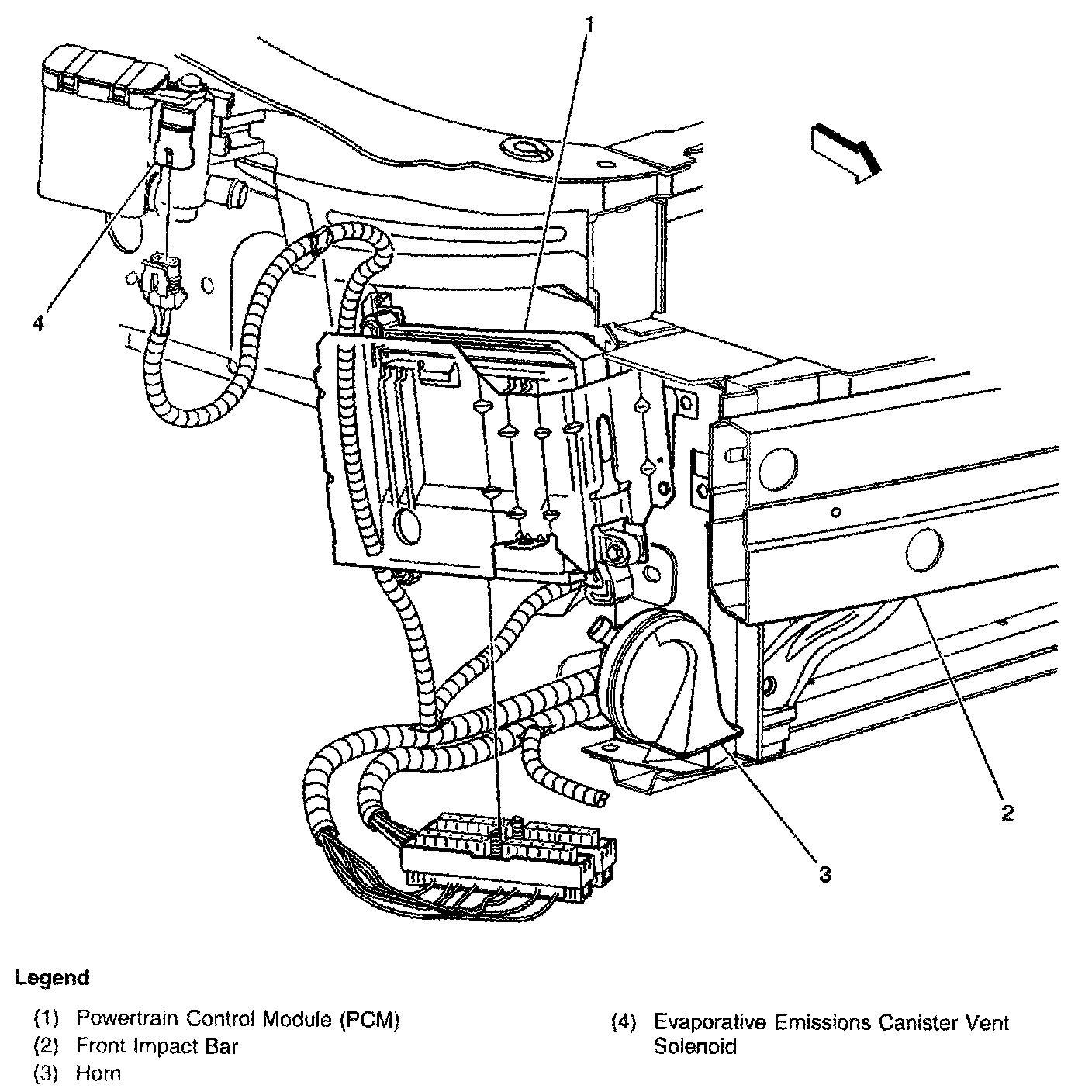

PCM, Horn And Evaporative Emissions Canister Vent Solenoid:
