Component Locations

NOTE: For fuse and circuit breaker identification, see FUSES & CIRCUIT BREAKERS .
COMPONENT LOCATIONS

Component Location
Convenience Center Right Front Of Passenger Compartment. See Fig 1
Door Lock Relay Right Front Of Passenger Compartment. See Fig 2
Fuse Block Left End Of Instrument Panel
Front Door Lock Motor In Respective Front Door. See Fig 3
Front Door Lock Switch On Respective Front Door. See Fig 3
Rear Door Lock Motor In Respective Rear Door. See Fig 4
Luggage Compartment Lid Release Solenoid Inside Luggage Compartment Lid. See Fig 5
Multi-Function Alarm Module Right Front Of Passenger Compartment. See Fig 1
Program Connector Left Front Of Luggage Compartment. See Fig 6
Remote Control Door Lock Receiver Left Front Of Luggage Compartment. See Fig 6
C200 (23 Cavities) Behind Left Kick Panel. See Fig 7 .
G302 Under Passenger's Seat. See Fig 8 .
G304 Under Driver's Seat. See Fig 7 .
P500 Left Front Door-To-Door Jamb. See Fig 7 .
P600 Right Front Door-To-Door Jamb
P700 Left Front Door-To-Door Jamb
P800 Right Front Door-To-Door Jamb
S212 In Body Harness Approximately 105 cm (41 in) From P500
S227 In Body Harness Approximately 95 cm (37 in) From P500 Rearward
S227 (Folding Top) In Body Harness Approximately 117 cm (46 in) From P500 Rearward
S248 In Body Harness Approximately 62 cm (24 in) From P600 Rearward
S248 (Folding Top) In Body Harness Approximately 38 cm (15 in) From P500 Rearward
S300 In Body Harness Approximately 93 cm (37 in) From P600 Rearward
S300 (Folding Top) In Body Harness Approximately 102 cm (40 in) From P600 Rearward
S301 In Body Harness Approximately 41.5 cm (16 in) From Seat Belt Switch Connector Toward Left Side Of Car
S301 (Folding Top) In Body Harness Approximately 50 cm (20 in) From Seat Belt Switch Connector Toward Right Side Of Car
S303 (Sedan) In Body Harness Approximately 47 cm (18.5 in) From Park Brake Switch Toward Right Side Of Car
S307 In Body Harness Approximately 47 cm (18.5 in) From P500 Rearward
S330 In Body Harness Approximately 143 cm (56 in) From Left Tail/Stop Lamp Connector Forward
S331 In Body Harness Approximately 113 cm (45 in) From P600 Rearward
S331 (Folding Top) In Body Harness Approximately 122.5 cm (48 in) From P600 Rearward

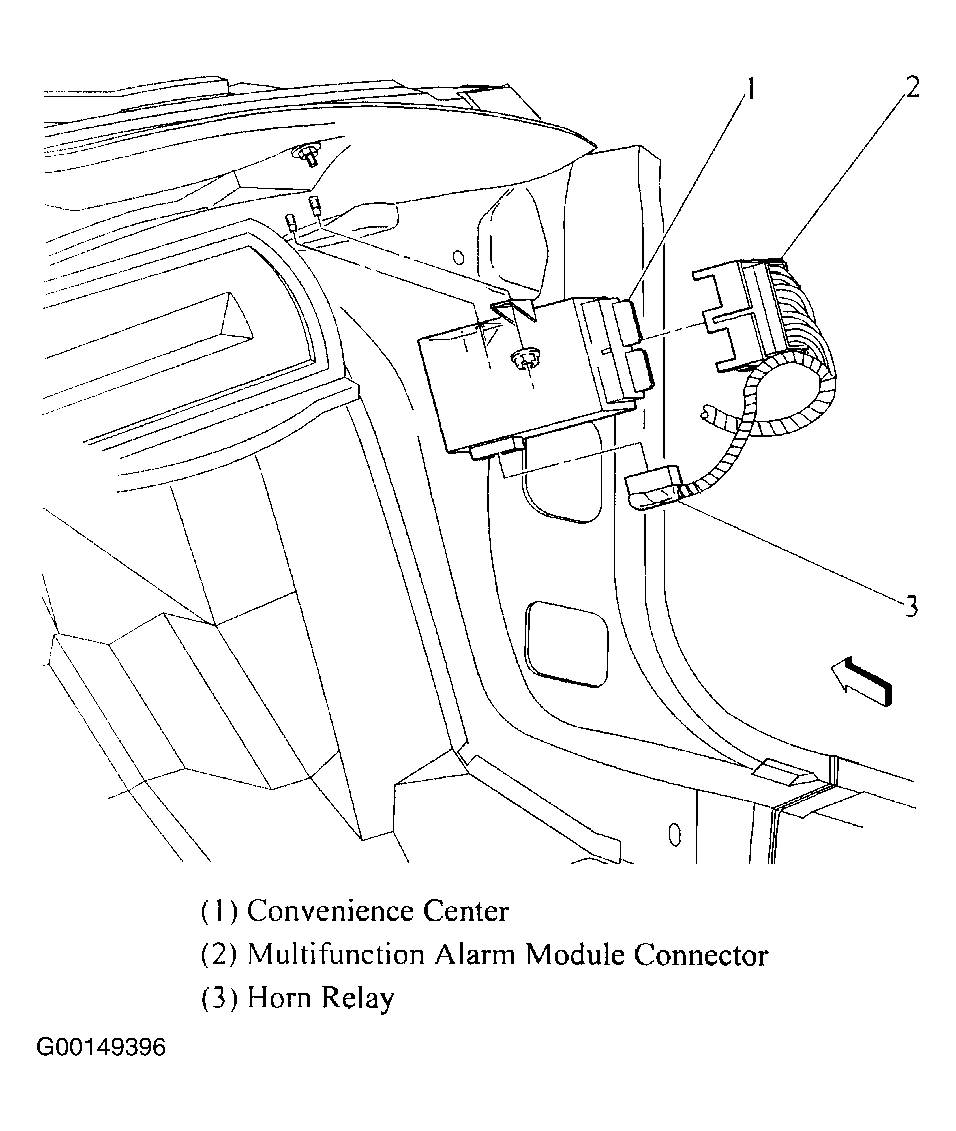

Fig 1: Locating Components In Right Front Passenger Compartment
G00149396Courtesy of GENERAL MOTORS CORP.

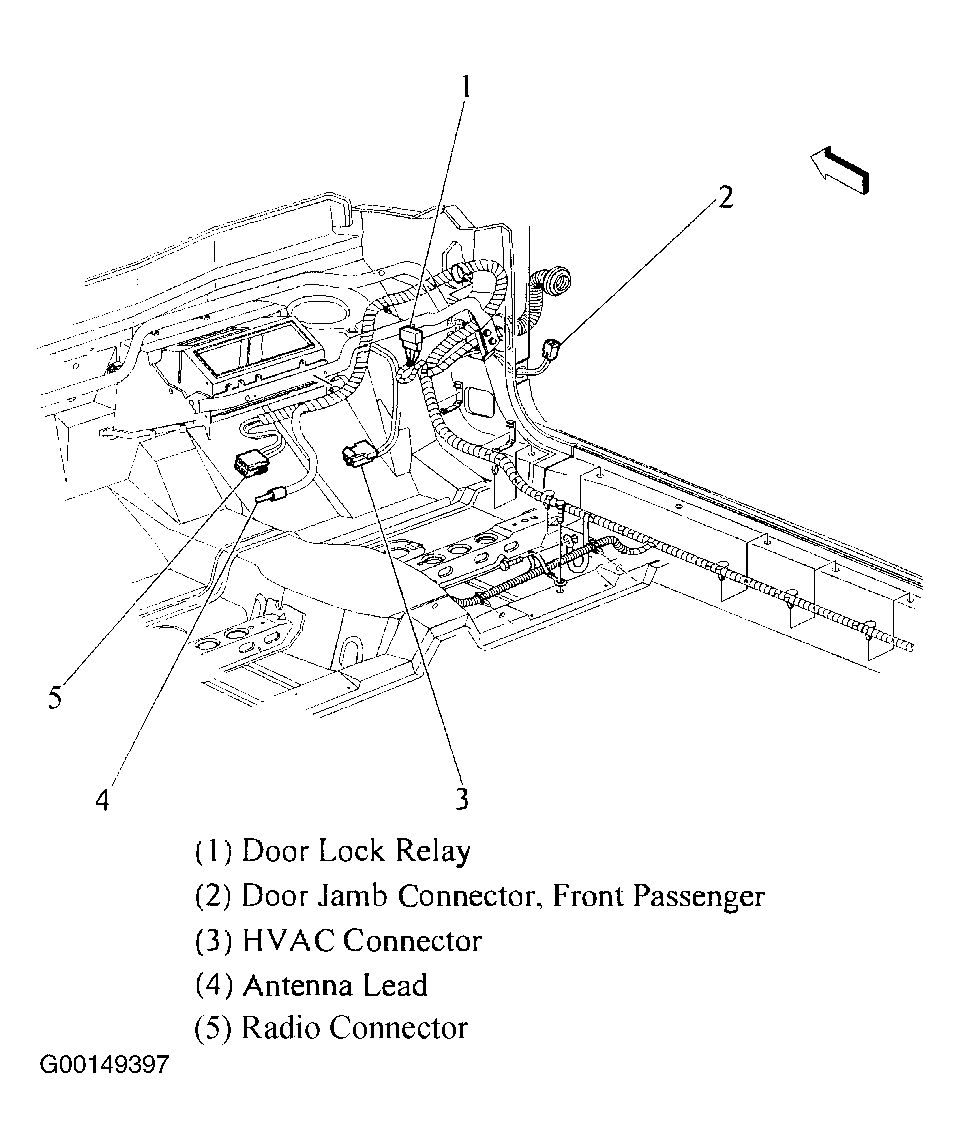

Fig 2: Locating Components In Right Front Instrument Panel Compartment
G00149397Courtesy of GENERAL MOTORS CORP.

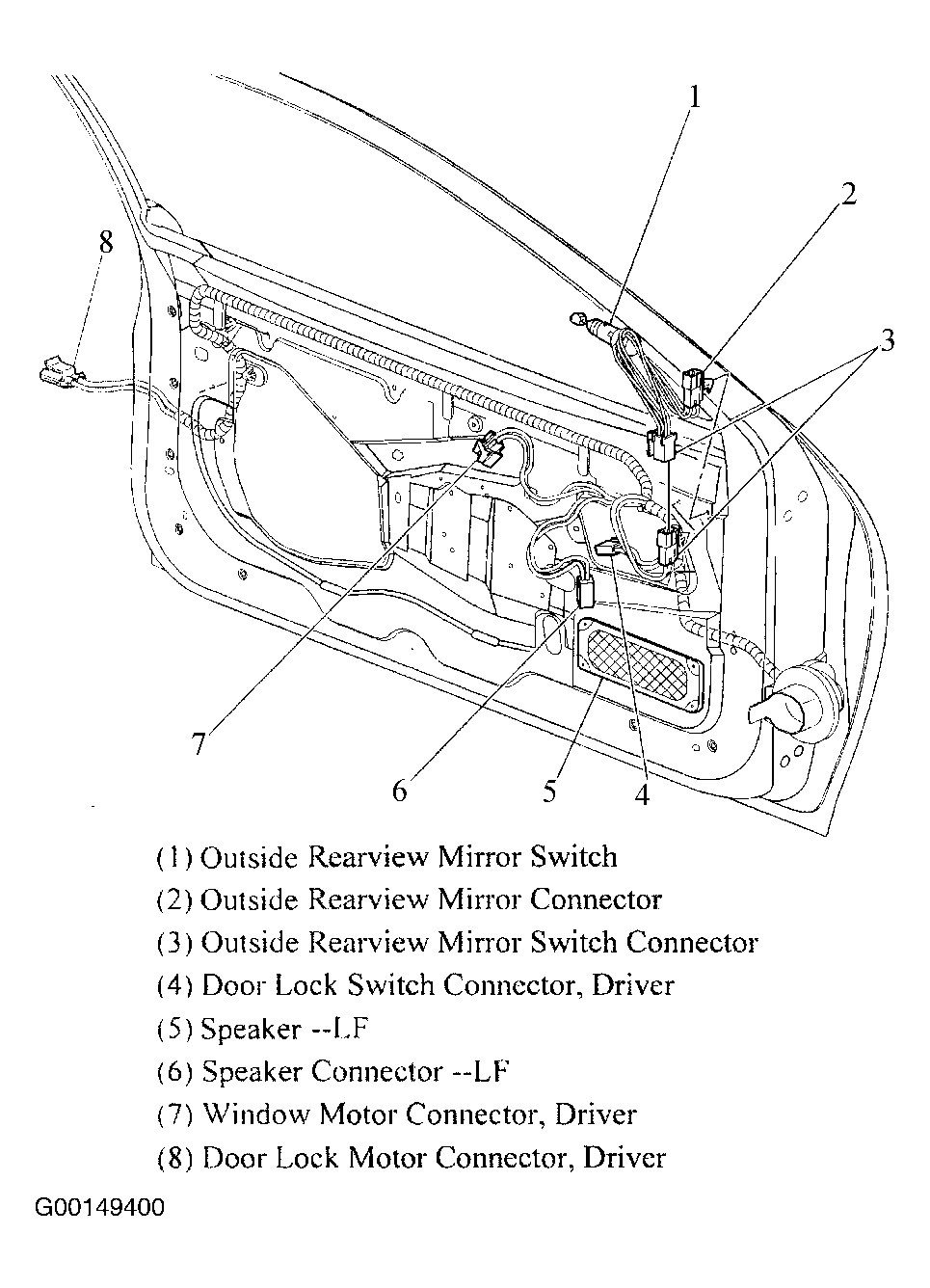

Fig 3: Locating Left Front Door Components (Right Similar)
G00149400Courtesy of GENERAL MOTORS CORP.

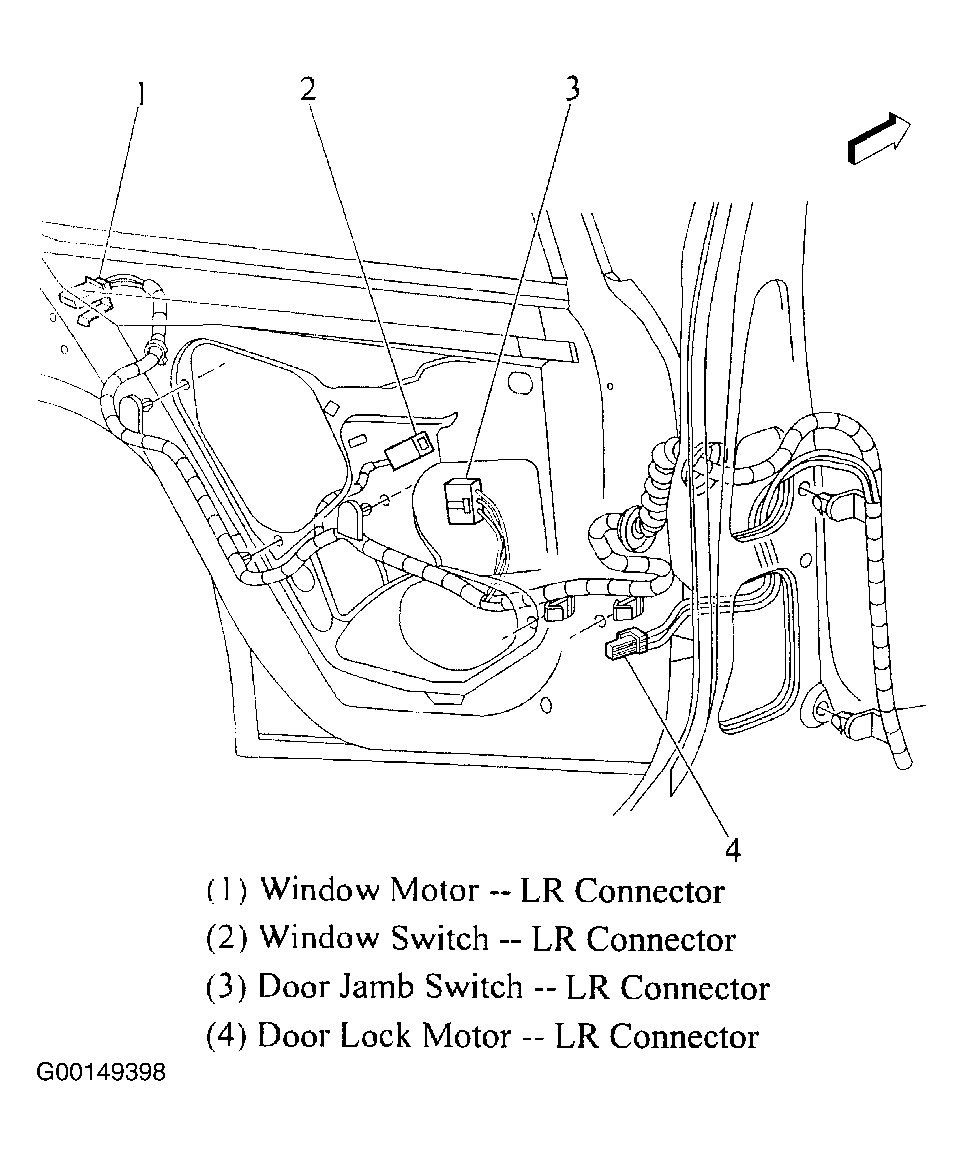

Fig 4: Locating Rear Door Components
G00149398Courtesy of GENERAL MOTORS CORP.

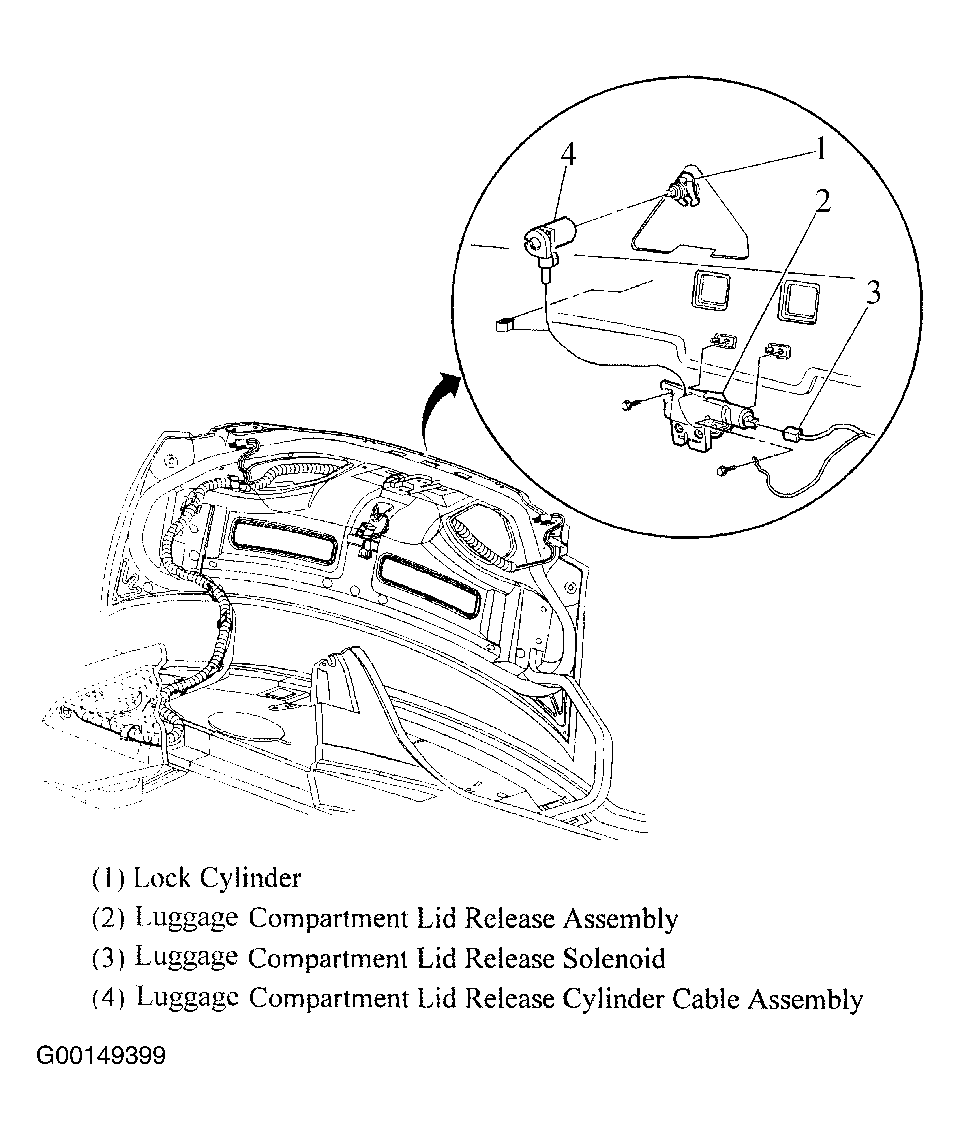

Fig 5: Locating Luggage Compartment Lid Components
G00149399Courtesy of GENERAL MOTORS CORP.

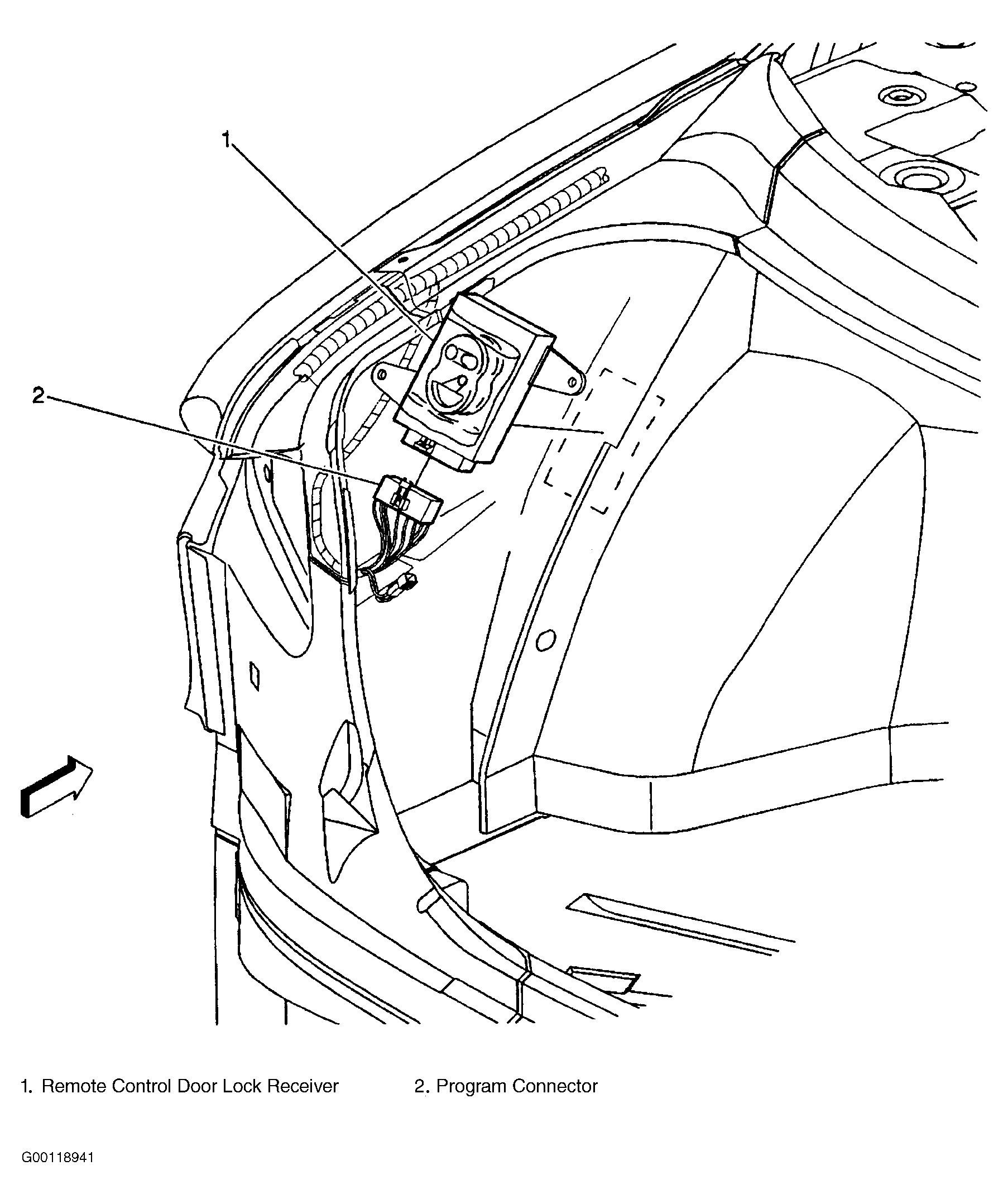

Fig 6: Locating Left Front Luggage Compartment Components
G00118941Courtesy of GENERAL MOTORS CORP.

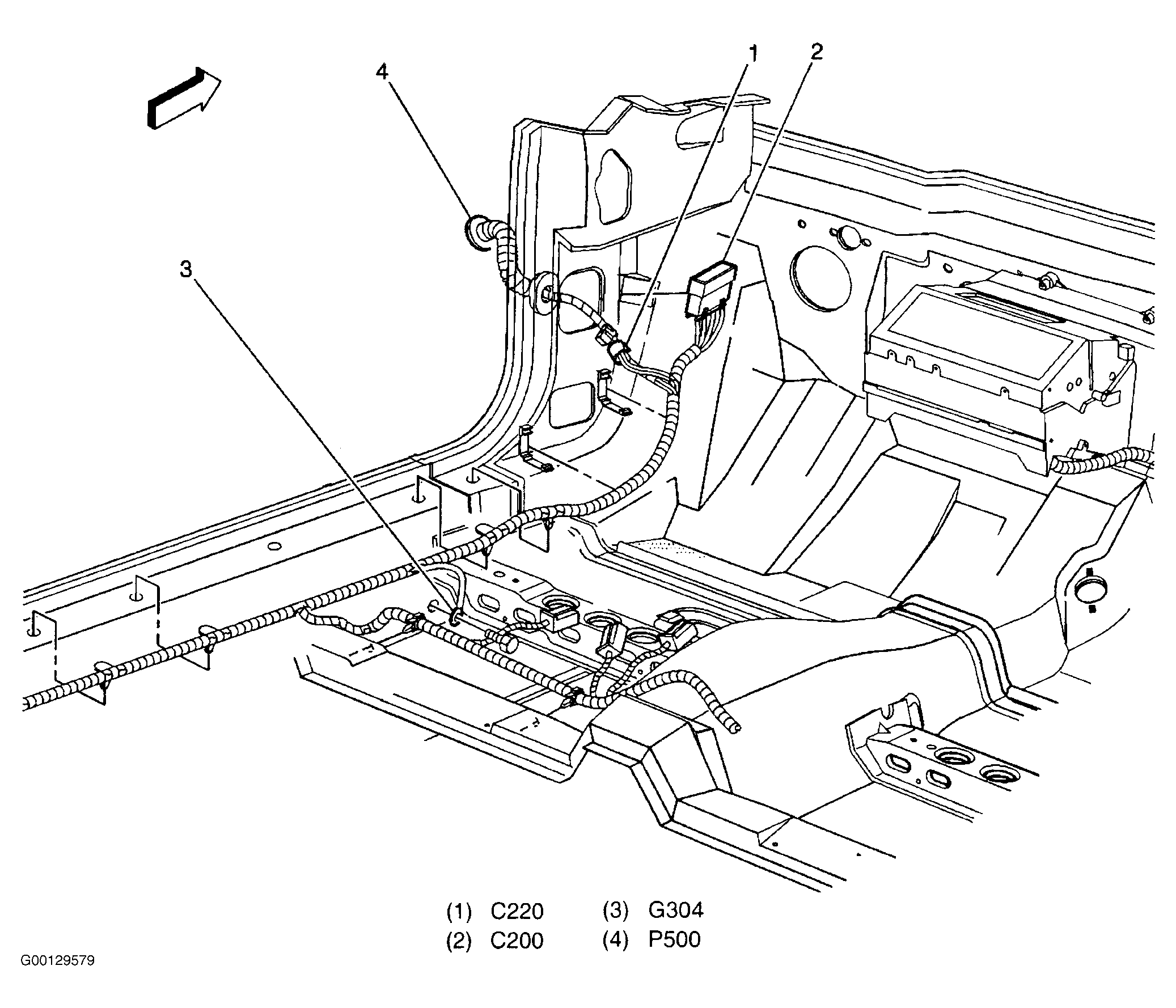

Fig 7: Locating C200, C220, G304 & P500
G00129579Courtesy of GENERAL MOTORS CORP.

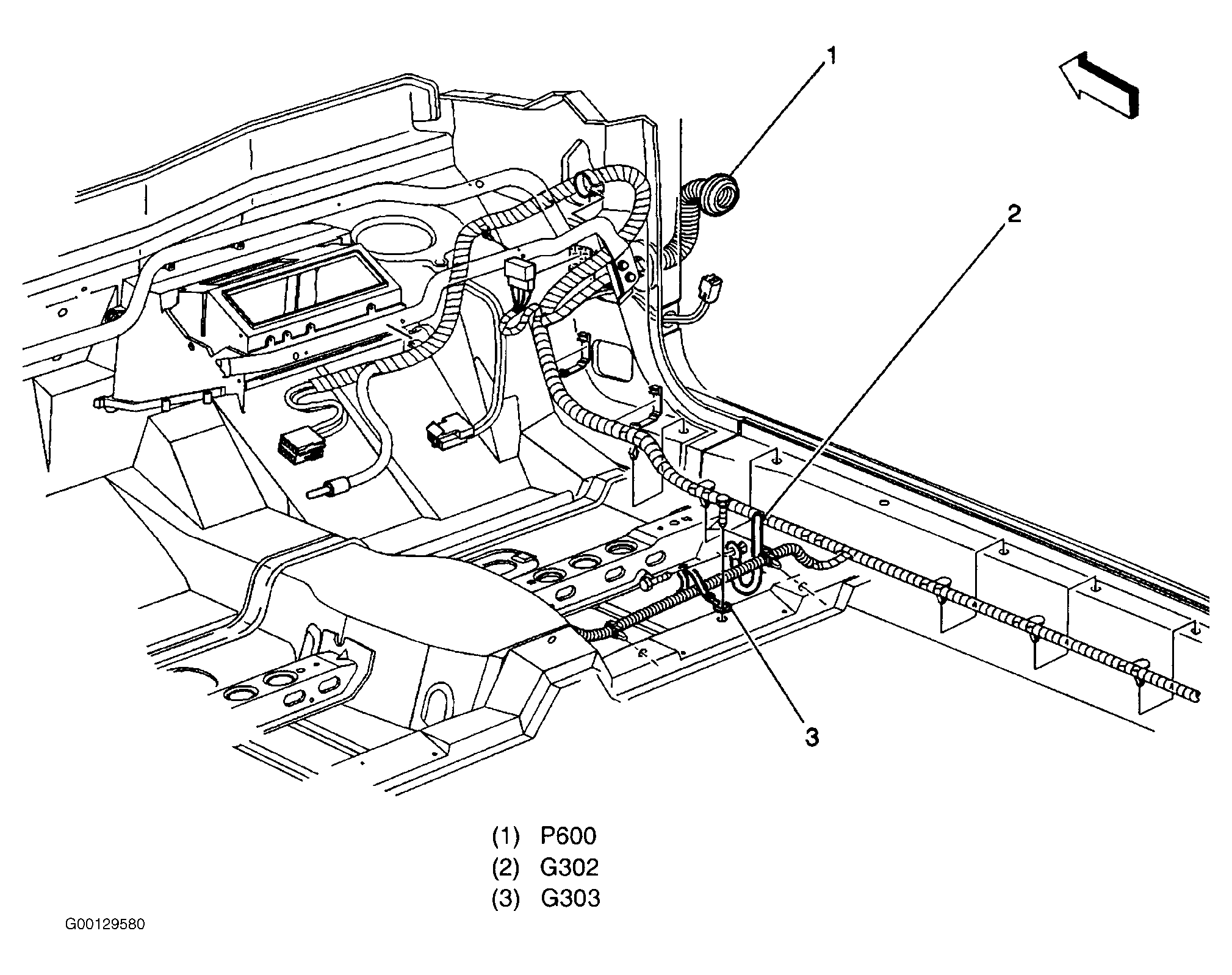

Fig 8: Locating G302 & P600
G00129580Courtesy of GENERAL MOTORS CORP.
