EBTCM Connector End View

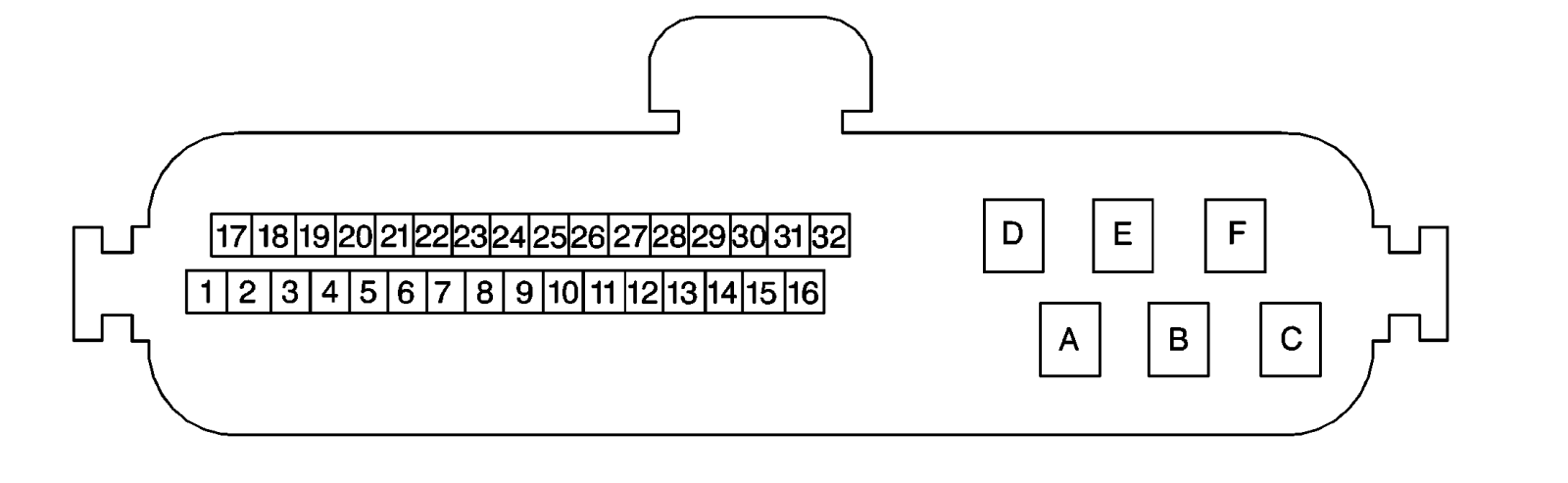

EBTCM CONNECTOR END VIEW & TERMINAL IDENTIFICATION
| Connector Part Information | 12160888 32 Way F Micro-Pack 100 Series (NAT) |
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BRN | 641 | Ignition positive voltage (ON) |
| B | BLK/WHT | 1251 | Ground |
| C | GRY | 1787 | Motor feed (High) (Magna steer) |
| D | RED | 1242 | Battery positive voltage (Solenoid valve) |
| E | RED | 1642 | Battery positive voltage (Pump Motor) |
| F | WHT | 345 | Motor feed (Low) (Magna Steer) |
| 3-Jan | - | - | Not Used |
| 4 | LT BLU | 1764 | Steering wheel position sensor (SWPS) - B |
| 5 | - | - | Not Used |
| 6 | TAN/BLK | 464 | Delivered torque |
| 7 | GRY | 1524 | Back up lamp switch input (JL4) |
| 8 | - | - | Not Used |
| 9 | LT BLU | 20 | Stoplamp switch input |
| 10 | LT BLU | 1122 | Class 2 Serial Data |
| 11 | GRY | 1056 | +5 volt reference |
| 12 | BLK | 884 | LR Wheel Speed Sensor (High) |
| 13 | WHT | 883 | RR Wheel Speed Sensor (High) |
| 14 | TAN | 833 | RF Wheel Speed Sensor (High) |
| 15 | YEL | 873 | LF Wheel Speed Sensor (High) |
| 16 | - | - | Not Used |
| 17 | LT BLU | 914 | SWPS Pulse |
| 18 | - | - | Not Used |
| 19 | WHT | 1765 | Brake Pressure Deferential Switch Input ( Without JL4) |
| 19 | LT BLU | 1659 | Brake Pressure Deferential Switch Input (JL4) |
| 20 | LT GRN | 1763 | SWPS A |
| 21 | DK BLU | 910 | Yaw Rate Sensor Input (W/ JL4) |
| 22 | LT GRN/BLK | 1338 | Lateral Accelerometer Input (W/ JL4) |
| 23 | LT BLU | 1059 | SWPS Signal |
| 24 | BLK | 901 | Brake Pressure Sensor Input (W/ JL4) |
| 25 | ORN/BLK | 463 | Requested Torque |
| 26 | - | - | Not Used |
| 27 | ORN/BLK | 556 | Sensor Ground |
| 28 | RED | 885 | LR Wheel Speed Sensor (Low) |
| 29 | BRN | 882 | RR Wheel Speed Sensor (Low) |
| 30 | DK GRN | 872 | RF Wheel Speed Sensor (Low) |
| 31 | LT BLU | 830 | LF Wheel Speed Sensor (Low) |
| 32 | - | - | Not Used |
