Power Door Lock Control Module: Locations

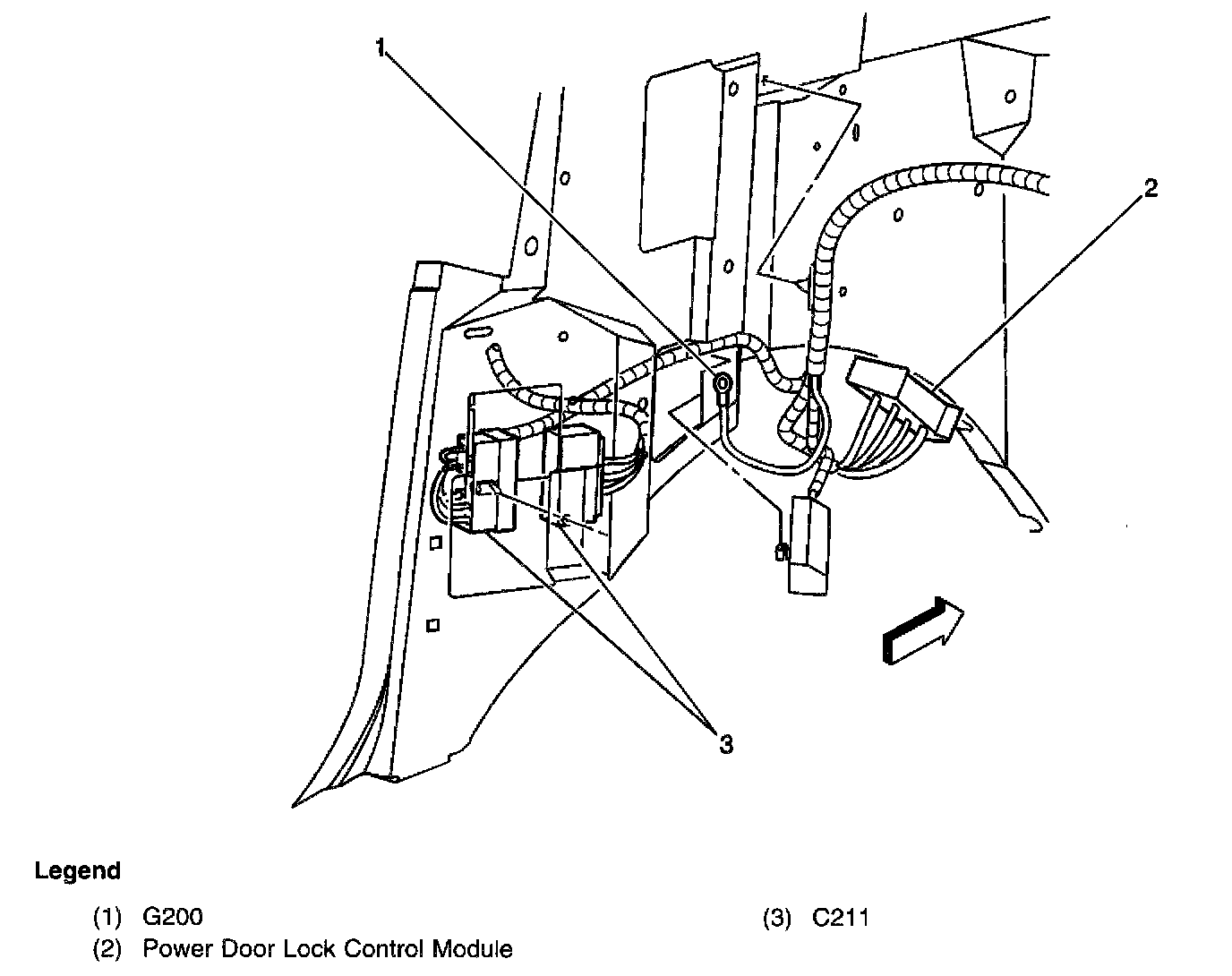

Front Crossbody Wiring (Left):

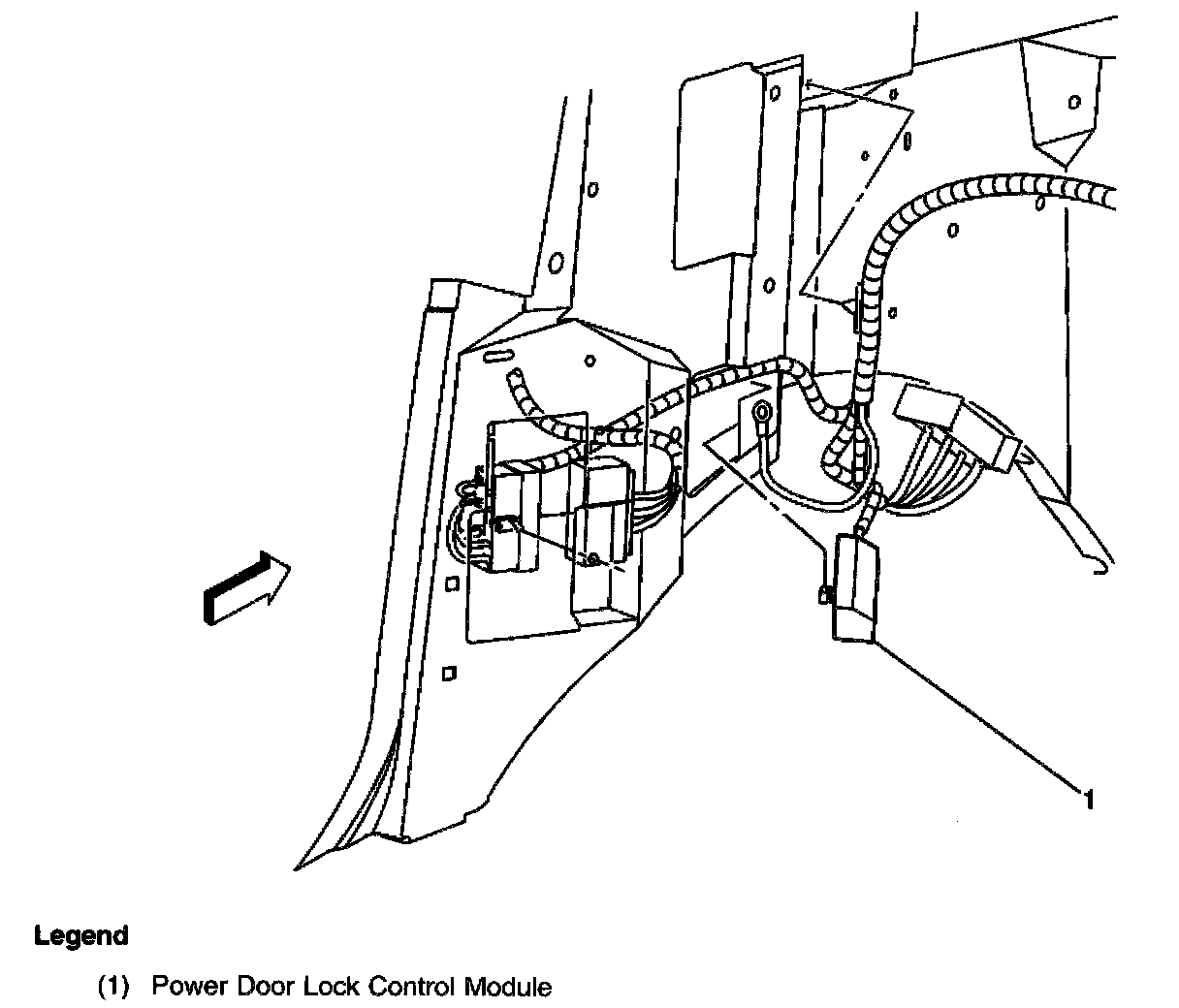

Power Door Lock Control Module:





In the left kick panel
