Instrument Panel Fuse Block

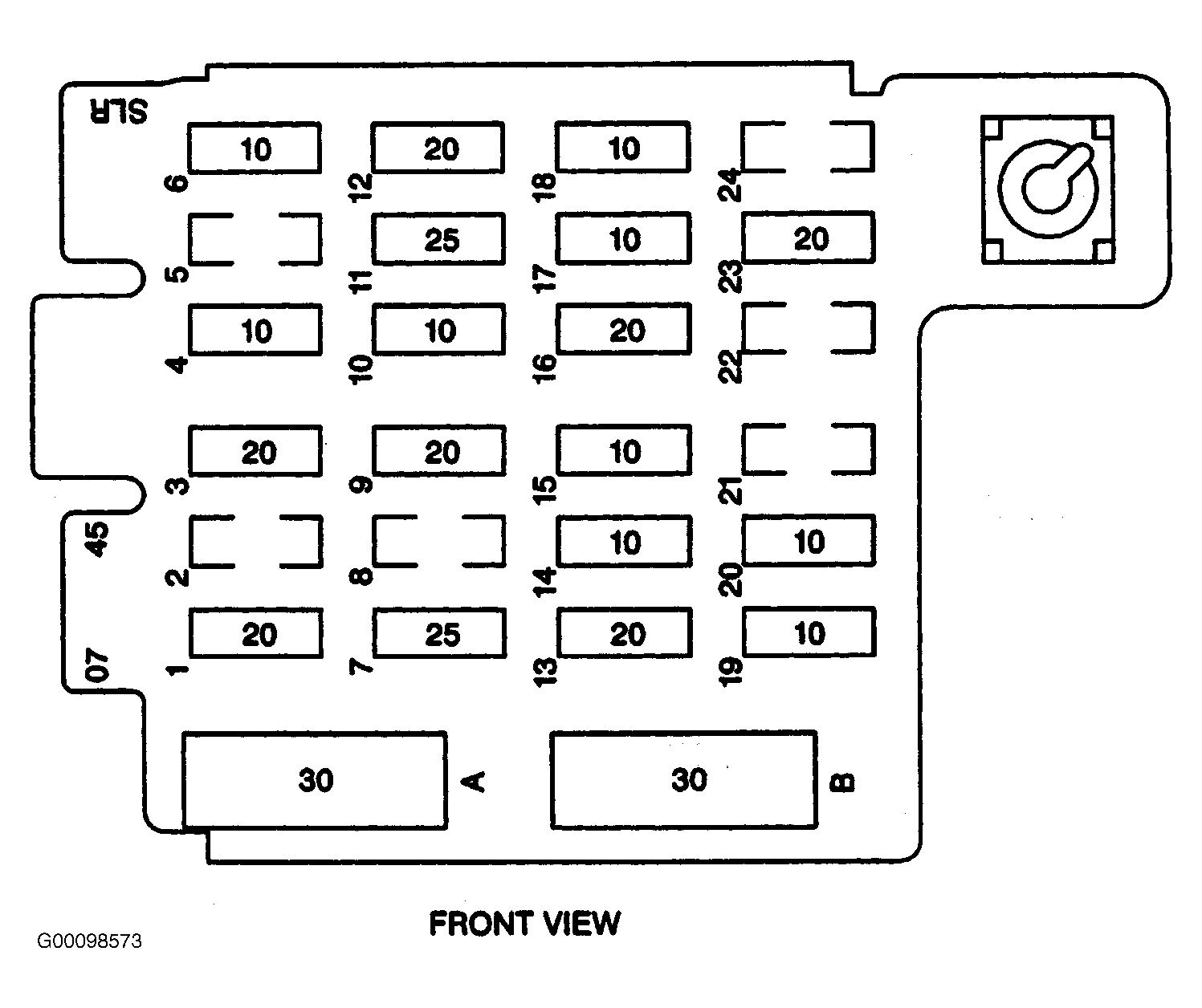

Fig 1: Front View of Instrument Panel Fuse Block (1996)
G00098573Courtesy of GENERAL MOTORS CORP.

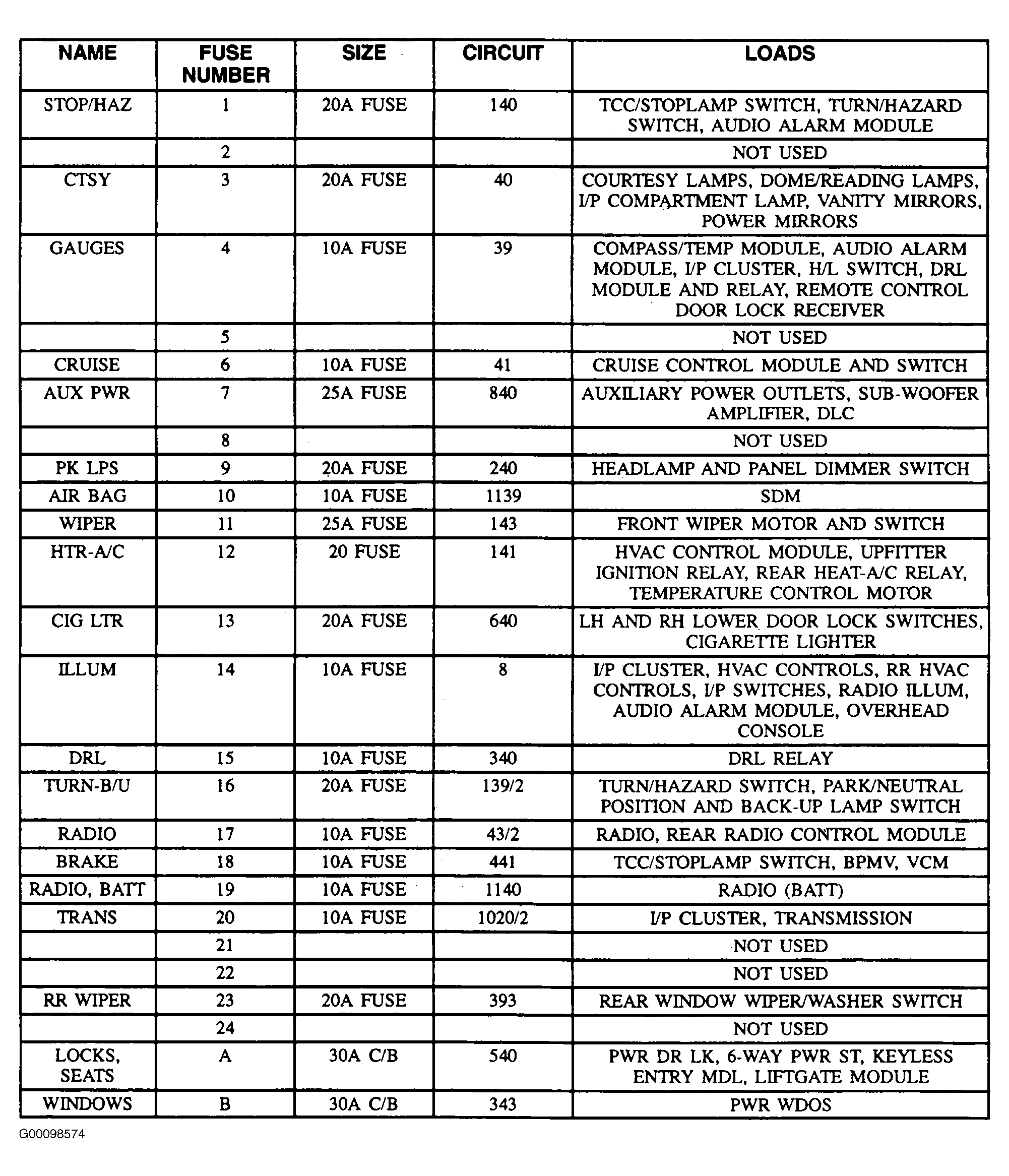

Fig 2: Instrument Panel Fuse Block Identification (1996)
G00098574Courtesy of GENERAL MOTORS CORP.

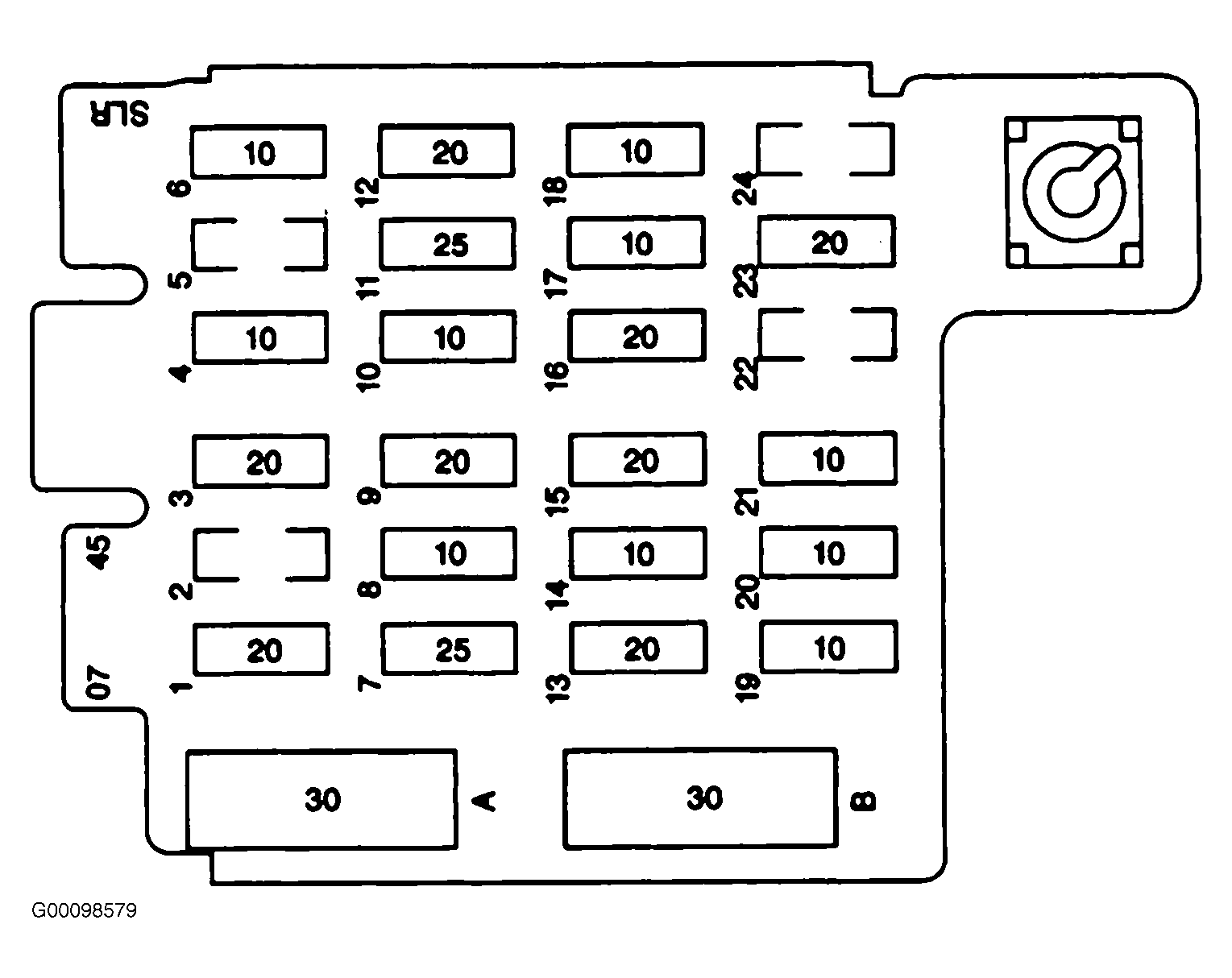

Fig 3: Front View of Instrument Panel Fuse Block (1997-99)
G00098579Courtesy of GENERAL MOTORS CORP.

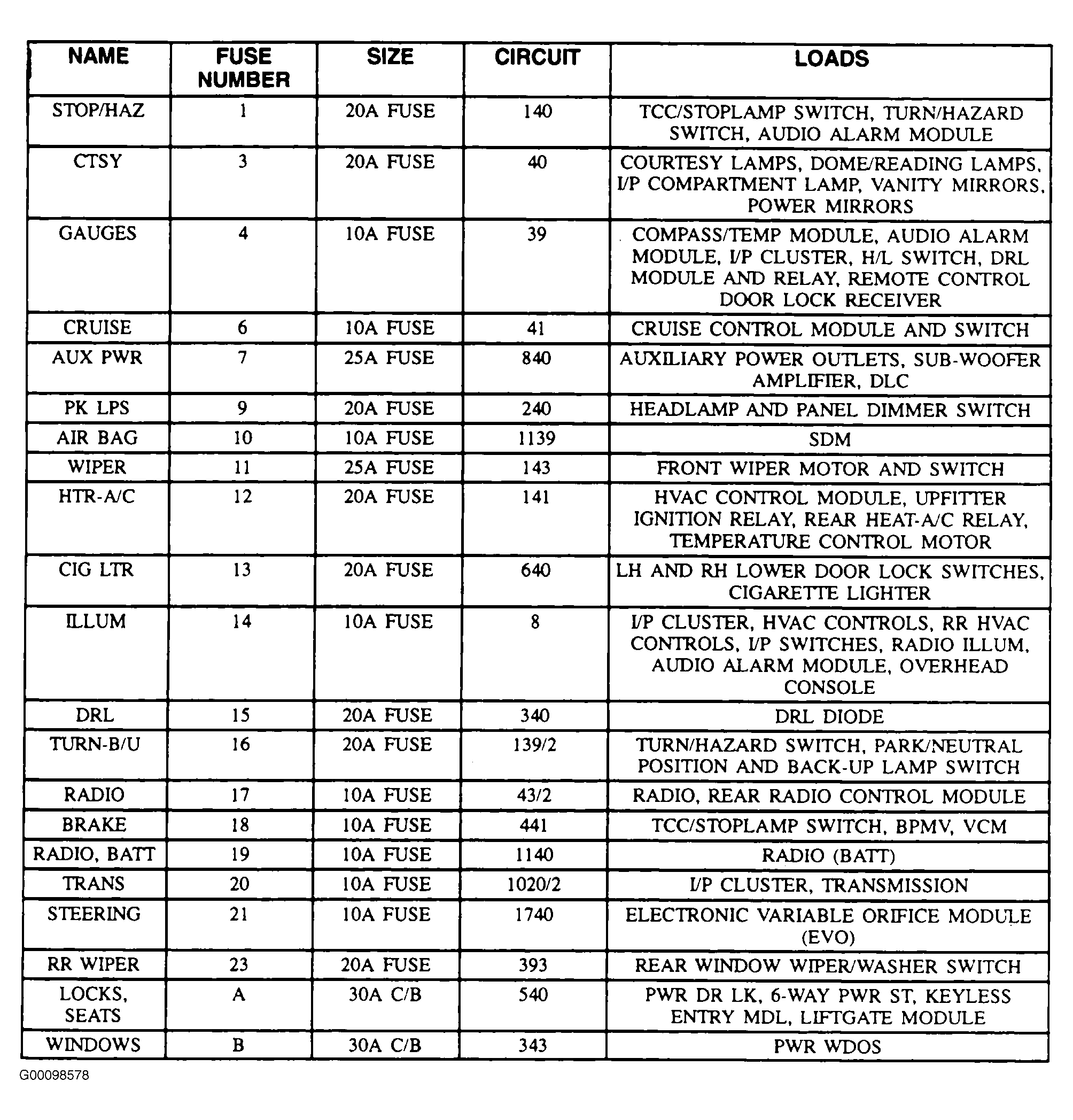

Fig 4: Instrument Panel Fuse Block Identification (1997)
G00098578Courtesy of GENERAL MOTORS CORP.

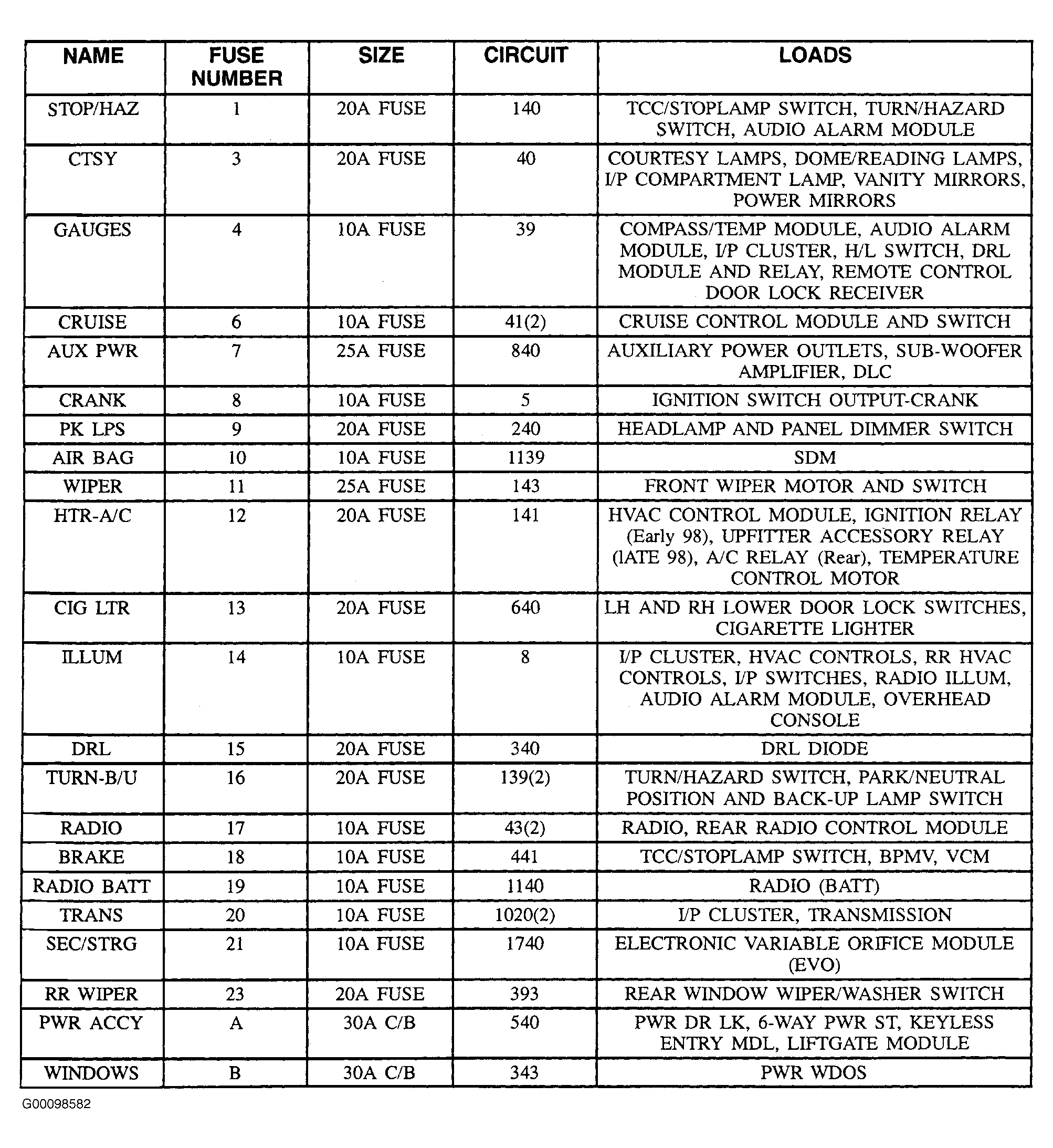

Fig 5: Instrument Panel Fuse Block Identification (1998-99)
G00098582Courtesy of GENERAL MOTORS CORP.

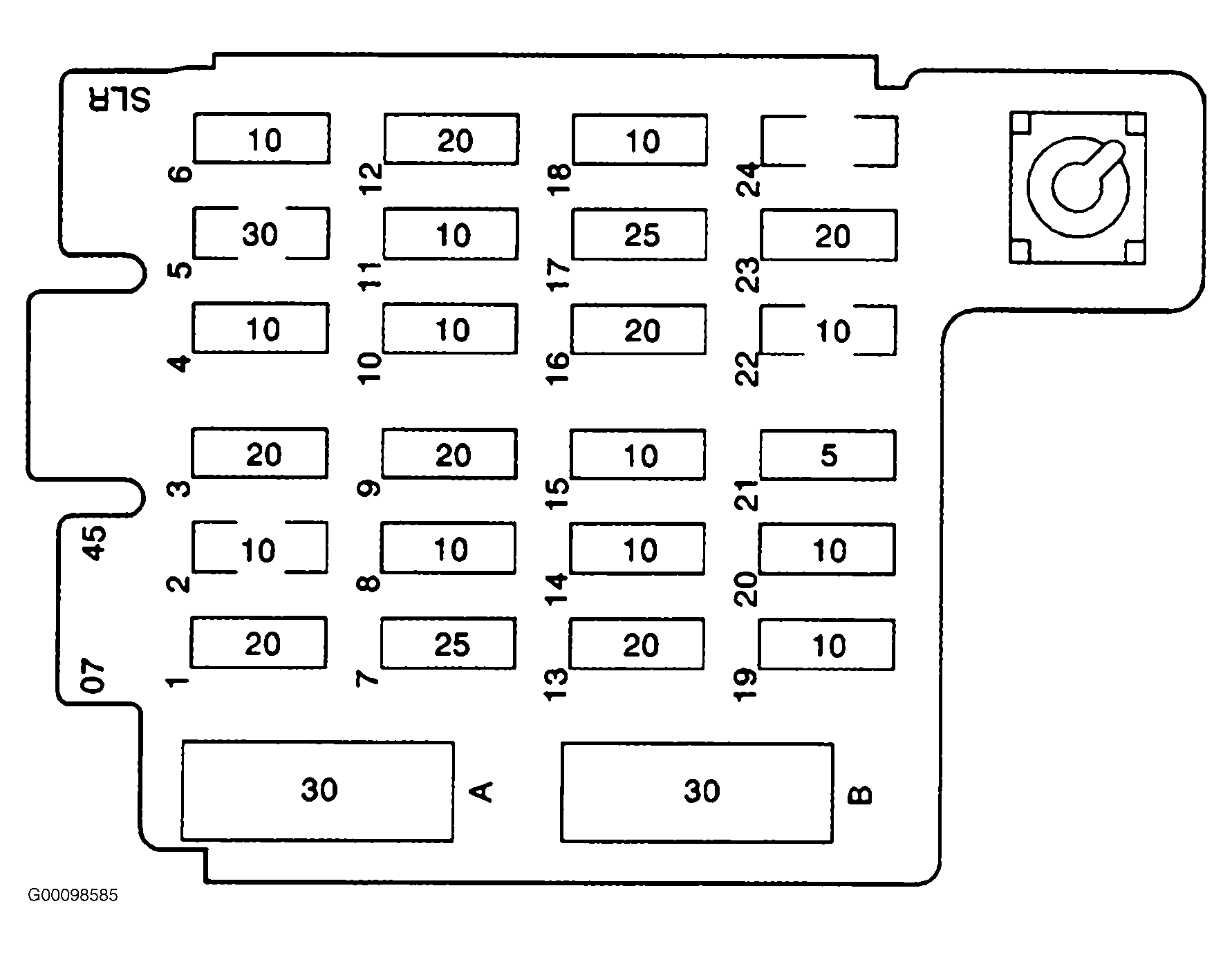

Fig 6: Front View of Instrument Panel Fuse Block (2000-01)
G00098585Courtesy of GENERAL MOTORS CORP.

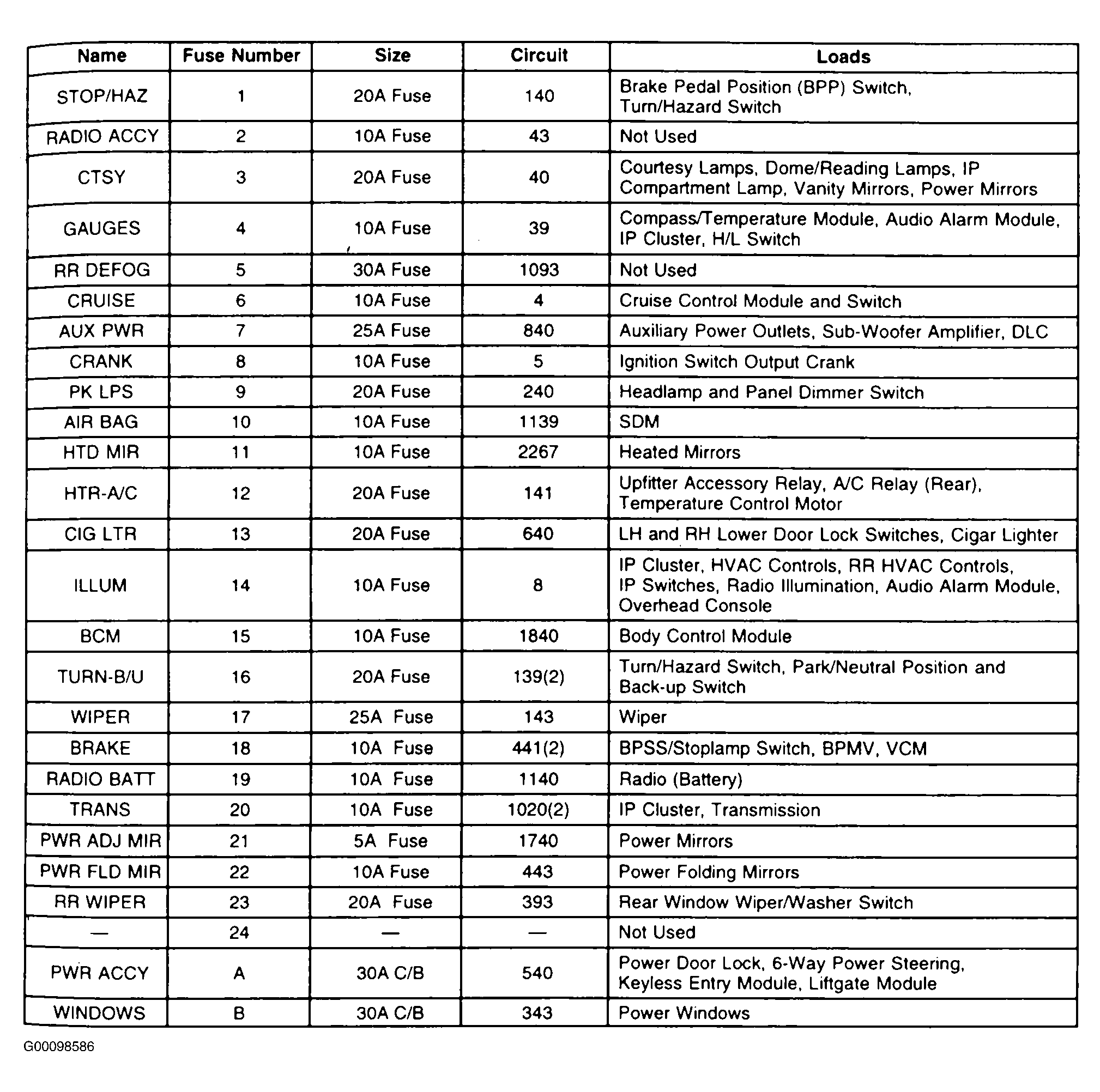

Fig 7: Instrument Panel Fuse Block Identification (2000)
G00098586Courtesy of GENERAL MOTORS CORP.

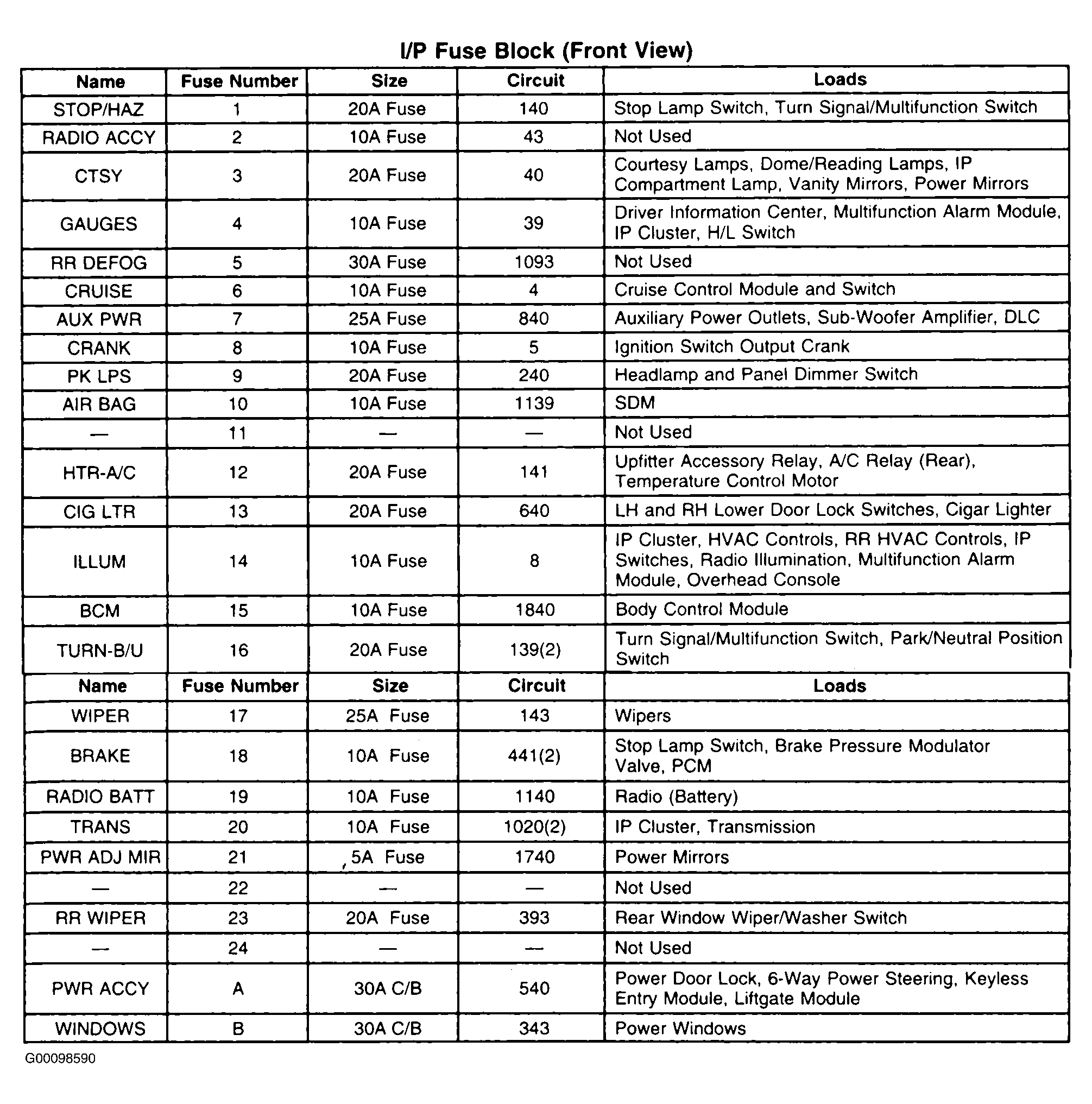

Fig 8: Instrument Panel Fuse Block Identification (01)
G00098590Courtesy of GENERAL MOTORS CORP.
