Wiper/Washer System Component Views

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

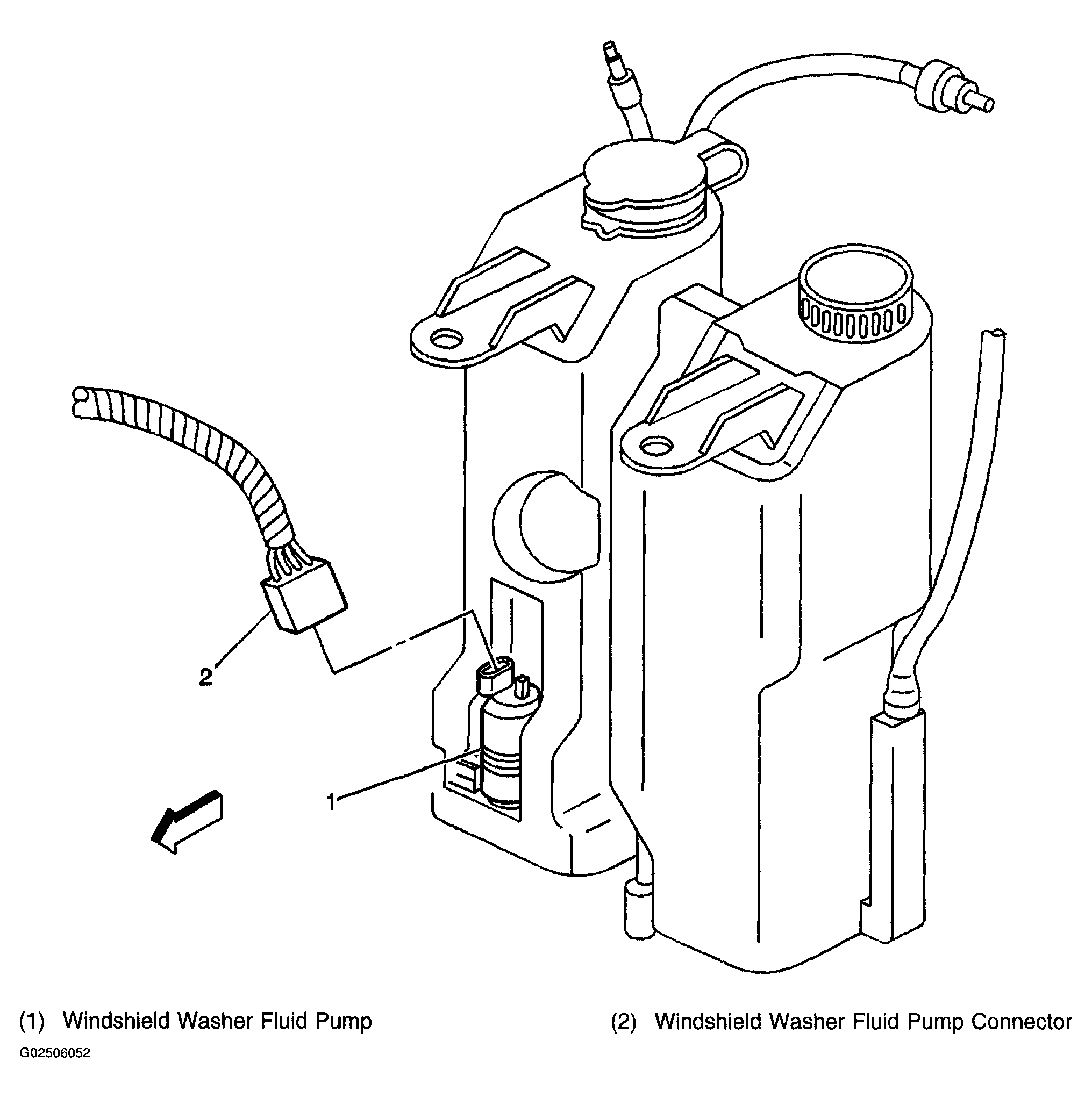

Fig 1: Windshield Coolant Recovery Reservoir Location View

Courtesy of GENERAL MOTORS CORP.

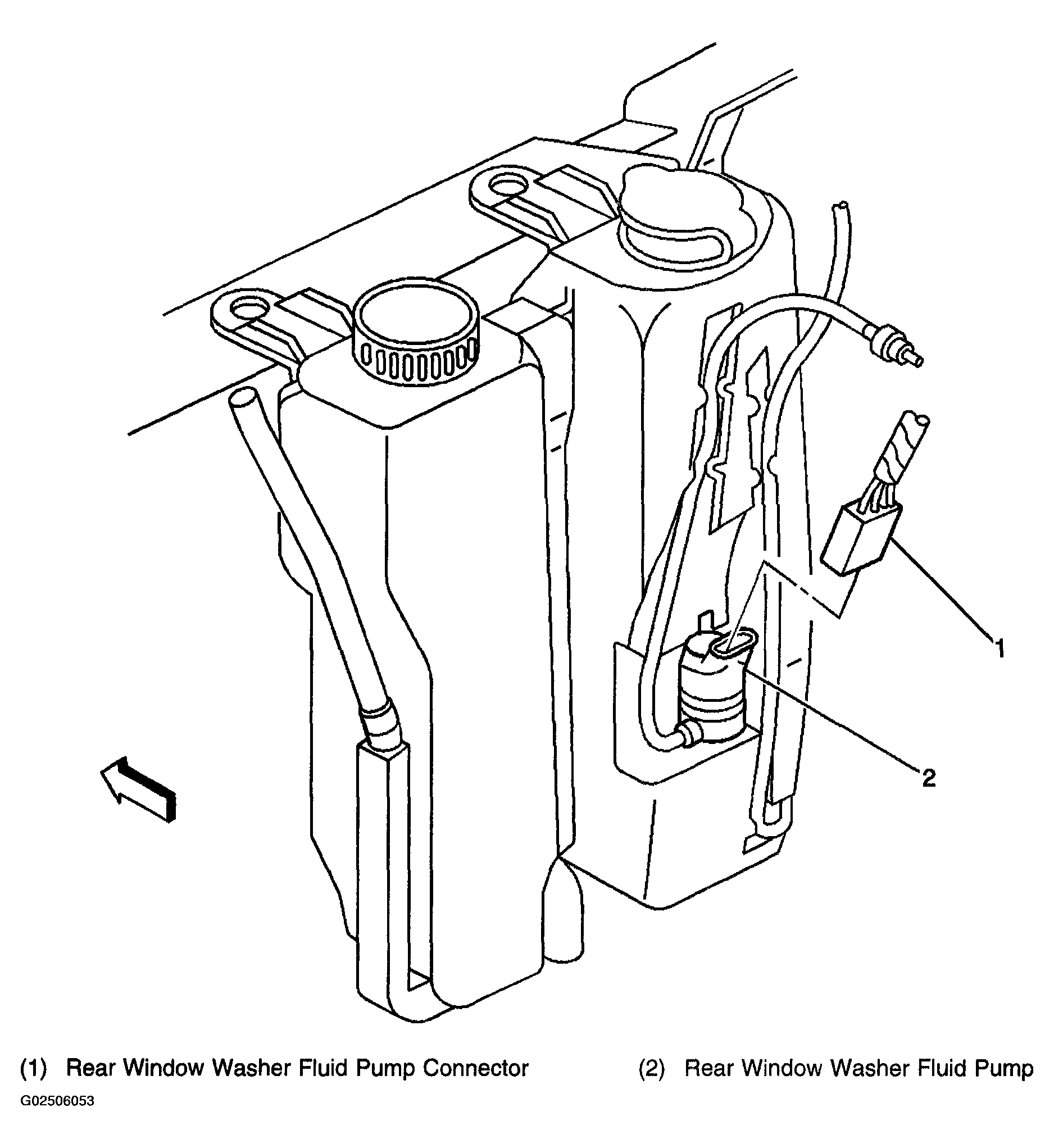

Fig 2: Rear Window Coolant Recovery Reservoir Location View

Courtesy of GENERAL MOTORS CORP.

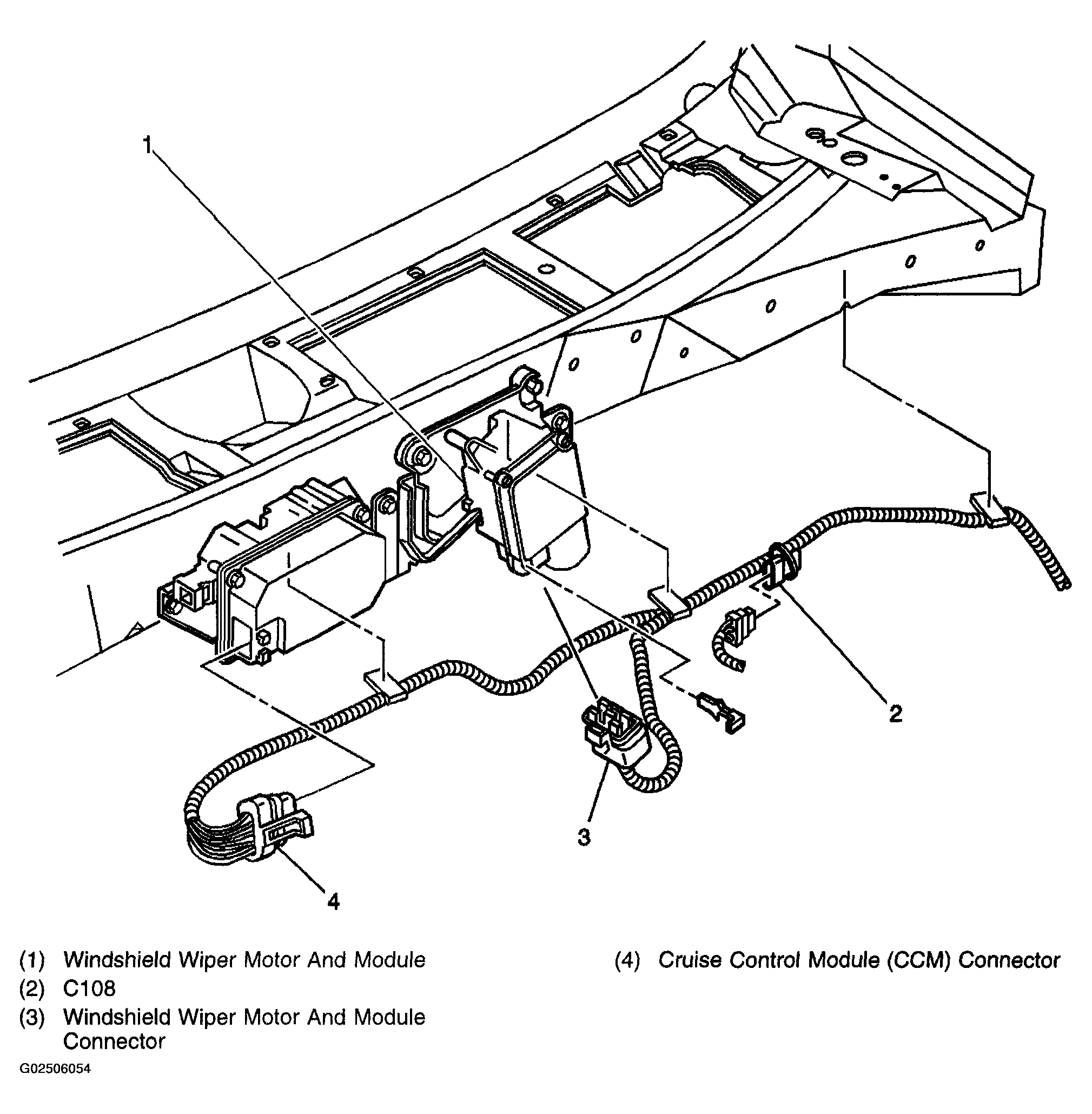

Fig 3: Cruise Control Module, And Wiper Motor Location View

Courtesy of GENERAL MOTORS CORP.

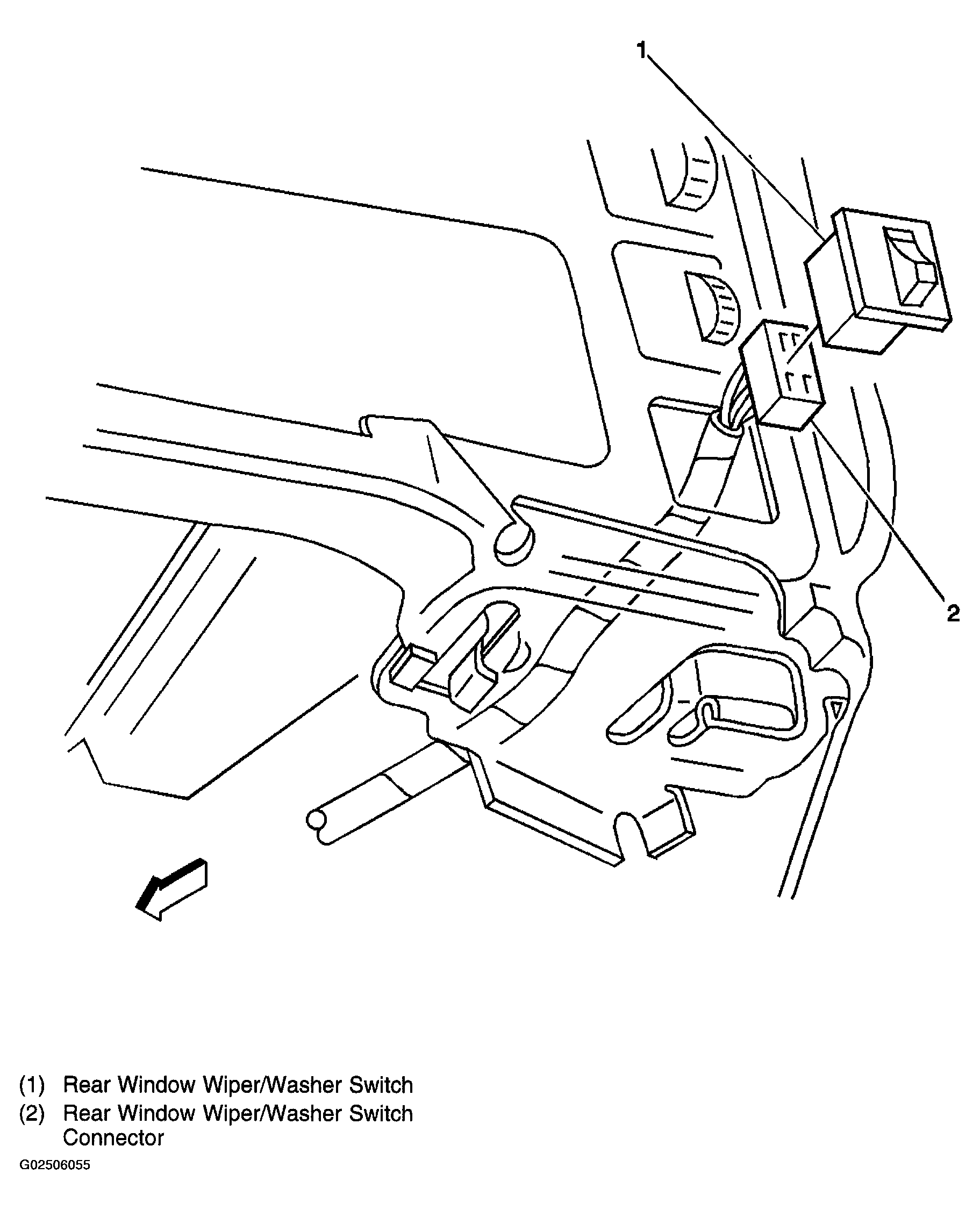

Fig 4: Rear Window Wiper/Washer Switch Location View

Courtesy of GENERAL MOTORS CORP.

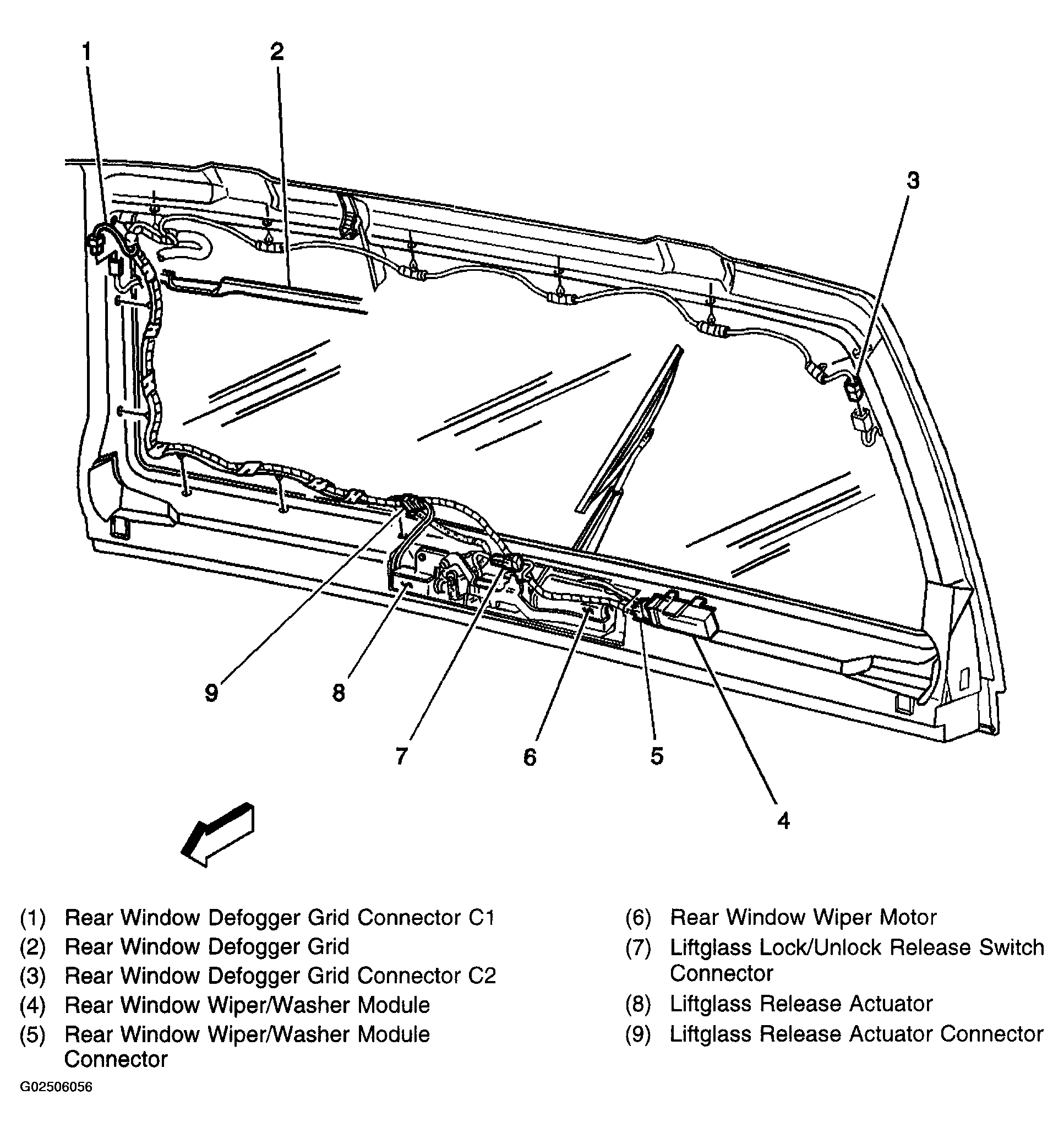

Fig 5: Liftgate Harness Location View

Courtesy of GENERAL MOTORS CORP.
