Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument panel extension trim plate.
Squeeze the fasteners on both sides of the remote compact disc player.
Pull out the remote compact disc player.
Disconnect the electrical connectors.

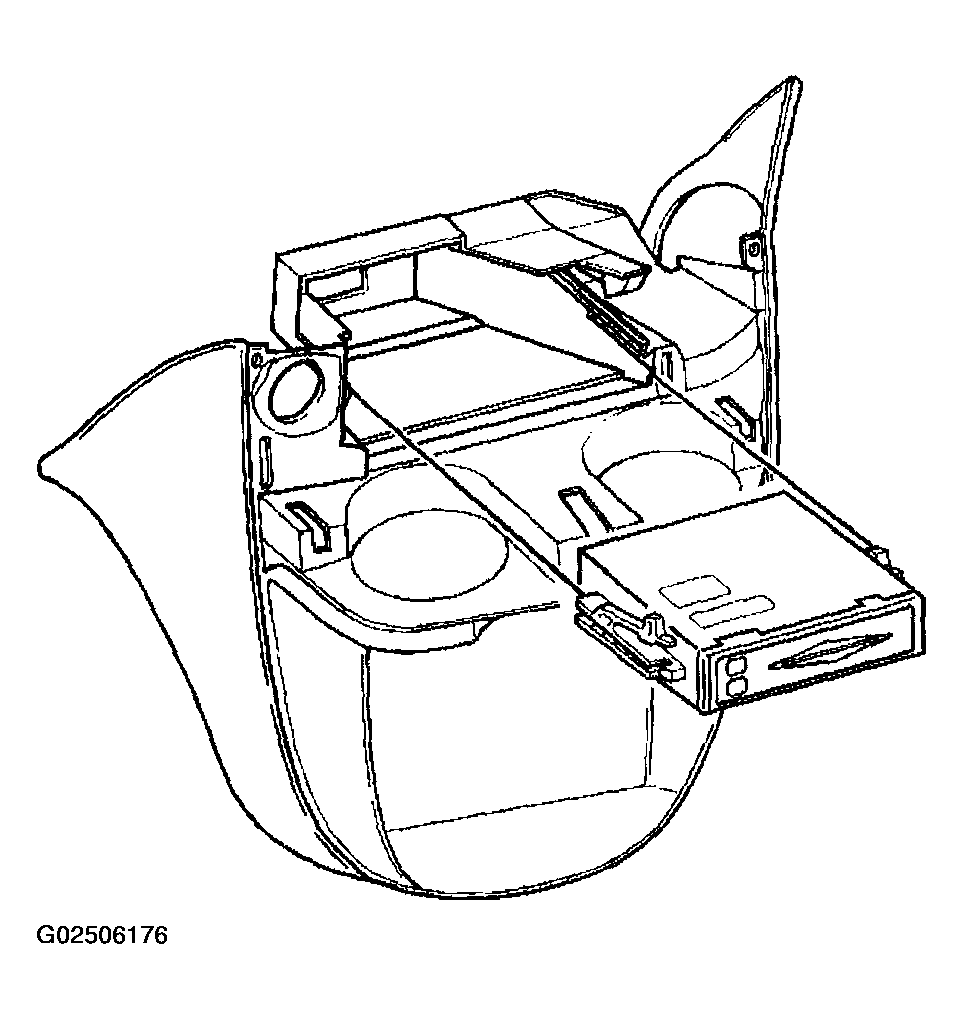

Fig 1: Remote CD Player
Courtesy of GENERAL MOTORS CORP.
