Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the mounting tabs and slide the amplifier toward the front of the vehicle in order to install the amplifier to the vehicle.

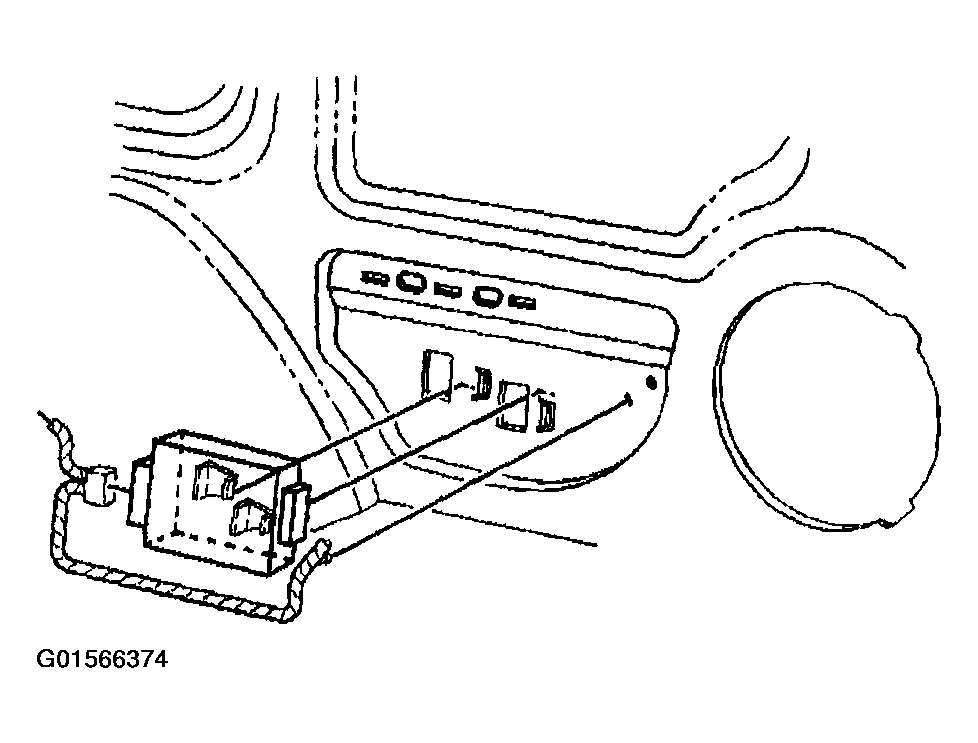

    Fig 1: Installing Amplifier
    G01566374Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the amplifier.
  3. Install the body front lower trim panel. Refer to TRIM PANEL REPLACEMENT - BODY SIDE FRONT LOWER in Interior Trim.

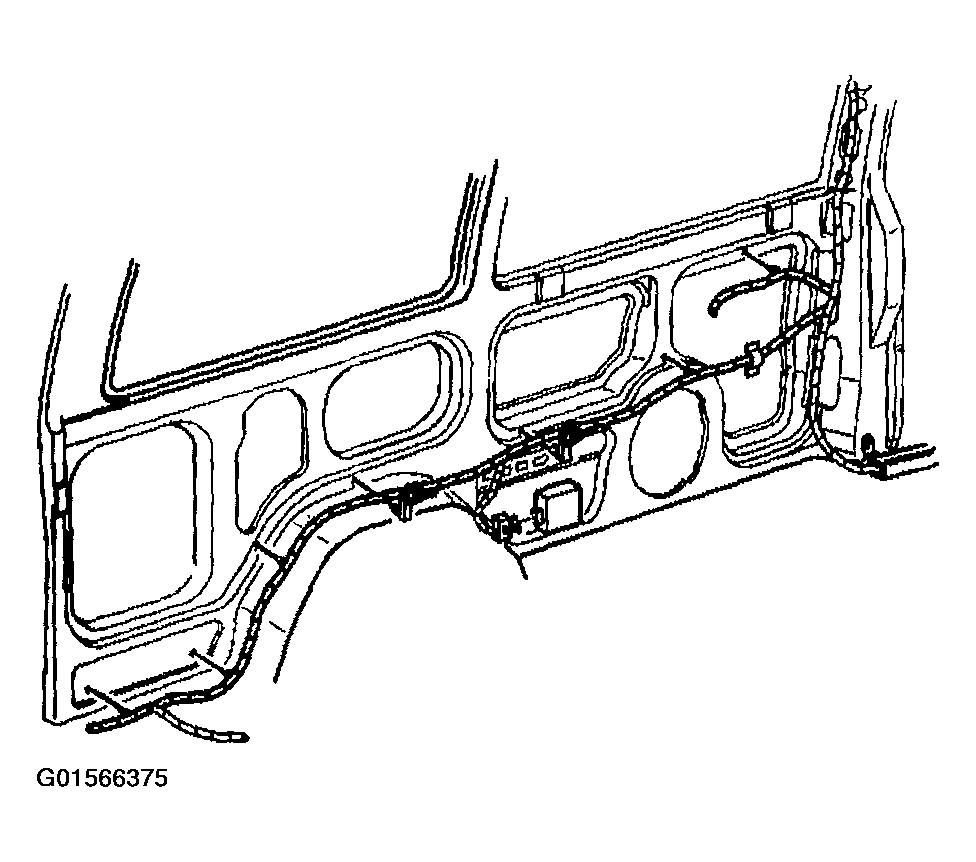

    Fig 2: View Of Amplifier & Wiring
    G01566375Courtesy of GENERAL MOTORS CORP.
