Vehicle Speed Sensor: Installation

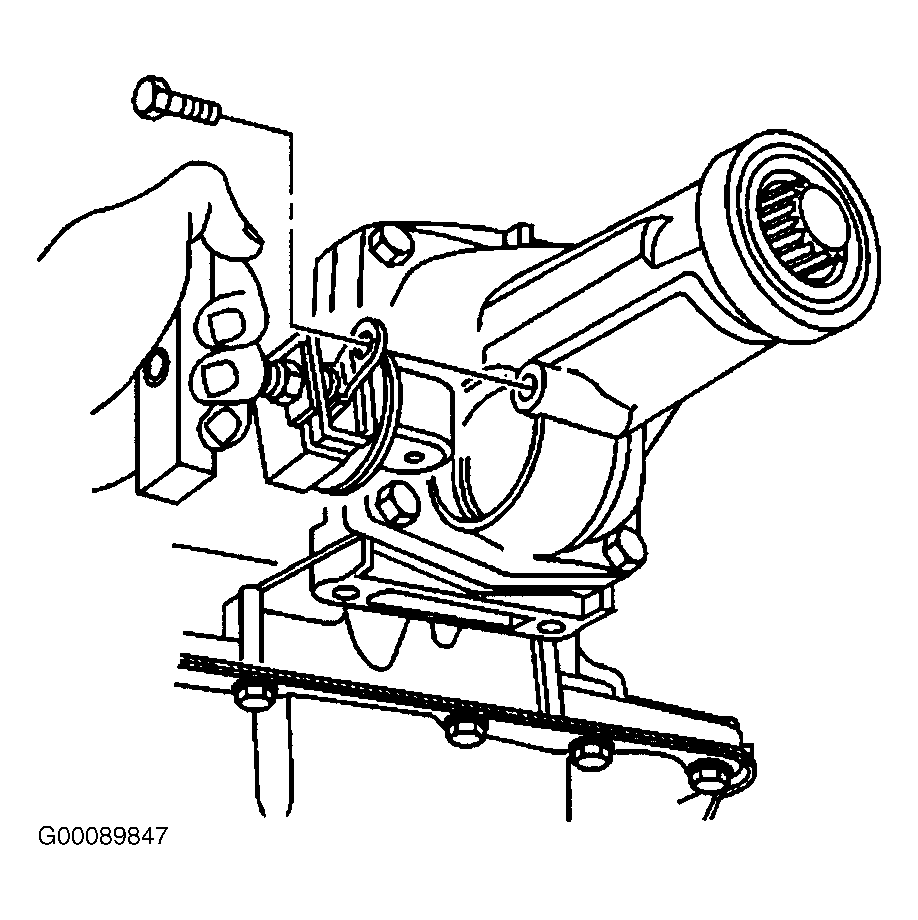

Install the new speed sensor and O-ring seal using (J-38417). See Fig 1. Coat the seal with a thin film of transmission fluid. Install the bolt. Tighten the bolt to specification. See TORQUE SPECIFICATIONS . Install the harness connector. Lower the vehicle. Fill the transmission to proper level with appropriate fluid. See LUBRICATION .
