C-1 HVAC Control Module

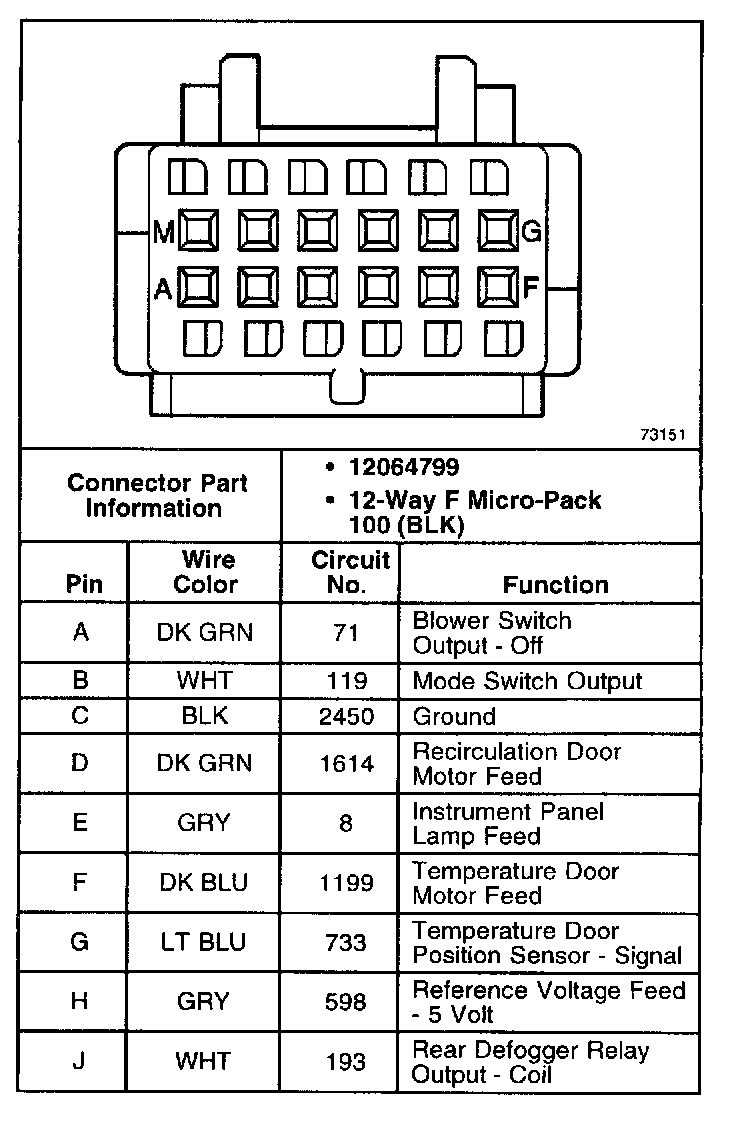

C-1 HVAC Control Module (Part 1 Of 2):
C-1 HVAC Control Module (Part 2 Of 2):
