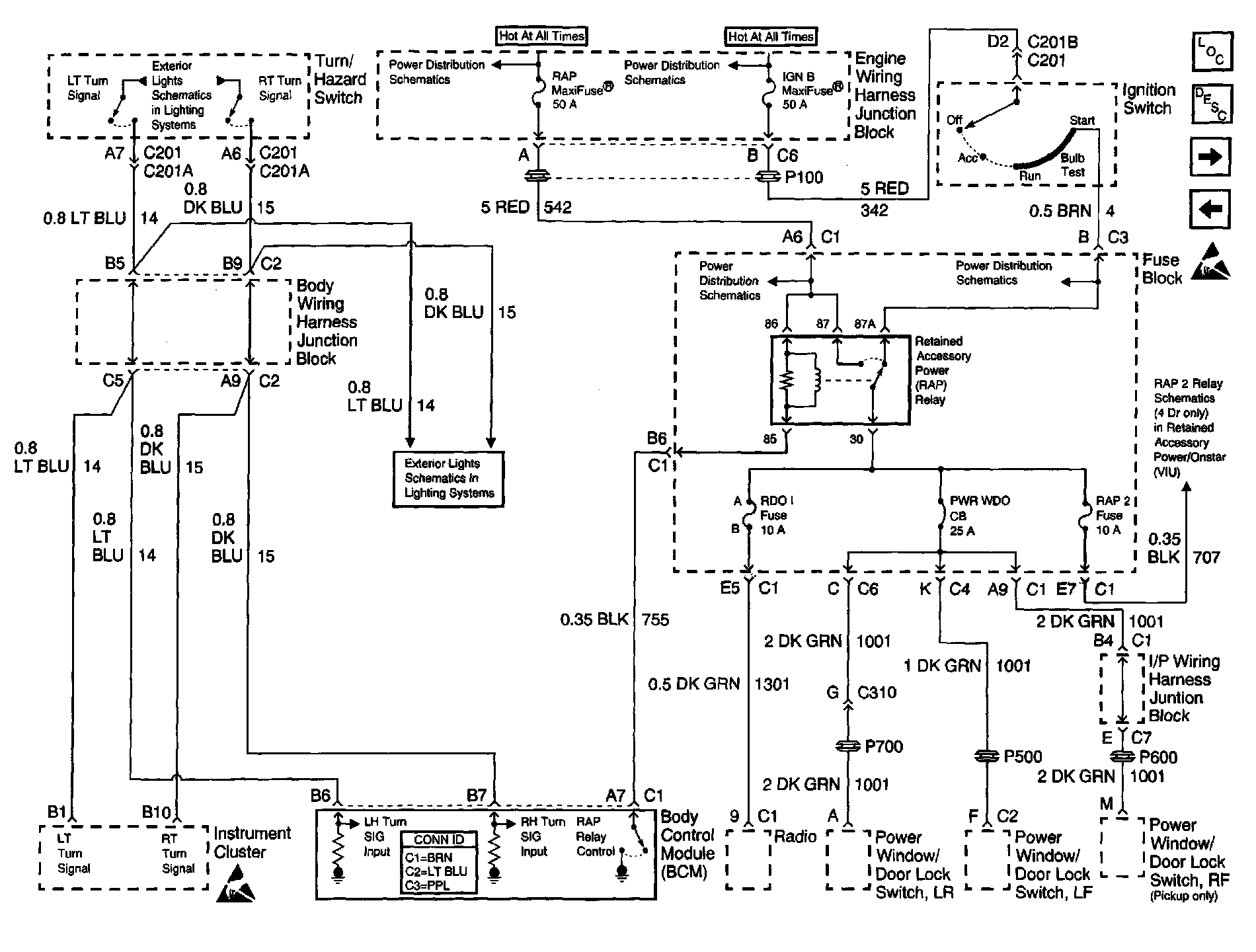

RAP Relay, Turn/Hazard Switch, IP Cluster
Body Control Module Schematics: RAP Relay, Turn/Hazard Switch, IP Cluster:
