SP205, ATC Control Module, Memory Seat/Mirror

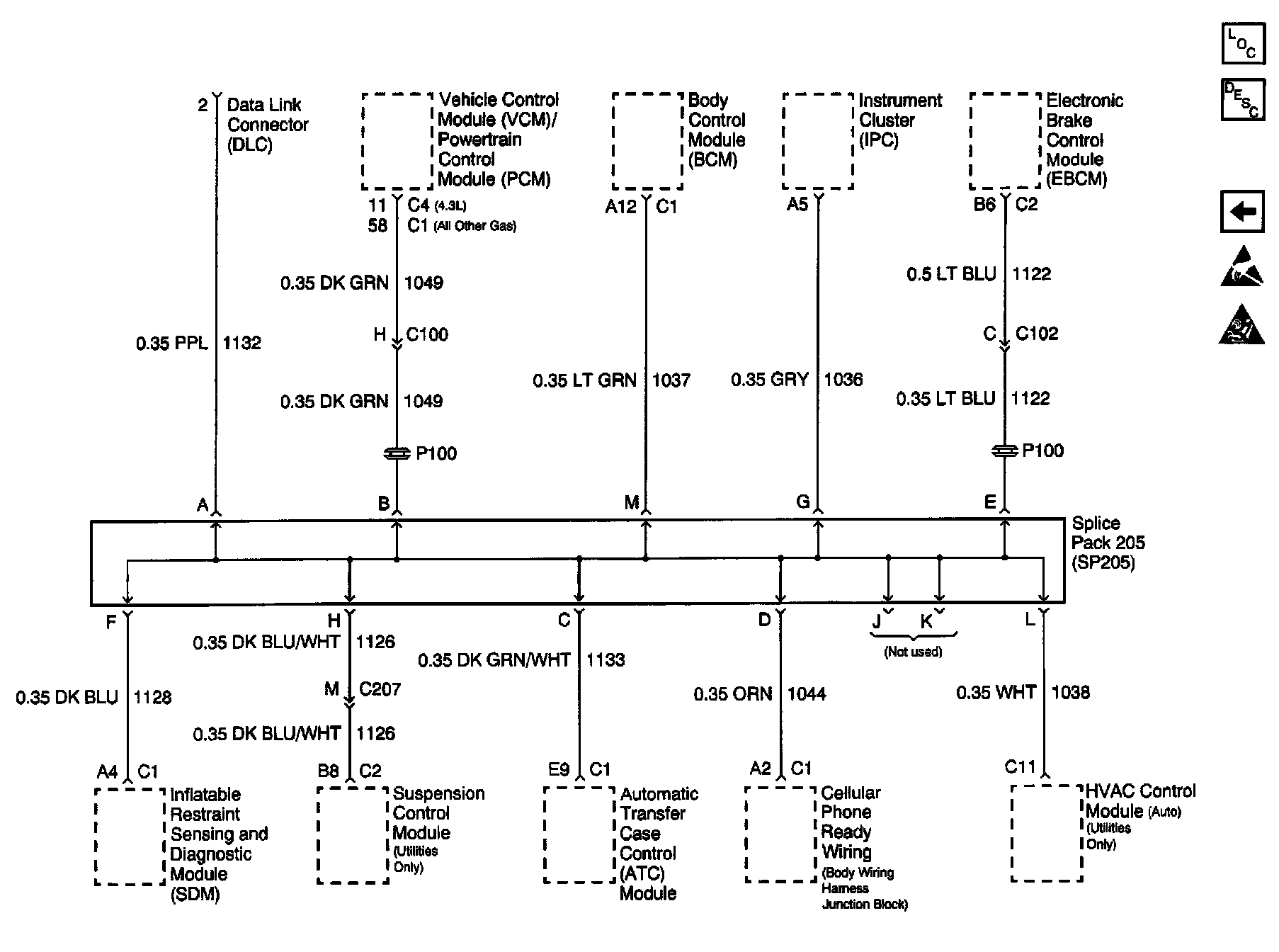

Data Link Connector (DLC) Schematics: SP205, ATC Control Module, Memory Seat/Mirror:
