Control Module, Cruise Control Module Switch, APP Sensor

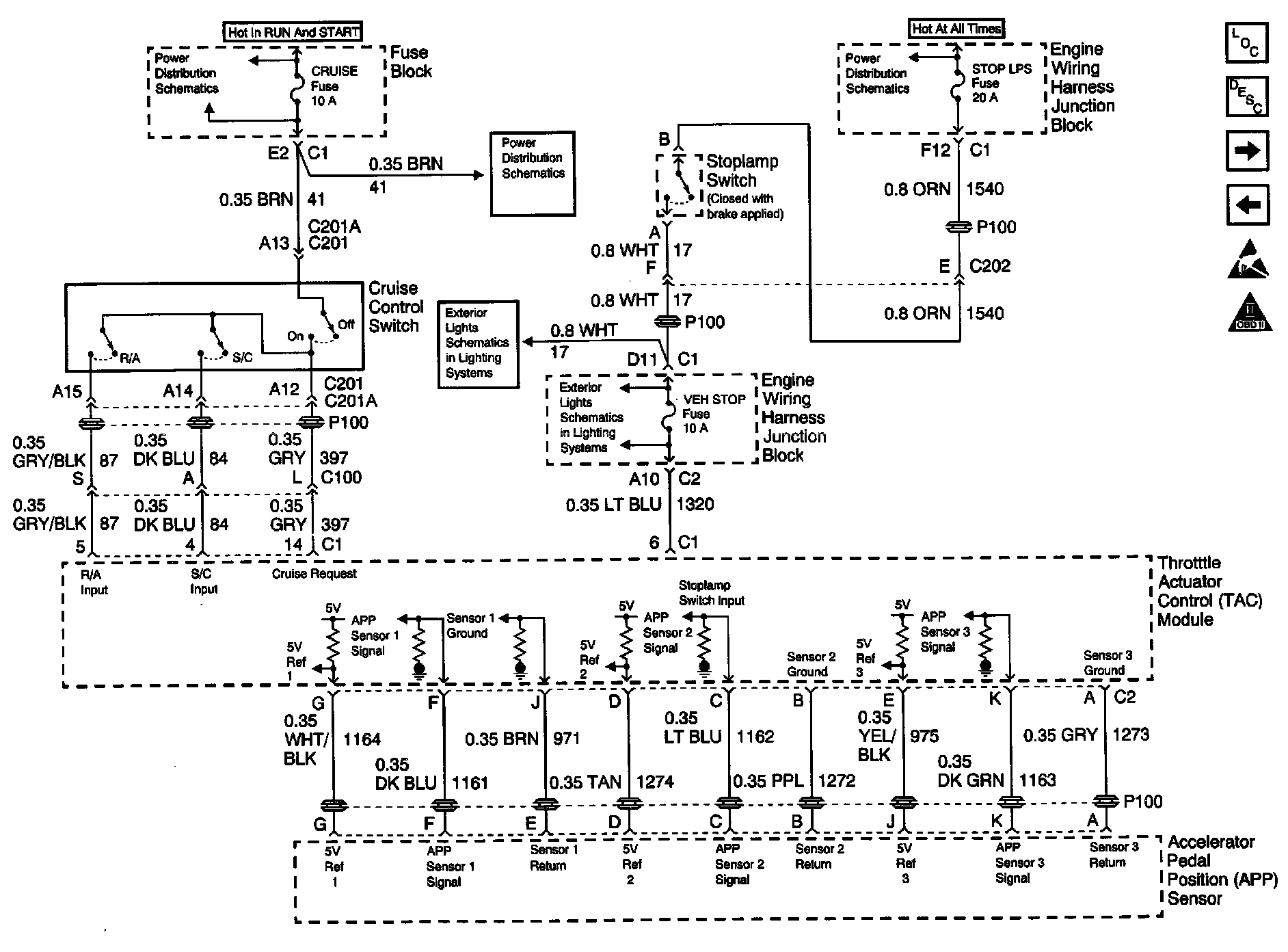

Engine Controls Schematics: Control Module, Cruise Control Switch, APP Sensor:
