PCM, TP Sensor, TAC Motor, TAC Module

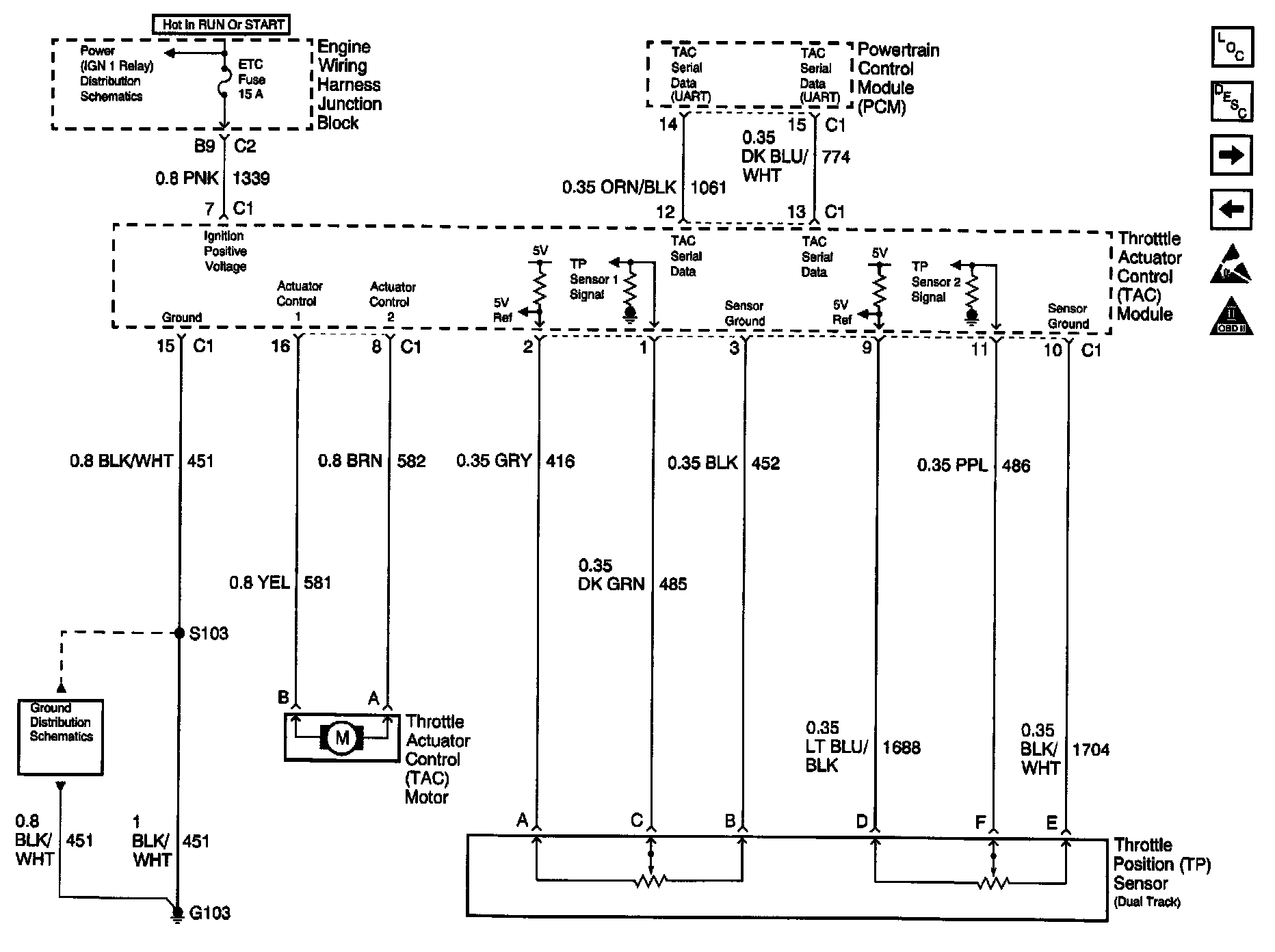

Engine Controls Schematics: PCM, TP Sensor, TAC Motor, TAC Module:
